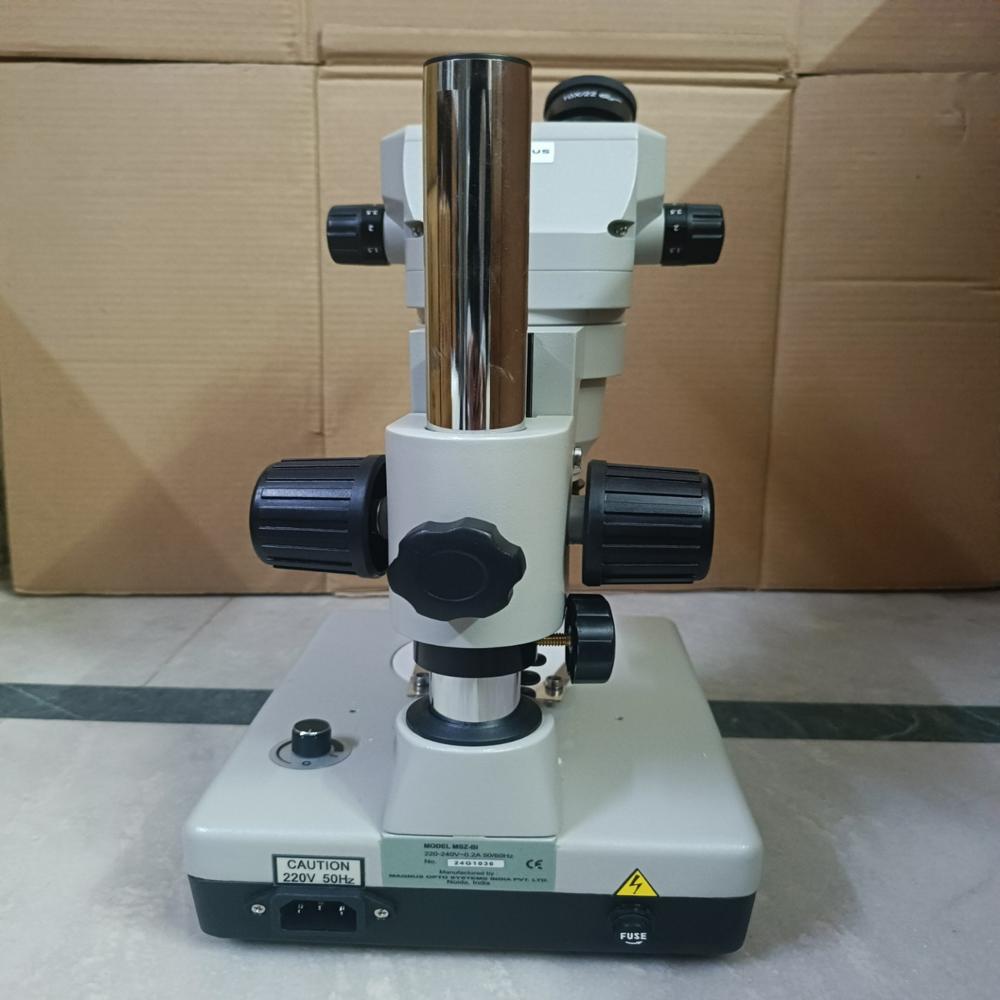

Magnus Zoom Stereo Binocular Microscope Model MSZ-BI (LED)

Send Inquiry

Request To Call Back

Magnus Zoom Stereo Binocular Microscope Model MSZ-BI (LED)

Name: Magnus Zoom Stereo Binocular Microscope Model MSZ-BI (LED)
Brand: M/S Uvsar India
Price: 81410.0 INR
Availability: InStock

Price 81410.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Magnus Zoom Stereo Binocular Microscope Model MSZ-BI (LED) Specification

Focus System
Rack and pinion with tension adjustment

View Head
Binocular, 45-degree inclined, 360-degree rotatable

Features
LED illumination, durable metal construction, anti-fungal coated optics, user-friendly design

Spare Parts
Eyepiece, stage plate, dust cover, fuse, LED bulb

Theory
Zoom Stereo Binocular Microscope

Drawtube
Binocular, 45 inclined, 360 rotatable

Focal Distance
100 mm

Magnification
Standard zoom: 7x to 45x (can be extended to 3.5x to 180x with optional lenses)

Dimensions
Base: 150 mm x 200 mm (approximate)

Focus Range
50 mm

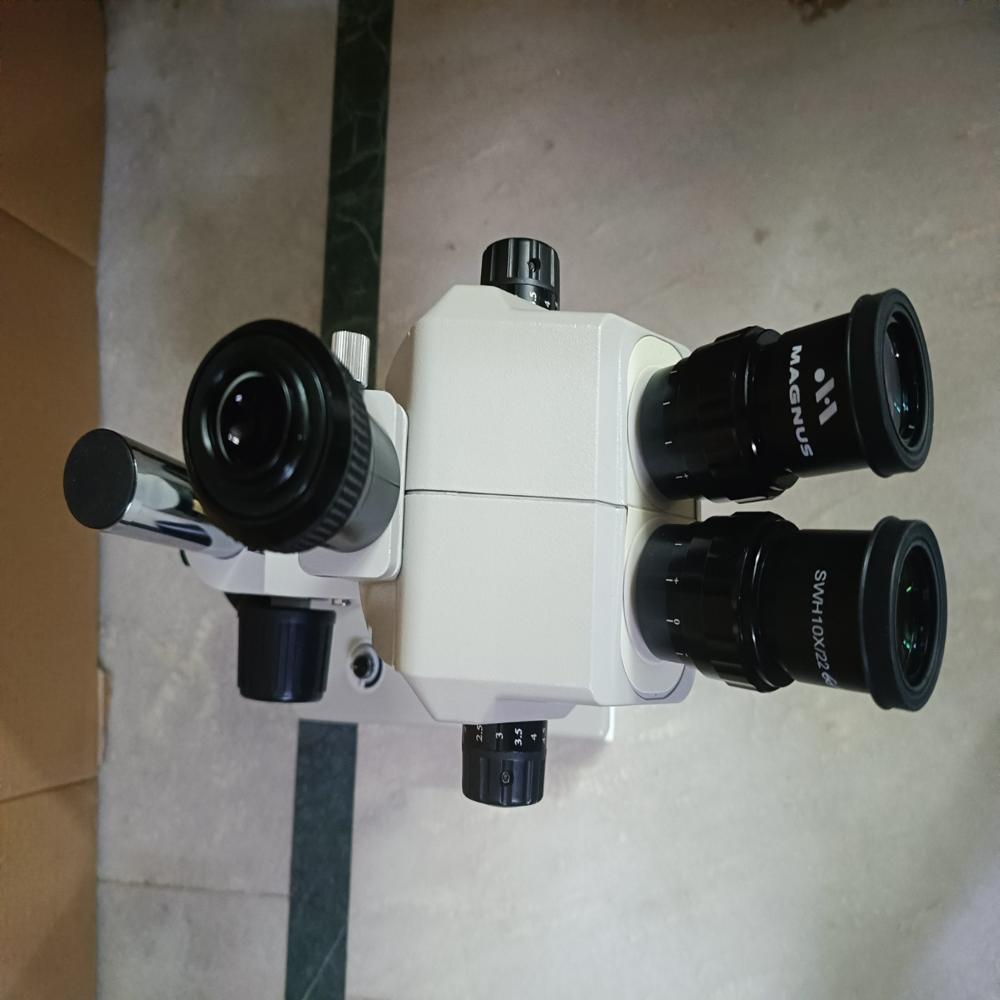

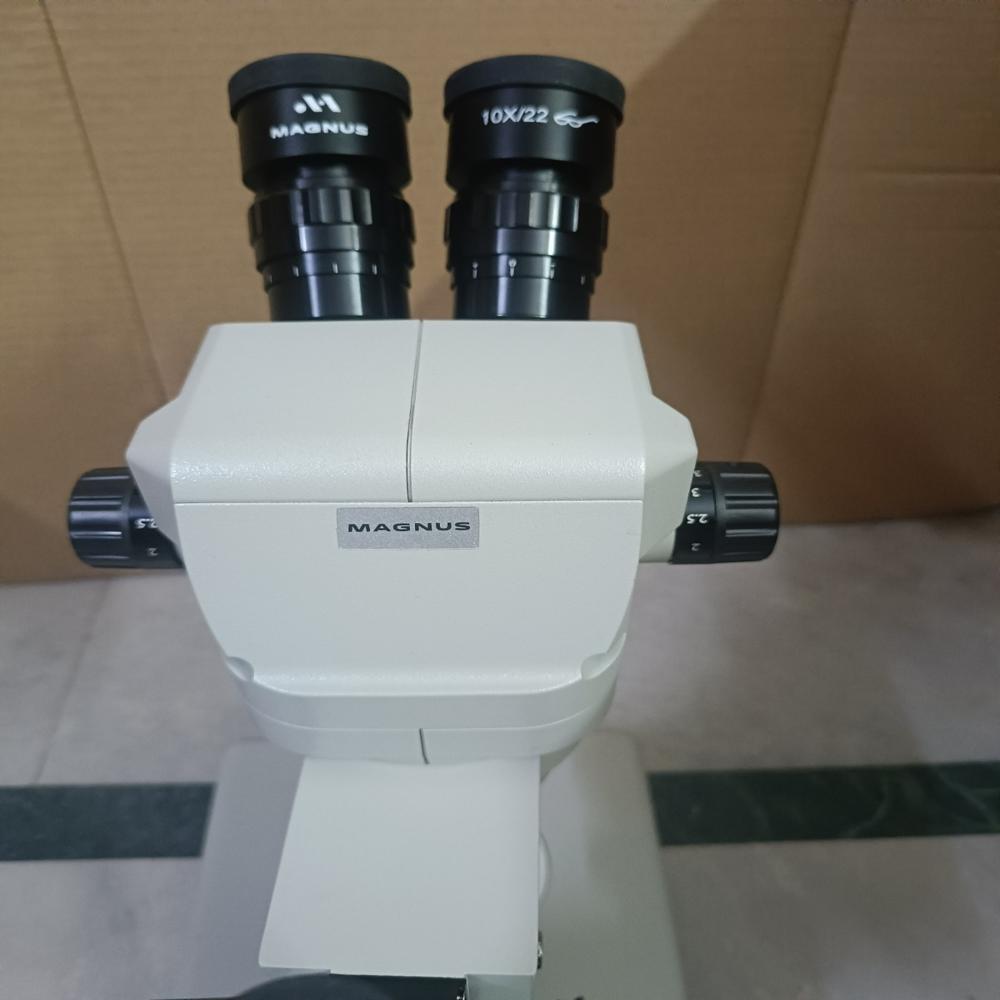

Eyepieces
WF10x/20 mm, pair with rubber eyecups

Eyepiece Tube
Diopter adjustment provided on both tubes

Illumination
LED Incident and Transmitted Light (reflective and transmitted illumination)

Coarse Adjustment Range
Provided via vertical movement rack & pinion mechanism

Working Stage
Round stage plate, frosted glass and black/white plate provided

Interpupillary Distance
Adjustable, 54-76 mm

Objective Achromatic
Zoom objective 0.7x - 4.5x (achromatic)

Light Source
LED, long lasting, cool light

Body Material
Die-cast metal body

Base Type
Heavy, robust base for extra stability

Stage Clip
Provided, for holding specimens

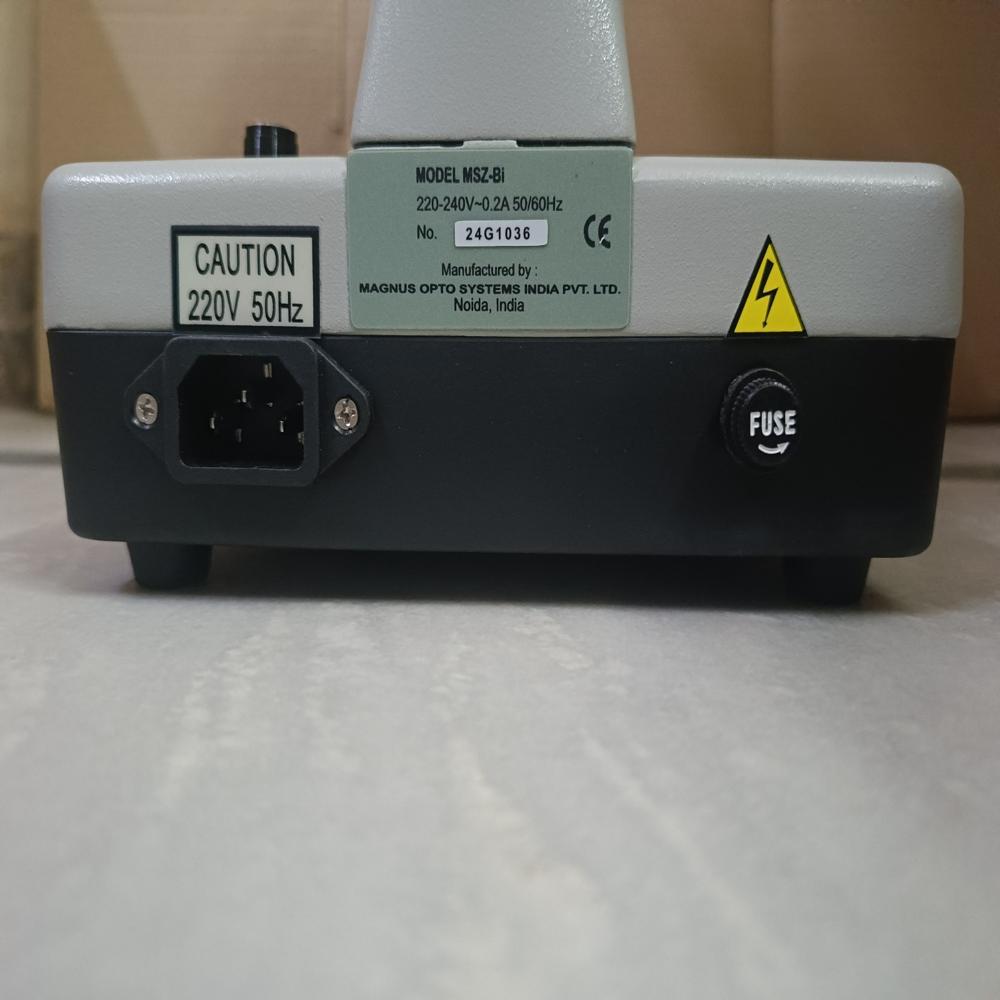

Power Supply
220V/110V AC, 50/60 Hz

Head Movement
360 rotatable head

Light Adjustment
Stepless intensity control for LED illumination

Accessories Included
Dust cover, black/white & frosted glass stage plates, instruction manual

Weight
Approx. 6 kg

Optical System
Greenough optical system for superior depth of field

Magnus Zoom Stereo Binocular Microscope Model MSZ-BI (LED) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Week

About Magnus Zoom Stereo Binocular Microscope Model MSZ-BI (LED)

Magnus Zoom Stereo Binocular Microscope Model MSZ-BI (LED) same as 'MSZ-BI' but with LEDlight source instead of standard light source.

Features : It has a large visual field & high diopter. It can be used extensively for medical applications, Inspection of

gems, electronic components & precision machinery components.

Versatile Greenough Optical System

The innovative Greenough optical system in the MSZ-BI provides exceptional depth of field and precise stereo imaging, making it ideal for examining specimens in three dimensions. Achromatic zoom objectives offer a magnification range of 7x-45x, ensuring that even fine details are clearly visible. The system supports a wide field of view, making it suitable for various observation needs.

Enhanced Illumination & User Comfort

This microscope employs dual LED incident and transmitted light sources, providing both reflective and transmitted illumination. The stepless intensity control lets users fine-tune brightness for optimal observation. The comfortable 45-degree inclined binocular head is 360-degree rotatable, and with adjustable interpupillary distance and diopter adjustment, prolonged use remains fatigue-free.

Built to Last with Comprehensive Accessories

Constructed from die-cast metal and featuring a heavy, robust base, the MSZ-BI is sturdy and built for long-term reliability. Anti-fungal coated optics and included accessories (black/white and frosted stage plates, dust cover, extra fuse) further enhance its value. The microscope's durable design supports both routine and demanding applications.

FAQ's of Magnus Zoom Stereo Binocular Microscope Model MSZ-BI (LED):

Q: How do I adjust the magnification on the Magnus MSZ-BI microscope?

A: You can adjust the magnification using the zoom objective, which offers a continuous range from 0.7x to 4.5x (7x to 45x with WF10x eyepieces). For higher or lower magnifications, optional auxiliary lenses can be added to extend the range from 3.5x to 180x.

Q: What lighting options are available on this microscope?

A: The MSZ-BI features both incident (top) and transmitted (bottom) LED illumination, providing cool, long-lasting, and energy-efficient light. You can control the intensity steplessly to best suit your specimen and avoid glare or overheating.

Q: Where can I use the Magnus MSZ-BI microscope?

A: Designed for use in laboratories, educational institutions, research facilities, and quality-control environments, the MSZ-BI is suitable anywhere high-quality stereo imaging and robust performance are required.

Q: What benefits does the Greenough optical system provide?

A: The Greenough optical system delivers superior depth of field and excellent stereo perception, allowing users to observe three-dimensional specimens in high clarity. It also reduces image distortion and ensures even illumination.

Q: How is focusing achieved on the MSZ-BI?

A: Focusing is accomplished via a rack and pinion mechanism with coarse adjustment and tension control, offering a smooth 50 mm focus range for precise vertical movement. This ensures sharp, detailed observation of various specimen thicknesses.

Q: Which accessories come with the microscope and what is their use?

A: The microscope includes a dust cover for protection, black/white and frosted glass stage plates for contrast and lighting effects, rubber eyecups, and an instruction manual for set-up and operation. Spare parts like fuses and LED bulbs are also supplied for continued usability.

Q: What makes this microscope durable and suited for long-term use?

A: Its die-cast metal body, heavy stable base, anti-fungal coated optics, and availability of spare parts such as eyepieces and stage plates, ensure that the microscope withstands daily wear and remains reliable over time.
