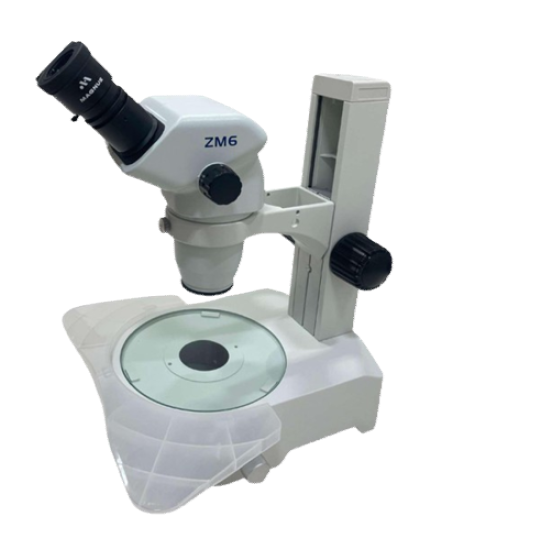

Send InquiryMagZoom ZM 6 for IVF/ Nematodes/ Zebra Fish BINOCULAR
Price 143070.0 INR/ Piece
MOQ : 1 Piece
MagZoom ZM 6 for IVF/ Nematodes/ Zebra Fish BINOCULAR Specification
- Focus System
- Coarse & Fine focus mechanism
- View Head
- Binocular head
- Features
- Sharp 3D images with large field of view, ergonomic handling, anti-fungal optical coating
- Spare Parts
- Supplied with dust cover, spare LED bulb, fuse, and power cable
- Theory
- Stereo Zoom Binocular Microscope, suitable for IVF, Nematodes, and Zebra Fish applications
- Drawtube
- Binocular
- Focal Distance
- 100mm (standard working distance)
- Magnification
- 7x to 45x (with supplied objectives and eyepieces)
- Dimensions
- Approx. 320 x 250 x 420 mm (L x W x H)
- Focus Range
- Up to 45mm
- Eyepieces
- Widefield 10x (Pair)
- Eyepiece Tube
- Inclined at 45 for comfort, 360 rotatable
- Illumination
- Incident and transmitted LED light, with intensity control
- Coarse Adjustment Range
- 45mm
- Fine Adjustment Range
- Precise focusing provision
- Working Stage
- Frosted glass stage plate & black/white stage plate ( 95mm)
- Interpupillary Distance
- Adjustable 55-75mm
- Objective Achromatic
- 0.7x to 4.5x continuous zoom objective
- Light Source
- LED, both transmitted and reflected (incident)
- Stage Movement
- Manual; Left/Right and Forward/Backward
- Operating Temperature
- 0C to 40C
- Application
- Ideal for in-vitro fertilization (IVF), nematode research, zebra fish screening, general biology and life science studies
- Body Material
- Robust metal frame, powder coated
- Diopter Adjustment
- Provided on both eyepiece tubes
- Power Supply
- Universal input 100-240V AC, 50/60Hz
MagZoom ZM 6 for IVF/ Nematodes/ Zebra Fish BINOCULAR Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 5 Week
About MagZoom ZM 6 for IVF/ Nematodes/ Zebra Fish BINOCULAR
MagZoom ZM 6 for IVF/ Nematodes/ Zebra Fish
Binocular Stereozoom Microscope Model ZM6 consisting of zoom binocular observation tube
inclined at 45 degrees with IPD of 54-76 mm, +/- 5 mm adjustable diopter , zoom zatio of 1: 6.7,
with built in 1x objective, transmitted light of 6V20W halogen light with reflector mirror & glass plate,
paired widefield eyepiece of 10x/22 mm, Magnification: 6.7x45x (with built in 1x objective & paired
eyepiece of 10x) with continuous zoom , Rack & pinion Coarse focusing drive & dust cover.
Optimized Versatility for Specialized Applications
Designed for in-vitro fertilization (IVF), nematode research, and zebra fish studies, the MagZoom ZM 6 ensures users encounter maximum flexibility and scientific precision. It delivers sharp, three-dimensional images with a broad field of view, ideal for meticulous sample observation required in advanced biological research.
Ergonomic Excellence and User Comfort
Featuring inclined eyepiece tubes (45) and adjustable interpupillary distance (55-75mm), this microscope minimizes user fatigue during extended observation sessions. The sturdy, powder-coated metal body, coupled with a user-friendly coarse and fine focus system, ensures seamless operation even through extended research projects.
FAQ's of MagZoom ZM 6 for IVF/ Nematodes/ Zebra Fish BINOCULAR:
Q: How does the manual stage movement of the MagZoom ZM 6 enhance specimen examination?
A: The manual stage movement, which allows both left/right and forward/backward adjustments, lets users precisely position specimens for thorough examination. This is especially valuable in applications like IVF or nematode observation where detailed sample manipulation is crucial.Q: What makes the MagZoom ZM 6 suitable for IVF, nematode, and zebra fish research?
A: With a magnification range of 7x to 45x, high-quality widefield eyepieces, incident and transmitted LED illumination, and a sharp 3D image, this microscope supports the meticulous screening needed in IVF, nematode, and zebra fish research.Q: When should I use the incident versus transmitted LED light on the microscope?
A: Incident (reflected) LED illumination is ideal for viewing opaque or surface details of specimens, while transmitted illumination is recommended for transparent samples. Both light types have adjustable intensity to match your specific observation needs.Q: Where can the MagZoom ZM 6 be operated in terms of temperature?
A: The microscope operates reliably in laboratory environments with temperatures ranging from 0C to 40C, ensuring consistent performance across most standard research settings.Q: What is the process for adjusting focus and diopter settings on the ZM 6?
A: Focus is achieved through both coarse and fine mechanisms, with a coarse adjustment range of 45mm and precise fine-focus control. Diopter adjustments on both eyepiece tubes help users tailor the focus to their individual vision, enhancing clarity and comfort.Q: What spare parts and accessories are included with the MagZoom ZM 6?
A: Each unit is supplied with a dust cover, a spare LED bulb, a fuse, and a power cable, ensuring continuous operation and easy maintenance in laboratory environments.
