Magnus Laboratory Binocular Microscope Model MLX-B Plus (Semi Plan

Send Inquiry

Request To Call Back

Magnus Laboratory Binocular Microscope Model MLX-B Plus (Semi Plan

Name: Magnus Laboratory Binocular Microscope Model MLX-B Plus (Semi Plan
Brand: M/S Uvsar India
Price: 39705.0 INR
Availability: InStock

Price 39705.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Magnus Laboratory Binocular Microscope Model MLX-B Plus (Semi Plan Specification

View Head
Binocular, 360 rotatable, 45 inclined

Features
Semi-Plan objectives, ergonomic design, built-in mechanical stage, anti-fungal coated optics, suitable for educational and clinical laboratories

Spare Parts
Replacement bulbs, fuse, lens cleaning kit, dust cover, immersion oil bottle

Focus System
Coarse and fine coaxial focusing with tension adjustment

Theory
Compound Binocular Microscope with Semi-Plan optics for laboratory applications

Drawtube
Binocular, 360 rotatable, 45 inclined

Sensor
Not applicable (Optical Microscope)

Resolution
Up to 1000x total magnification (optical)

Interface
Mechanical stage controls, standard optical observation

Frame Rate
Not applicable (No camera in standard configuration)

Focal Distance
Free working distance depends on objective, typically 0.2-13 mm

Magnification
40x, 100x, 400x, 1000x (using Semi Plan 4x, 10x, 40x, 100x objectives and 10x eyepieces)

Dimensions
Approx. 370 x 195 x 235 mm (HxWxD)

Focus Range
Coarse and fine adjustments, typically 50 mm total travel

Eyepieces
Pair of wide-field WF10x/20mm

Eyepiece Tube
Binocular, 45 inclined, 360 rotatable

Illumination
Built-in LED or Halogen lamp illumination, adjustable intensity

Coarse Adjustment Range
Approximately 35 mm movement

Fine Adjustment Range
0.002 mm per division

Working Stage
Built-in mechanical stage, 135 x 120 mm, double slide holder, co-axial X-Y movement

Still Image Capture Resolution
Not applicable (Optical only)

Video Capture Resolution
Not applicable (Optical only)

Image Format
Visual/optical through eyepieces (no digital output by default)

Interpupillary Distance
Adjustable 48 mm to 75 mm

Objective Achromatic
Semi-Plan 4x, 10x, 40x (S), 100x (S, Oil)

Condenser
NA 1.25 Abbe condenser with iris diaphragm and filter holder

Light Source
6V/20W Halogen lamp or LED, with intensity control

Usage
Ideal for pathology, biology, medical labs, and teaching institutions

Safety
Fuse protected illumination

Filters
Blue, green, yellow filters included

Body Material
Sturdy die-cast aluminum with corrosion-resistant finish

Color
White and black professional finish

Nosepiece
Reversed quadruple revolving nosepiece

Stage Movement
Co-axial X-Y controls, Range: 70 x 30 mm

Diopter Adjustment
Provided on left eyepiece tube

Magnus Laboratory Binocular Microscope Model MLX-B Plus (Semi Plan Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Week

About Magnus Laboratory Binocular Microscope Model MLX-B Plus (Semi Plan

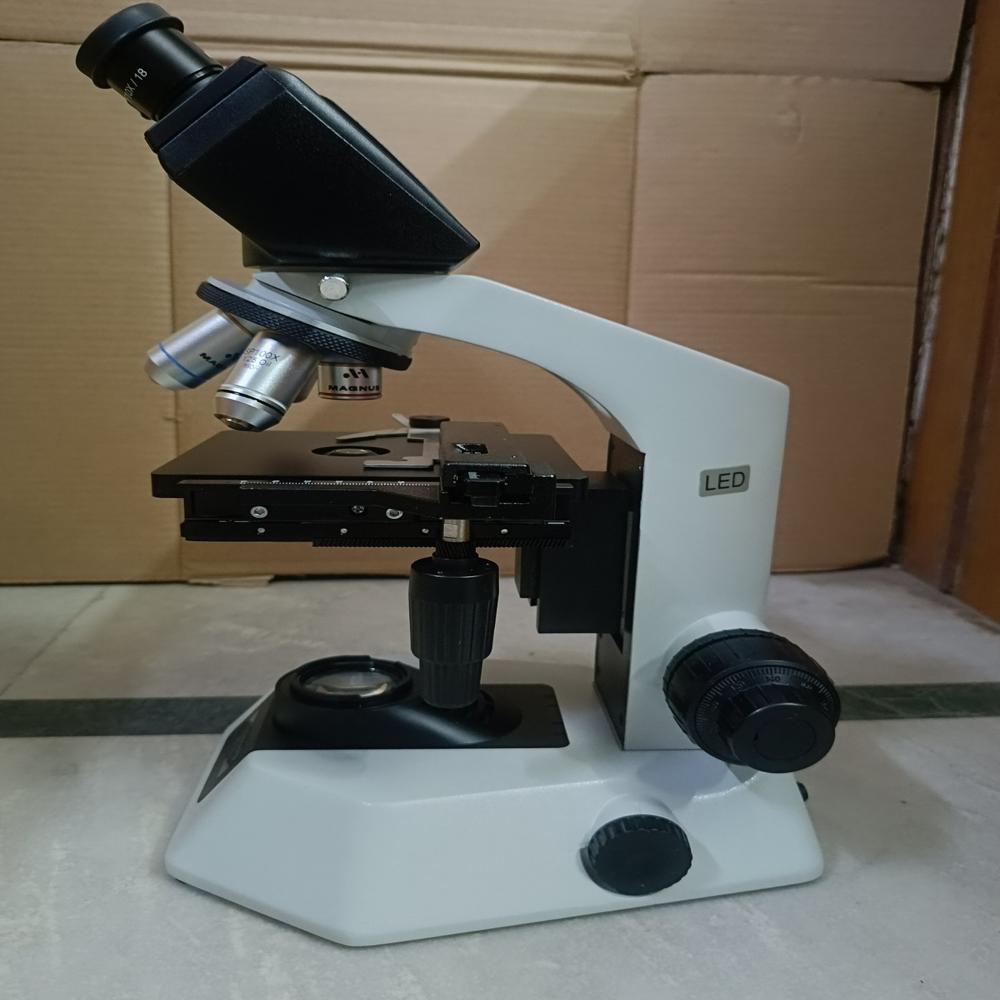

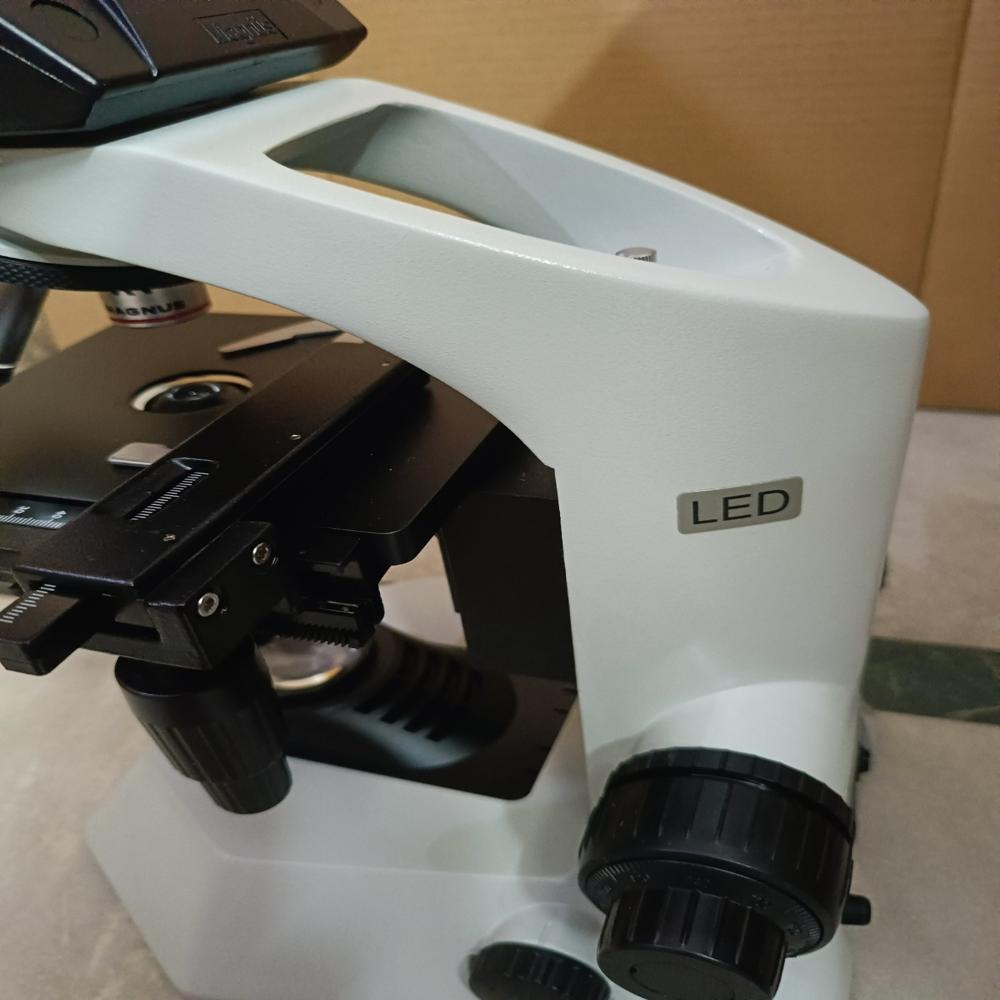

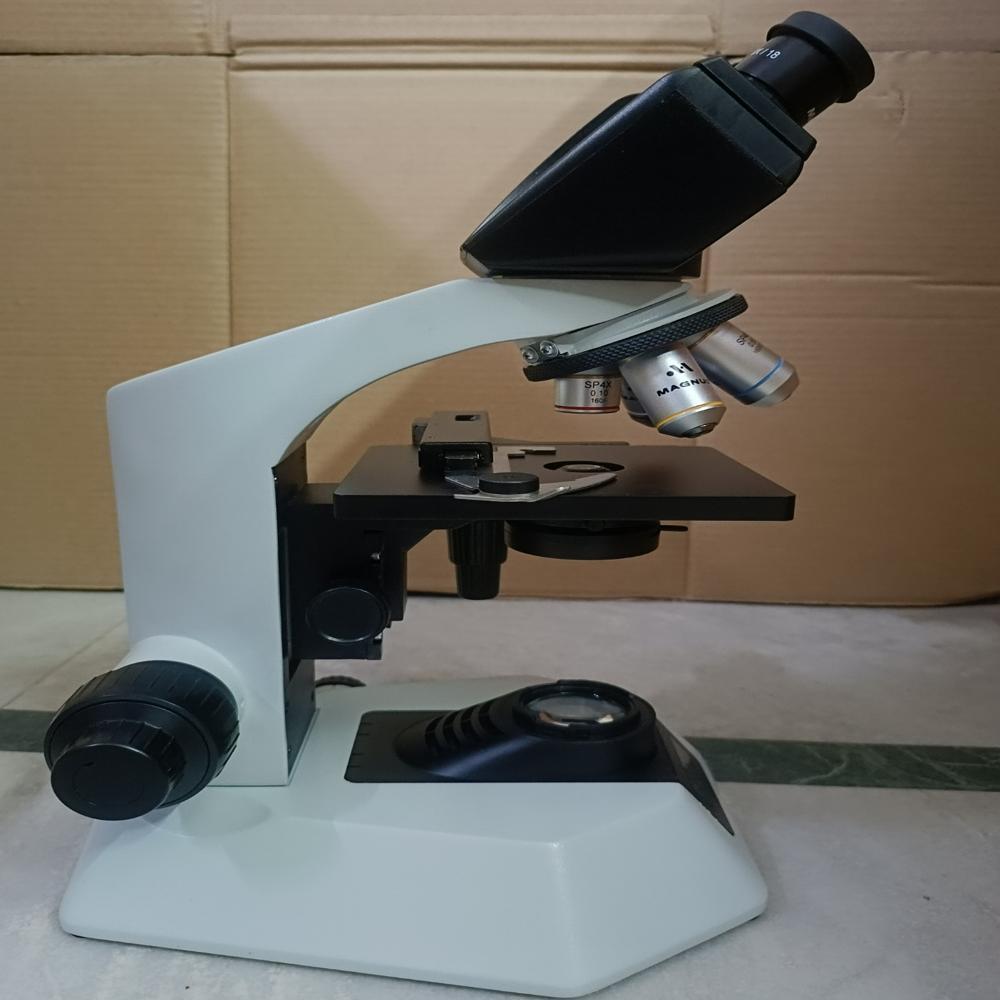

Magnus Laboratory Binocular Microscope Model MLX-B Plus (Semi Plan) standard microscope set

complete with built-in 6V20W halogen light illuminator with regular power supply, quadruple ball

bearing nosepiece, co-axial coarse and fine focusing controls, high resolution Semi-Plan Achromat

objectives 4x, 10x, 40x (spring) and 100x (spring, oil immersion), 360deg rotatable inclined binocular

tube, fungus resistant optics for tropical use, widefield paired eyepiece HWF10x (F.N.18), right hand

control co-axial low drive mechanical stage and rack & pinion focusable Abbe condenser 0.9/1.25

N.A with iris diaphragm complete set.

Ergonomic and Durable Construction

The MLX-B Plus microscope features a robust die-cast aluminum body for ultimate durability and long service life. Its professional white and black finish is not only aesthetically pleasing but also resistant to corrosion, ensuring reliable performance in busy laboratory settings.

Advanced Optics for Precision

Equipped with semi-plan achromatic objectives and wide-field eyepieces, this microscope delivers sharp image clarity throughout the viewing field. The anti-fungal coated optics preserve lens quality, making it ideal for humid environments and long-term use in educational and research labs.

Versatile Illumination and Stage Control

Selectable LED or halogen illumination with adjustable intensity provides versatility for various specimens. The built-in mechanical stage (135 x 120 mm) with co-axial X-Y controls guarantees smooth, accurate maneuvering of slides, facilitating ease of operation during extended observation sessions.

FAQ's of Magnus Laboratory Binocular Microscope Model MLX-B Plus (Semi Plan:

Q: How do I adjust the focus on the MLX-B Plus microscope?

A: The MLX-B Plus is equipped with both coarse and fine coaxial focusing knobs, enabling rapid and precise focus adjustments. The coarse focus provides approximately 35 mm of movement, while the fine adjustment allows 0.002 mm per division, ensuring accuracy when viewing specimens at high magnification.

Q: What is the recommended usage for this microscope?

A: This model is ideally suited for applications in pathology, biology, medical laboratories, and educational institutions. Its semi-plan optics and ergonomic design make it suitable for both routine examination and advanced study of biological samples.

Q: When should I utilize the included colored filters?

A: The blue, green, and yellow filters included with the microscope enhance contrast and visibility of specific sample features under different lighting conditions. Use them as needed when examining stained slides or when better differentiation is required between structures.

Q: Where can this microscope be installed or used?

A: This microscope is designed for benchtop use in laboratory environments such as hospitals, research centers, universities, and schools. Its compact dimensions (approx. 370 x 195 x 235 mm) allow convenient placement on standard laboratory work surfaces.

Q: What safety features does the MLX-B Plus provide?

A: The illumination system is fuse protected, which safeguards the microscope's internal electrical components from surges or short circuits. This feature ensures both user safety and instrument longevity.

Q: How do I maintain and clean the microscope?

A: Routine maintenance involves cleaning the optics with the provided lens cleaning kit and covering the microscope with the dust cover when not in use. Replacement bulbs and fuses are accessible for ongoing service, ensuring continuous operation.

Q: What benefits do the semi-plan objectives offer?

A: Semi-plan objectives provide a higher degree of flatness across the visual field compared to standard objectives. This ensures clearer and more uniform images from edge to edge, improving observation quality during detailed laboratory work.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Binocular Microscope Category

MagStereo FM 24 (Halogen)

Price 22065.0 INR / Piece

Minimum Order Quantity : 1 Piece

Drawtube : Trinocular

Theory : Other, Stereo Microscope with Halogen Illumination

Working Stage : Glass Plate and Black & White Plate

Magnification : 10x to 40x

Get a Price/Quote

MagStereo FM 24 (LED with Battery Back-up)

Price 23550.0 INR / Piece

Minimum Order Quantity : 1 Piece

Drawtube : Other, Monocular, 360 Rotatable

Theory : Other, Digital FM system microscope with LED and battery backup.

Working Stage : Double layer mechanical stage, 125 x 115 mm, with low position coaxial controls

Magnification : 40x to 1000x (with Achromatic Objective)

Get a Price/Quote

MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE

Price 68979.0 INR / Piece

Minimum Order Quantity : 1 Piece

Drawtube : Other, Trinocular, 30 inclined, 360 rotatable

Theory : Other, Magnus MLXi Plus Freedom Trinocular Microscope is designed for advanced research, educational, and clinical applications, offering high performance and ergonomic comfort.

Working Stage : Mechanical stage size 140 X 140 mm with XY movement 75 X 50 mm

Magnification : 40X to 1000X (using provided objectives and eyepieces)

Get a Price/Quote

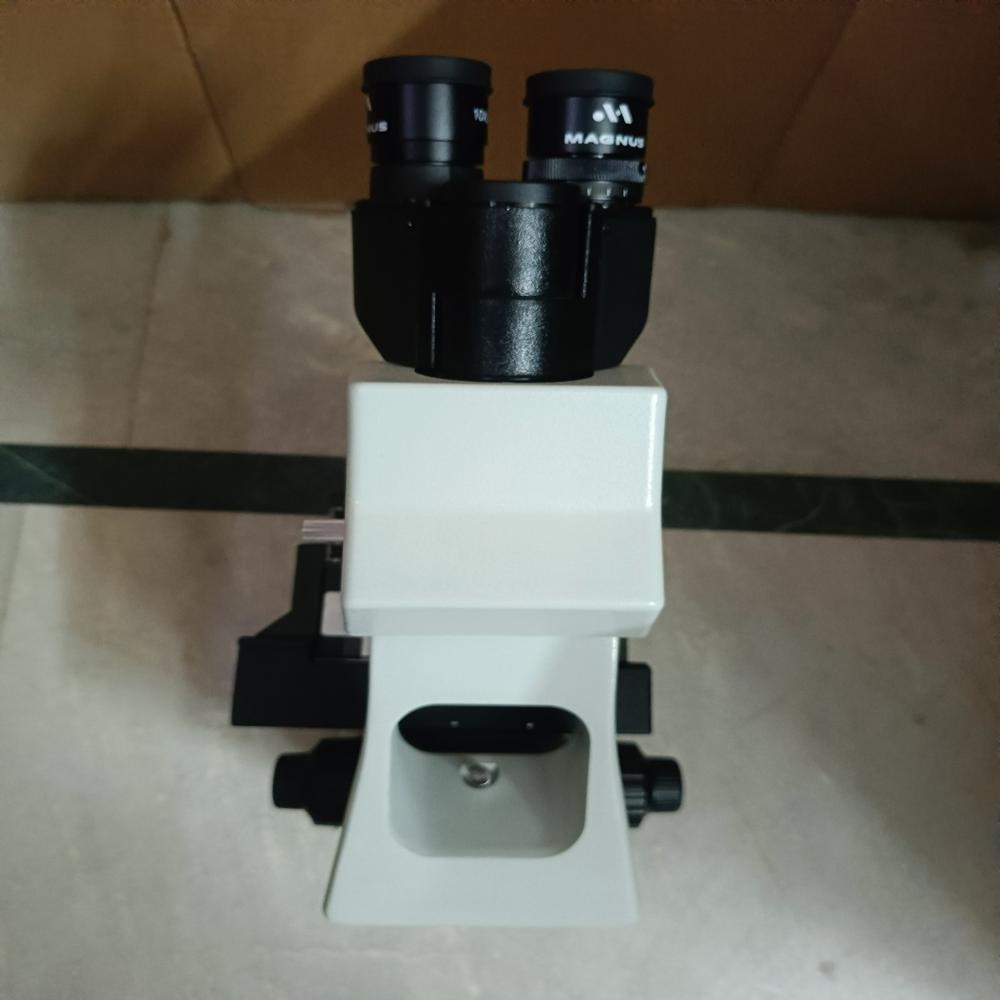

Magnus MX21i Binocular Clinical Microscope
