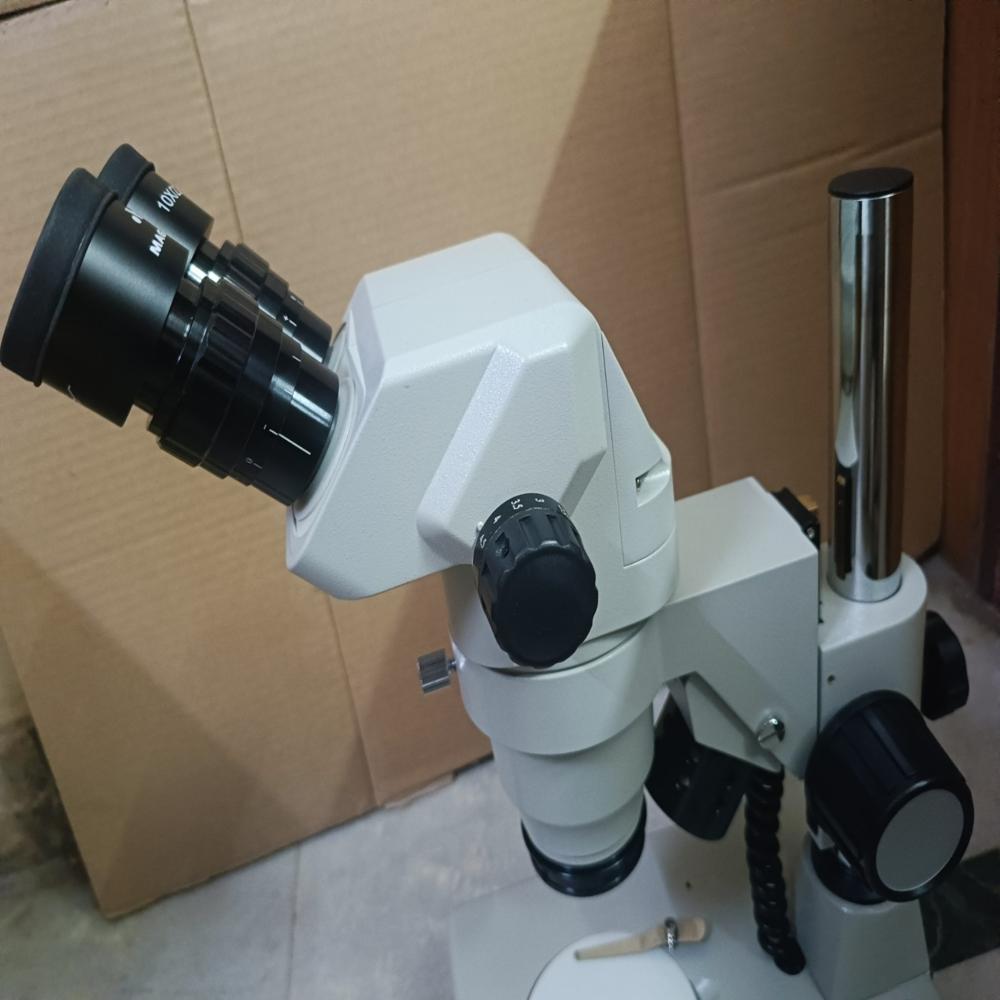

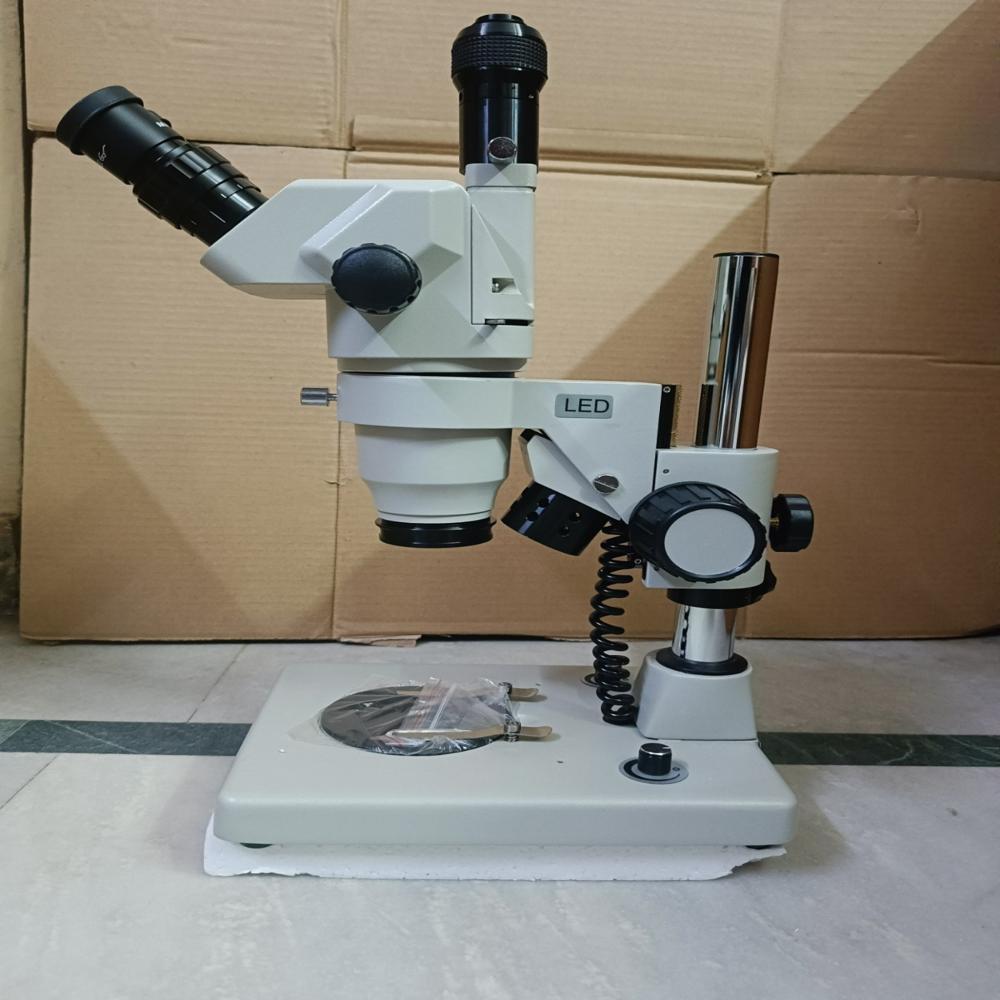

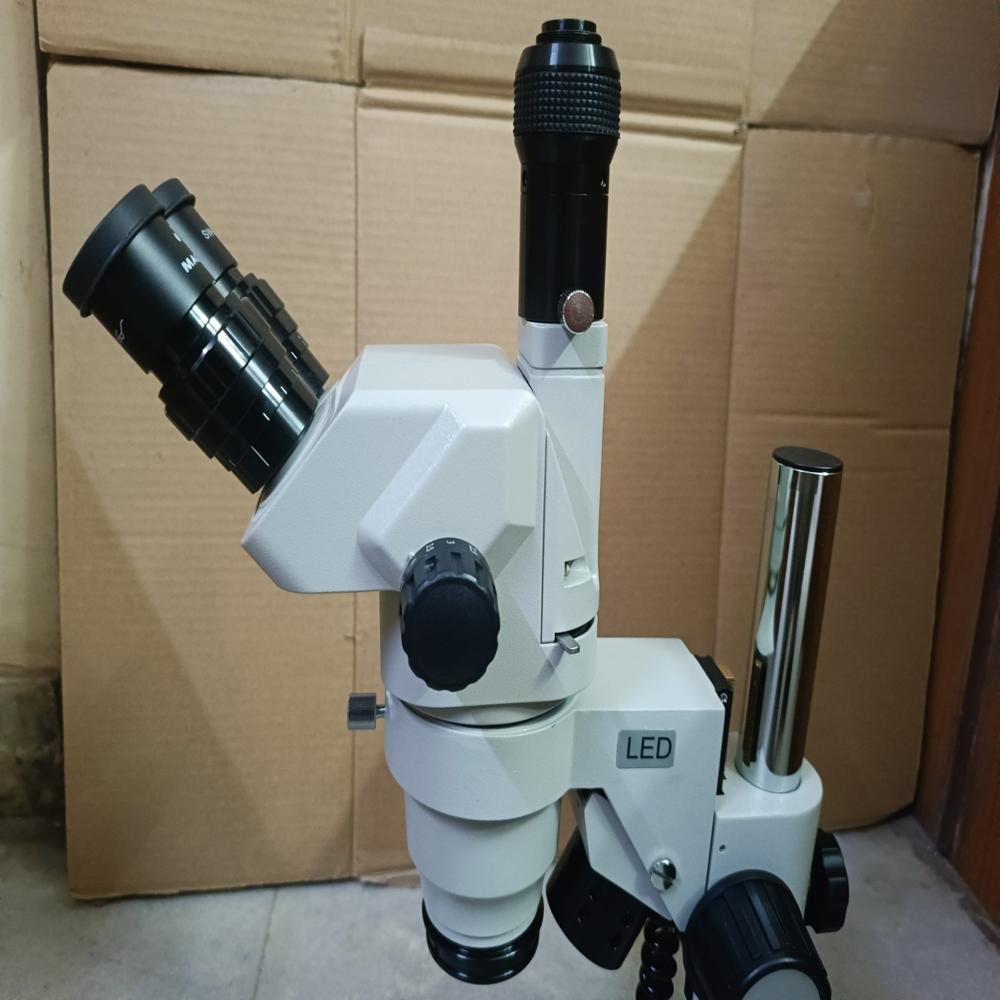

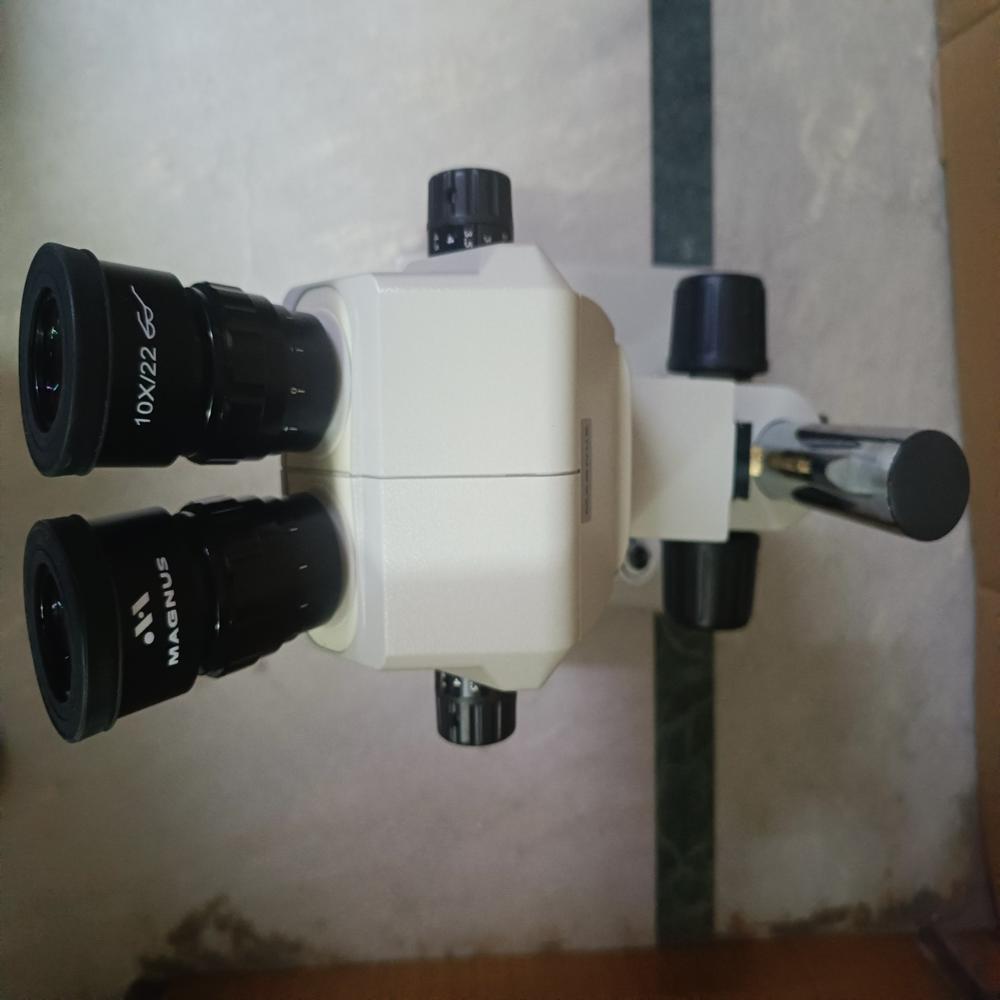

MAGNUS ZOOM STEREO BINOCULAR MICROSCOPE MODEL MSZ PLUS

Send Inquiry

Request To Call Back

MAGNUS ZOOM STEREO BINOCULAR MICROSCOPE MODEL MSZ PLUS

Price 85500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAGNUS ZOOM STEREO BINOCULAR MICROSCOPE MODEL MSZ PLUS Specification

Features
Parfocal zoom system, anti-fungal optical coating, ergonomic design, long working distance, dual LED illumination, compact and robust metal body

View Head
Binocular; 45 inclined; 360 rotatable

Spare Parts
Eyepieces, glass stage, contrast plate, bulb/LED replacements

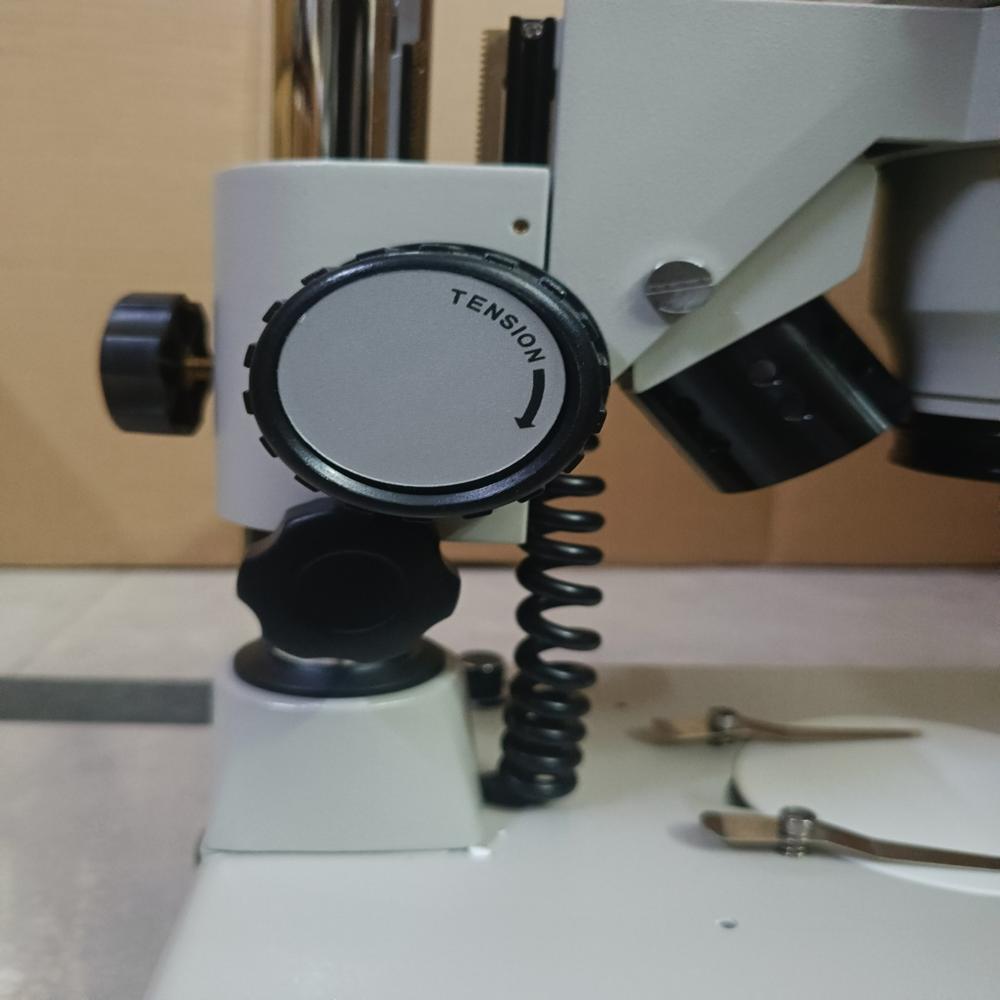

Focus System
Rack and pinion focusing mechanism

Theory
Zoom Stereo Binocular Microscope designed for high precision observation with sharp 3-dimensional images.

Drawtube
Binocular, 45 inclined, 360 rotatable

Sensor
Not applicable (standard optical microscope, no digital sensor built-in)

Resolution
Optical resolution dependent on objective/eyepiece combination; typically up to 100 lp/mm

Interface
Mechanical (eyepiece observation), no electronic interface

Focal Distance
Working distance approx. 100 mm (variable depending on objective)

Magnification
7x to 45x (standard, with optional up to 180x with supplementary lenses and eyepieces)

Dimensions
Approx. 300 mm (H) x 200 mm (W) x 300 mm (D)

Focus Range
Vertical movement via rack and pinion; range approximately 45 mm

Eyepieces
WF 10x/20mm (Wide Field), rubber eye guards included

Eyepiece Tube
Binocular (pair)

Illumination
Incident (top) and transmitted (bottom) LED illumination, adjustable intensity

Coarse Adjustment Range
Present via rack and pinion system

Fine Adjustment Range
Not typically applicable (coarse focus only)

Working Stage
Frosted glass stage plate ( 95mm), black/white contrast plate included

Image Format
Not applicable (visual observation only)

Interpupillary Distance
Adjustable 54mm - 76mm

Objective Achromatic
Zoom objective 0.7x - 4.5x continuous (Achromatic)

Light Source
LED for incident and transmitted illumination, 3W adjustable

Accessory Compatibility
Accepts digital camera adapters, auxiliary objectives (0.5x/2x) and eyepieces (15x, 20x)

Net Weight
Approx. 6 kg

Operating Temperature Range
10C to 40C

Body Material
Sturdy metal alloy frame with anti-corrosive finish

Diopter Adjustment
Yes, on both eyepiece tubes

Field of View
Minimum 28.6 mm with 10x eyepieces

Stage Plate Diameter
95 mm

Zoom Ratio
6.4:1 (0.7x-4.5x)

Voltage
110V/220V AC, 50/60Hz (universal input for illumination)

Maximum Height of Object
Up to 70 mm

MAGNUS ZOOM STEREO BINOCULAR MICROSCOPE MODEL MSZ PLUS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Week

About MAGNUS ZOOM STEREO BINOCULAR MICROSCOPE MODEL MSZ PLUS

MAGNUS ZOOM STEREO BINOCULAR MICROSCOPE

MODEL MSZ PLUS having greenough optical system, 45 degree inclined binocular observation

tube, having Zoom Ratio 1:6.7, Objective Zoom Range 0.75x-5x (Magnification Range :7.5x - 50x

with 10x eyepiece), Paired Widefield Eyepiece 10x/23mm, working distance 110mm with in-built

Light Stand (Incident : 3W LED & Transmitted 3W LED), black & white plate & frosted glass plate

included in Standard set.

Advanced Stereo Imaging

Experience crisp, detailed, and three-dimensional visualization with the MAGNUS MSZ PLUS, equipped with a parfocal zoom system and achromatic objectives. The wide field of view and long working distance allow comfortable observation and manipulation of large objects, making this microscope ideal for biological studies or industrial quality control.

Ergonomic & Durable Construction

The robust metal alloy frame with an anti-corrosive finish ensures durability, while its ergonomic, 45 inclined, and 360 rotatable binocular head offers flexibility and reduces neck strain. Anti-fungal optical coatings keep the optics clear, providing reliable use even in challenging environments.

Versatile Magnification & Accessory Support

Zoom seamlessly from 7x to 45x, or expand your observation range up to 180x with auxiliary objectives and higher-power eyepieces. The MSZ PLUS accommodates digital camera adapters for image documentation and supports various upgrades for advanced applications, lending itself to continuous professional use.

FAQ's of MAGNUS ZOOM STEREO BINOCULAR MICROSCOPE MODEL MSZ PLUS:

Q: How do I adjust the magnification on the MSZ PLUS microscope?

A: To change magnification, use the zoom knob to adjust seamlessly from 0.7x to 4.5x objective magnification (totaling 7x to 45x with the supplied 10x eyepieces). For even higher magnification up to 180x, auxiliary objectives and higher-power eyepieces can be added.

Q: What types of samples can I observe with this microscope?

A: The MSZ PLUS is designed for high-precision, three-dimensional observation, making it suitable for biological specimens, small parts inspection, circuit analysis, and educational demonstrations. Its 70 mm object height limit and interchangeable stage plates facilitate examination of various sample types.

Q: When should I use incident versus transmitted LED illumination?

A: Incident (top) LED lighting is ideal for opaque samples such as rocks, plant surfaces, or circuit boards, while transmitted (bottom) illumination is best for transparent or semi-transparent samples like biological tissues or thin sections. Both are adjustable for optimal visibility.

Q: Where can I connect a camera to the microscope for image capture?

A: Digital camera adapters can be attached to the eyepiece tubes, enabling you to document observations with a compatible camera. The microscope does not have a built-in sensor; imaging capability is added via accessories.

Q: What is the procedure for focusing and adjusting interpupillary distance?

A: Focus is achieved via the rack and pinion system for vertical stage movement, while interpupillary distance is easily adjusted between 54 mm and 76 mm to match user comfort. Both eyepiece tubes have diopter adjustment for individualized viewing.

Q: How does the MSZ PLUS benefit extended work sessions?

A: The microscope's ergonomic 45 inclined, 360 rotatable binocular head and rubber eye guards minimize fatigue, while the parfocal zoom and long working distance enable seamless inspection and manipulation of samples during prolonged periods.
