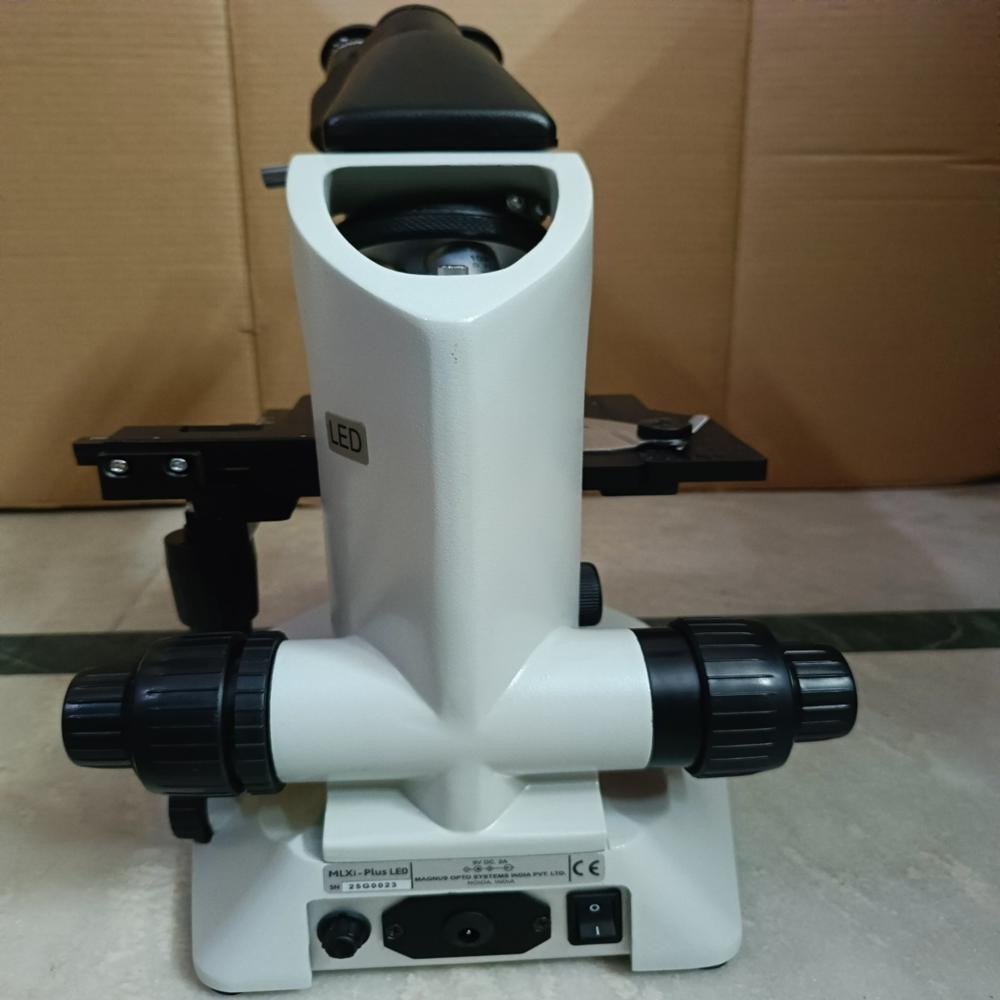

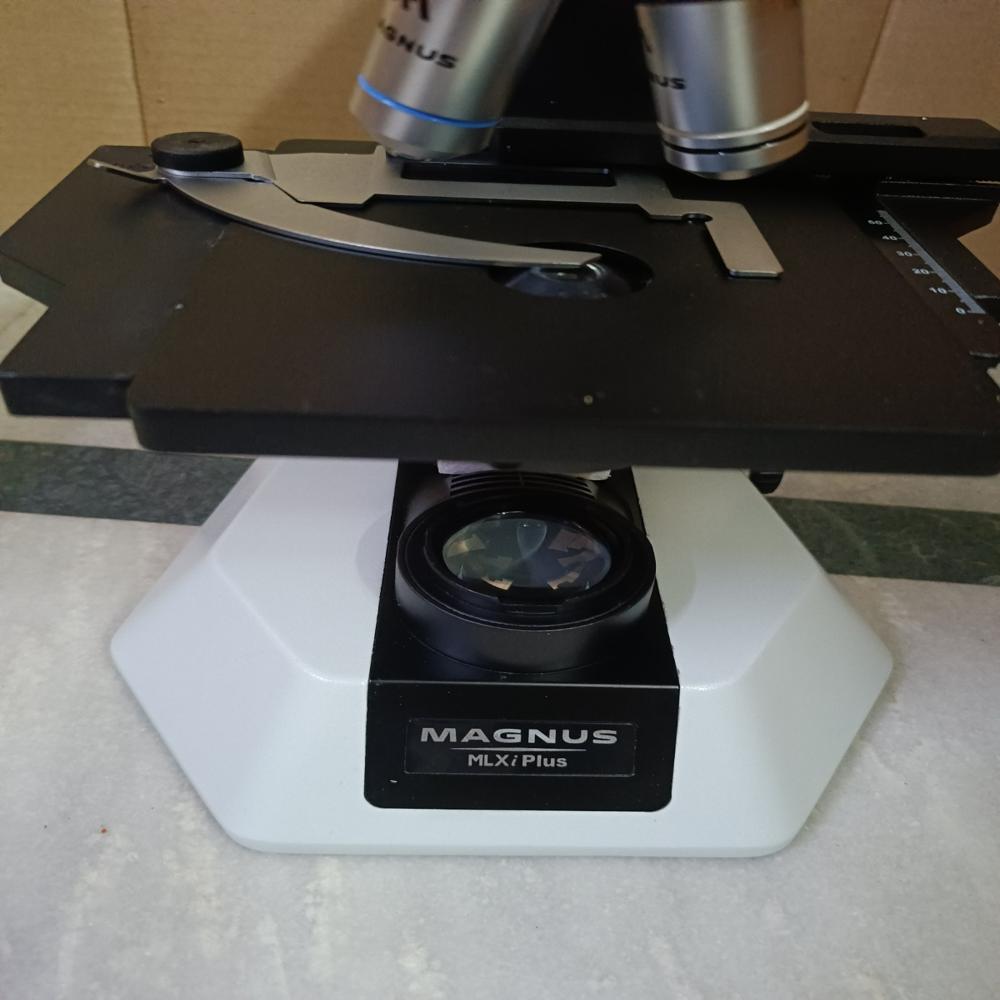

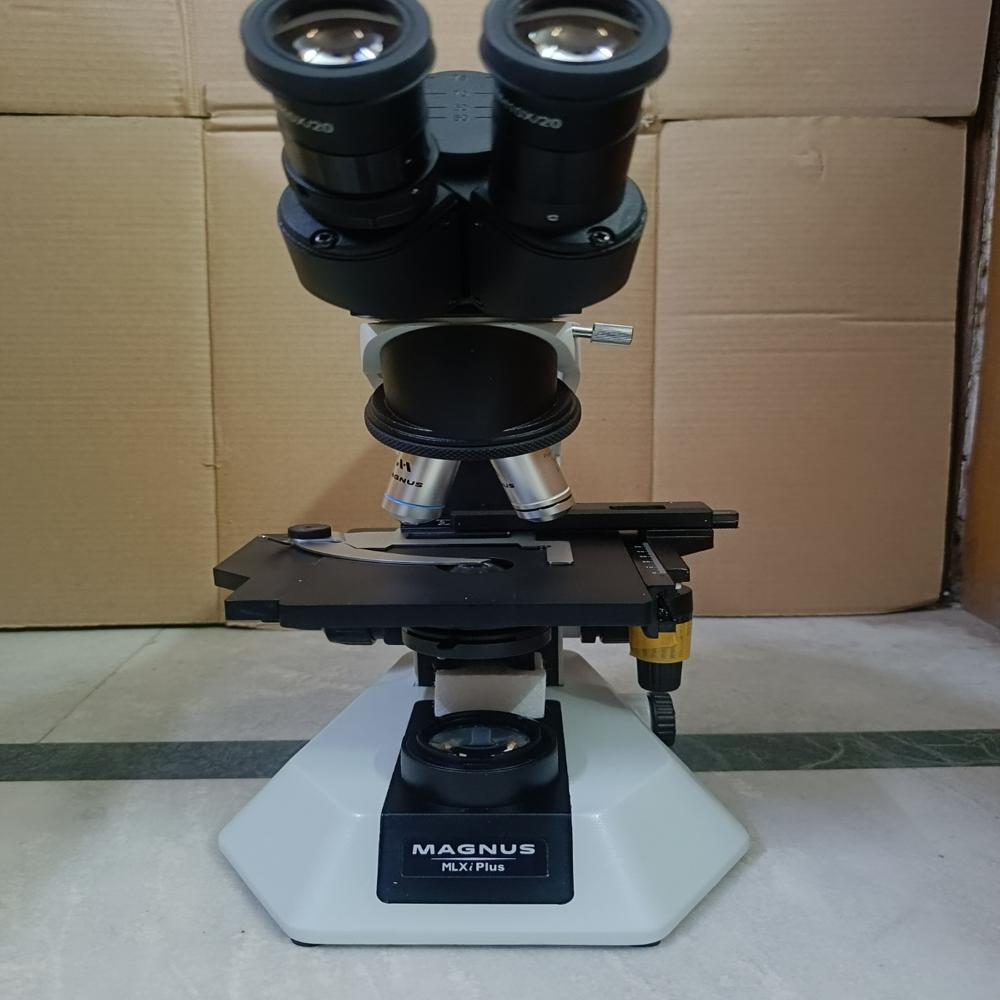

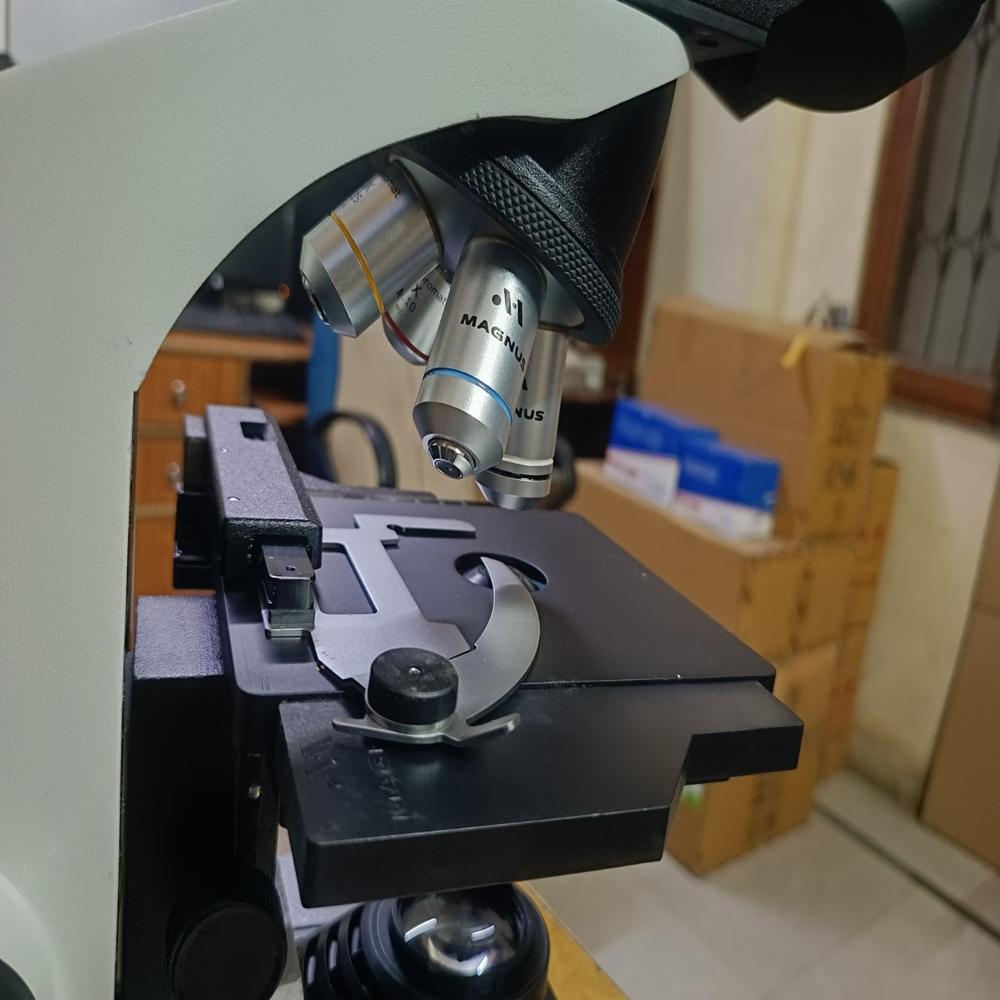

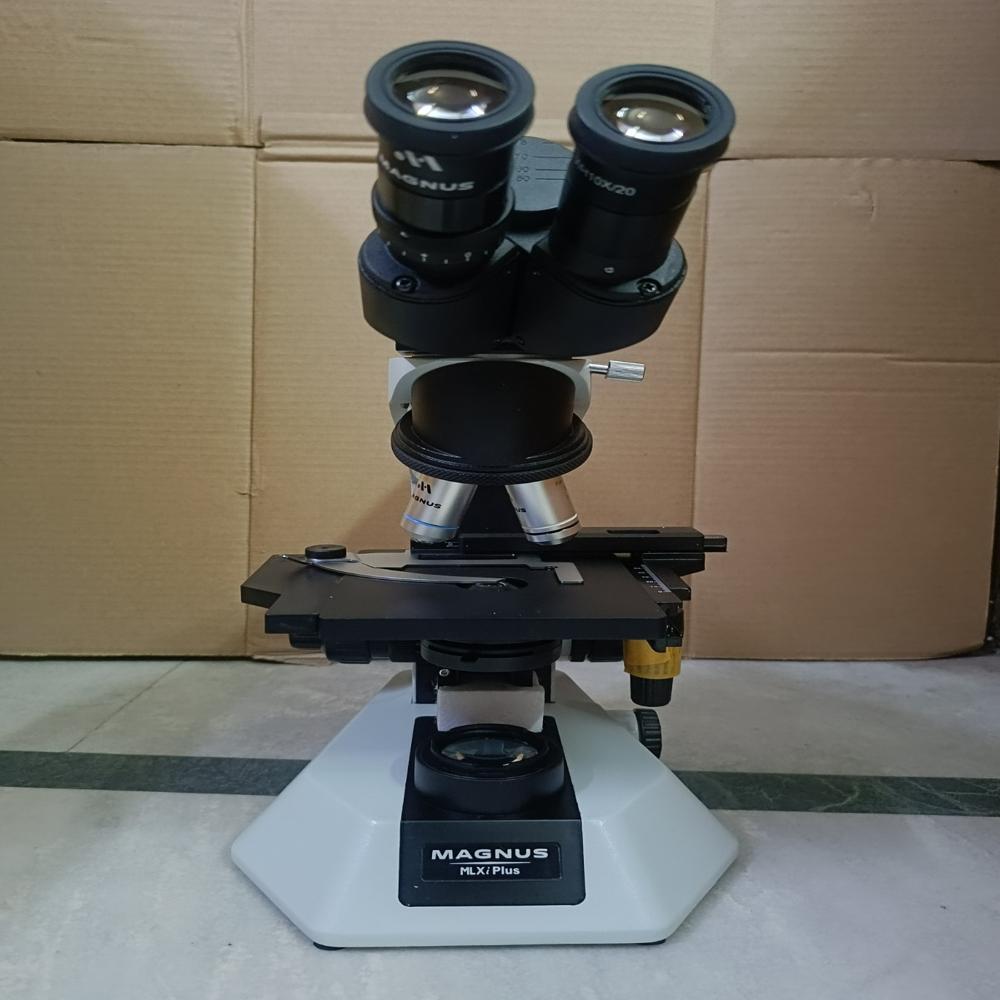

Send InquiryMAGNUS ADVANCE LABORATORY BINOCULAR MICROSCOPE MODEL MLXI PLUS PRO FREEDOM WITH AUTO LED OFF
Price 72412.0 INR/ Piece
MOQ : 1 Piece
MAGNUS ADVANCE LABORATORY BINOCULAR MICROSCOPE MODEL MLXI PLUS PRO FREEDOM WITH AUTO LED OFF Specification
- Features
- Auto LED off function, ergonomic design, robust build
- View Head
- Binocular
- Focus System
- Co-axial coarse and fine focusing mechanism with tension adjustment
- Spare Parts
- Dust cover, immersion oil, power cord, user manual
- Theory
- Advance Laboratory Binocular Microscope designed for professional laboratory use.
- Drawtube
- Binocular
- Magnification
- 40x to 1000x (depending on eyepiece and objective combination)
- Eyepieces
- Wide Field 10x (pair)
- Eyepiece Tube
- Binocular inclined at 45 with 360 rotatable head
- Illumination
- Bright White LED with auto-off function, long life
- Coarse Adjustment Range
- 15 mm
- Fine Adjustment Range
- 0.002 mm minimum division
- Working Stage
- Mechanical stage 140 x 135 mm with low positioned co-axial controls and double slide holder
- Interpupillary Distance
- Adjustable from 55 mm to 75 mm
- Objective Achromatic
- 4x (NA 0.10), 10x (NA 0.25), 40x SL (NA 0.65), 100x SL oil (NA 1.25)
- Condenser
- Abbe condenser NA 1.25 with iris diaphragm and swing out filter holder
- Light Source
- Built-in high brightness, energy-efficient LED with auto-off
- Accessories Included
- Instruction manual, dust cover, power cord, immersion oil bottle
- Power Supply
- AC 220-240V, 50/60 Hz
- Base
- Wide, stable base with anti-vibration pads
- Safety Features
- Auto LED cut-off for prolonged lamp life
- Stage Movement
- XY movement range 75mm x 45mm
- Diopter Adjustment
- Provided on left eyepiece
- Nosepiece
- Quadruple revolving nosepiece with positive click stops
- Weight
- Approximately 7.5 kg
- Filter Holder
- Swing-out filter holder for contrast enhancement
- Body Material
- Sturdy, powder coated metal frame for durability and stability
MAGNUS ADVANCE LABORATORY BINOCULAR MICROSCOPE MODEL MLXI PLUS PRO FREEDOM WITH AUTO LED OFF Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 5 Week
About MAGNUS ADVANCE LABORATORY BINOCULAR MICROSCOPE MODEL MLXI PLUS PRO FREEDOM WITH AUTO LED OFF
MAGNUS ADVANCE LABORATORY BINOCULAR MICROSCOPE MODEL MLXi Plus PROFreedom complete with LED illumination with battery back(with Auto LED Off feature), universalSMPS power supply for mains supply 100V240V, quintuple ball bearing inward nosepiece, coaxialcoarse and fine focusing control, high resolution Infinity corrected Super Plan AchromaticObjectives 4x, 10x, 20x, 40x (spring), 100x oil (spring), 360 degree rotatable inclined Siedentopfbinocular observation tube with eyepoint height adjustment , fungus resistant coated optics fortropical conditions, widefield paired eyepiece WH10x (F.N.22) with one eypeiece having dioptersetting, right hand control co-axial low drive rackless mechanical stage with single slide holder,rack & pinion drive focusable Abbe condenser 0.9/ 1.25 N.A with iris diaphragm & cord holdePrecision Engineering for Reliable Laboratory Results
Designed with a robust, powder-coated metal frame and secure wide base with anti-vibration pads, the MLXI PLUS PRO FREEDOM delivers reliable stability during extended and precise laboratory work. The advanced mechanical stage offers a substantial XY movement range for accurate specimen positioning, making complex tasks manageable and repeatable under varied magnifications.
Enhanced User Comfort and Performance
With a 45 inclined binocular head and adjustable interpupillary distance, this microscope supports ergonomic viewing even during long laboratory sessions. Co-axial coarse and fine focus controls, paired with a precise mechanical stage, enable smooth operation and meticulous focusing. The swing-out filter holder and Abbe condenser ensure optimal contrast for detailed observation.
Efficient, Long-life LED Illumination with Smart Auto-Off
Equipped with a high-brightness, energy-efficient LED light source and automatic shut-off, this microscope extends lamp longevity and saves power. The auto LED off feature is a significant benefit during busy lab workflows, promoting safety and reducing maintenance costs related to frequent bulb replacements.
FAQ's of MAGNUS ADVANCE LABORATORY BINOCULAR MICROSCOPE MODEL MLXI PLUS PRO FREEDOM WITH AUTO LED OFF:
Q: How does the auto LED off function benefit laboratory work?
A: The auto LED off function helps extend the LED lamp's life by automatically powering down when the microscope is not in use. This not only saves energy but also reduces long-term maintenance and replacement costs, making laboratory operations more efficient.Q: What is the magnification range of the MLXI PLUS PRO FREEDOM microscope?
A: This microscope offers a magnification range of 40x to 1000x, depending on the combination of provided wide field 10x eyepieces and quad achromatic objectives (4x, 10x, 40x SL, 100x SL oil).Q: When is it necessary to use the oil immersion objective, and how is immersion oil applied?
A: The 100x SL oil objective should be used when viewing extremely fine details in samples. Place a small drop of immersion oil on the slide before rotating the 100x objective into position for high-resolution, clear imaging without optical distortion.Q: Where can the swing-out filter holder be useful in microscopy applications?
A: The swing-out filter holder is especially useful for contrast enhancement in sample observation, such as distinguishing structures within stained biological specimens. It lets you easily insert or remove filters as needed for different lighting or contrast requirements.Q: What safety features are incorporated in this microscope?
A: The MLXI PLUS PRO FREEDOM includes an auto LED cut-off for lamp protection, a sturdy construction for stability, and a wide base with anti-vibration pads to safeguard both users and delicate slides during operation.Q: How is focus adjustment achieved on this microscope?
A: Focus is achieved with a co-axial system offering both coarse (15 mm range) and fine (down to 0.002 mm division) adjustments, allowing for precise focusing even at higher magnifications. Tension adjustment further enhances smooth, accurate focusing control.Q: What are the main steps in setting up the microscope for professional use?
A: Setup involves placing the unit on a stable surface, connecting the power cord to an AC outlet, fixing the slide on the mechanical stage, selecting the desired objective, switching on the LED, and using the co-axial focus to bring the specimen into sharp view. Accessories like immersion oil or filters can be used as required.
