MagStereo FM 24 (Halogen)

Name: MagStereo FM 24 (Halogen)
Brand: M/S Uvsar India
Price: 22065.0 INR
Availability: InStock

Price 22065.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MagStereo FM 24 (Halogen) Specification

Focus System
Coarse & Fine Adjustment

Spare Parts
Halogen Lamp, Glass Plate, Eyecups

View Head
Trinocular, Rotatable 360

Features
Digital Imaging, Halogen Illumination, Wide Field Viewing

Theory
Stereo Microscope with Halogen Illumination

Drawtube
Trinocular

Sensor
1/3 Color CMOS

Resolution
1280 x 1024 pixels

Interface
USB 2.0

Frame Rate
30 fps

Focal Distance
60-120 mm

Magnification
10x to 40x

Dimensions
350mm x 220mm x 400mm

Focus Range
50 mm

Eyepieces
WF10x / 20mm

Eyepiece Tube
Inclined at 45

Illumination
Transmitted and Reflected Halogen Light (12V/10W)

Coarse Adjustment Range
Provided

Fine Adjustment Range
Provided

Working Stage
Glass Plate and Black & White Plate

Still Image Capture Resolution
1280 x 1024 pixels

Video Capture Resolution
1280 x 1024 pixels

Image Format
JPEG, BMP

Interpupillary Distance
55-75 mm

Objective Achromatic
1x and 4x

Condenser
Not Applicable (Stereo Microscope)

Light Source
Halogen Lamp 12V/10W

Operating Temperature
5C to 40C

Packaging
Supplied in plywood box with accessories

Color
White with Black Stage

Body Material
Metal & High-Quality Plastic

Weight
Approx. 6 kg

Stage Size
95 mm Glass Plate

Suitable For
Biological Labs, Industrial Application, Educational Use

Arm
Curved Stand for stability

Power Supply
AC 220V/50Hz

MagStereo FM 24 (Halogen) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Week

About MagStereo FM 24 (Halogen)

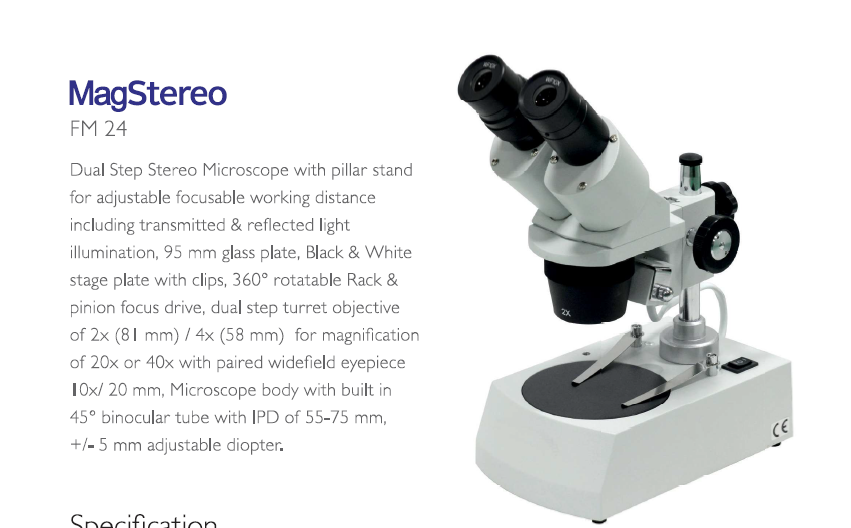

MagStereo FM 24 (Halogen)

Dual Step Stereo Microscope with pillar stand for adjustable focusable working distance

including transmitted & reflected halogen light illumination, 95 mm glass plate, Black & White stage

plate with clips, 360 rotatable Rack & pinion focus drive, dual step turret objective of 2x (81 mm) /

4x (58 mm) for magnification of 20x or 40x with paired widefield eyepiece 10x/ 20 mm, Microscope

body with built in 45 binocular observation tube with IPD of 55-75 mm, +/- 5 mm adjustable diopter,

dust cover complete set

Precision Stereo Viewing with Advanced Digital Capture

MagStereo FM 24 delivers crisp, three-dimensional images thanks to achromatic objectives (1x and 4x), a high-resolution CMOS sensor, and wide-field eyepieces. Its 45-degree inclined trinocular head and fine adjustment features allow for ergonomic, fatigue-free observation. This setup is ideal for tasks demanding accuracy and repeatable outcomes in labs and classrooms.

Reliable Construction and User-Friendly Design

Built with metal and high-quality plastic, MagStereo FM 24 offers lasting durability and stability. Its curved stand minimizes vibrations, while the adjustable working stage supports versatile samples. Accessories, including halogen lamps and eyecups, make operation simple and maintenance straightforward for both beginners and experienced users.

FAQ's of MagStereo FM 24 (Halogen):

Q: How does the MagStereo FM 24 accommodate different applications in biological labs, industry, and education?

A: The MagStereo FM 24 is designed with a wide range of magnification (10x-40x), a durable frame, and a versatile working stage. These features allow it to be effectively used for examining biological specimens, performing quality inspections in industrial settings, and educational demonstrations in classrooms or universities.

Q: What are the benefits of the digital imaging system in this microscope?

A: Its integrated 1/3 Color CMOS sensor provides clear, high-resolution images (1280 x 1024 pixels) and supports still and video capture via USB 2.0. Users can view, record, and share observations efficiently, making the microscope ideal for documentation, teaching, and collaborative analysis.

Q: When should I use the transmitted vs. reflected halogen illumination?

A: Transmitted light is best for viewing transparent or semi-transparent samples, while reflected halogen illumination is suitable for observing opaque specimens. Switching between these modes broadens the scope of samples you can examine with a single device.

Q: Where should the MagStereo FM 24 be operated, and under what conditions?

A: For optimal performance, use the microscope indoors within its specified operating temperature range (5C to 40C) and connect to an AC 220V/50Hz power supply. Its compact size allows convenient placement on laboratory benches, workstations, or classrooms.

Q: How is focusing achieved on this microscope?

A: The stage features both coarse and fine adjustment controls, offering precise focusing across a 50 mm range. This system accommodates quick scanning and detailed study of various sample types, ensuring clarity and repeatability.

Q: What maintenance or spare parts are necessary for long-term use?

A: The MagStereo FM 24 is supplied with spare halogen lamps, glass plates, and eyecups. Regular replacement of light sources and gentle cleaning of optical surfaces help extend the instrument's lifespan and maintain optimal viewing quality.

Q: What is the packaging process for delivery and what accessories are included?

A: Each unit is securely packed in a plywood box to prevent transit damage. The package includes necessary accessories like spare halogen lamps, a glass plate, eyecups, and additional stage plates, ensuring users have all components needed for immediate operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Binocular Microscope Category

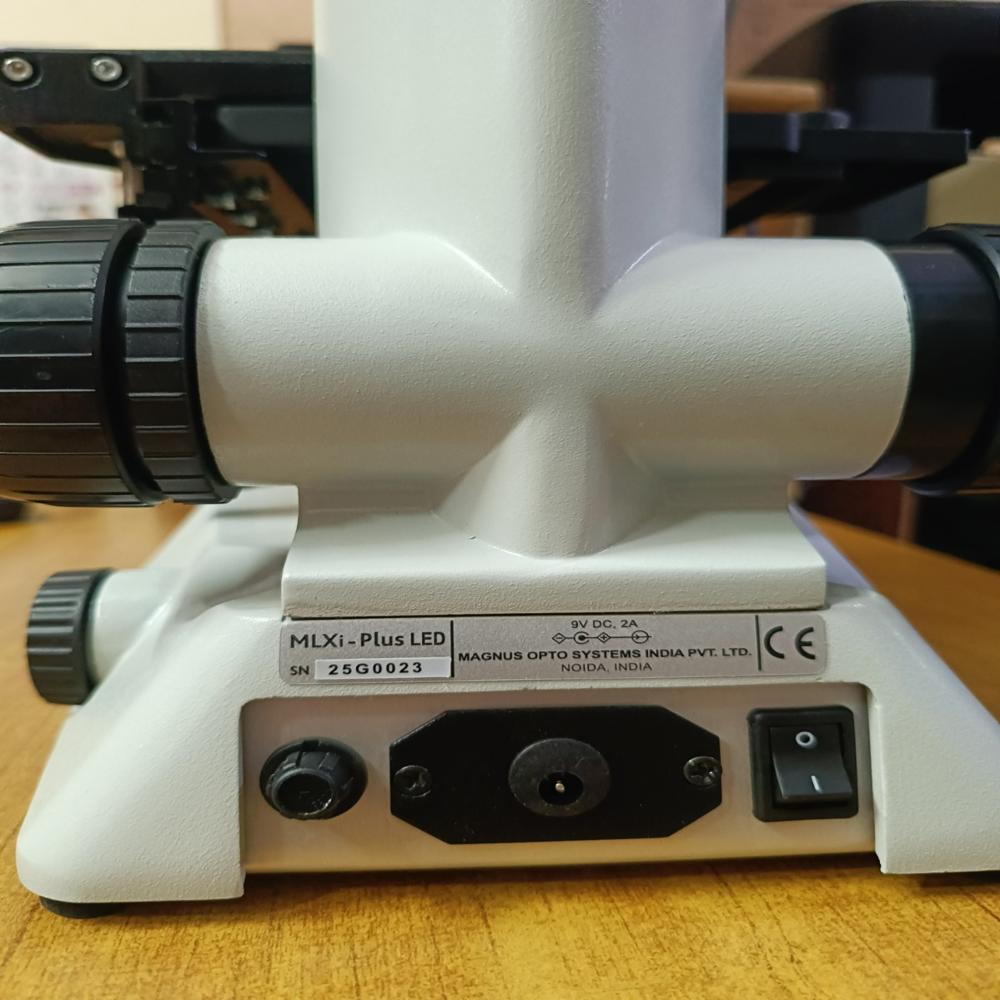

MAGNUS ADVANCE LABORATORY BINOCULAR MICROSCOPE MODEL MLXI PLUS PRO FREEDOM WITH NO AUTO LED OFF

Price 68415.0 INR / Piece

Minimum Order Quantity : 1 Piece

Features : Freedom from automatic LED off, robust metal frame, antifungus optics, ergonomic design for prolonged use.

Focus System : Coaxial coarse and fine focusing mechanism with tension adjustment.

Working Stage : Precision mechanical stage with lowposition coaxial XY controls, size approximately 135 x 140 mm.

Eyepiece Tube : Binocular, adjustable interpupillary distance 55 75 mm.

Get a Price/Quote

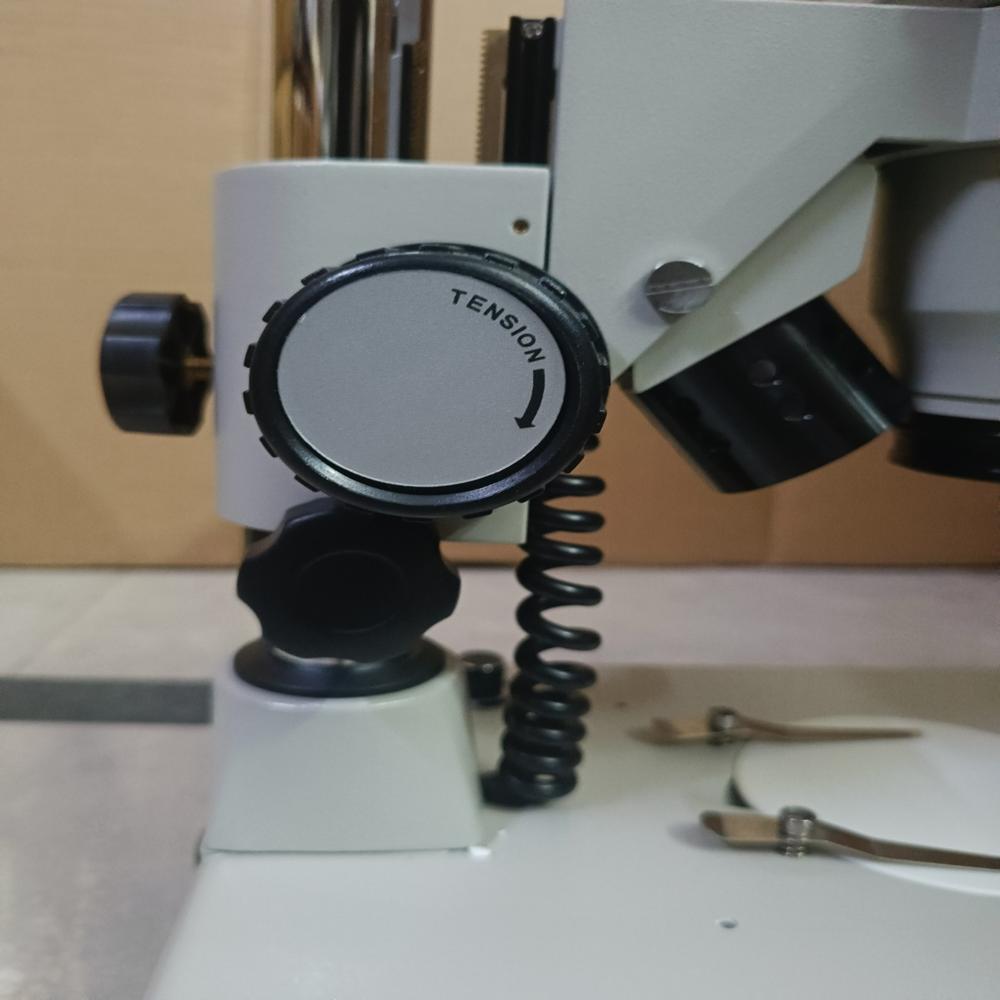

MAGNUS ZOOM STEREO BINOCULAR MICROSCOPE MODEL MSZ PLUS
