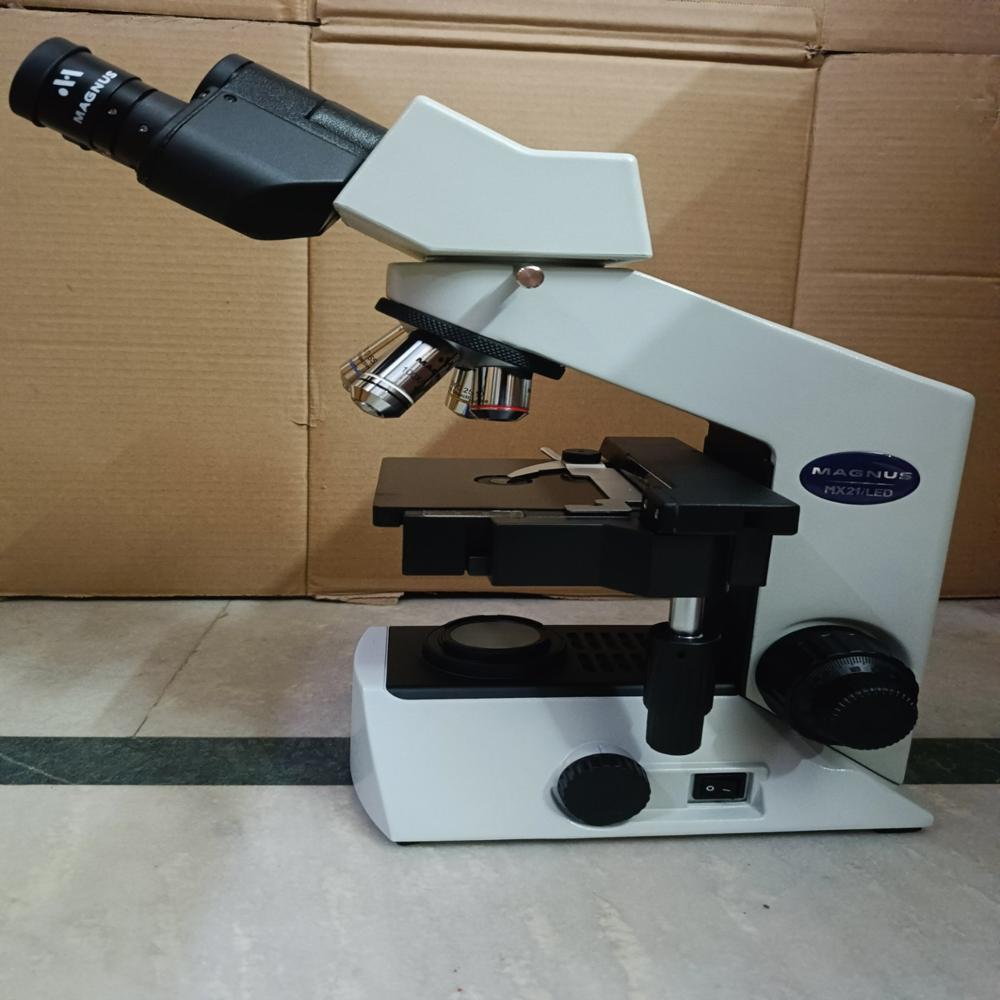

Send InquiryMagnus Mx21i Binocular Microscope FREEDOM
Price 81555.0 INR/ Piece
MOQ : 1 Piece
Magnus Mx21i Binocular Microscope FREEDOM Specification
- Focus System
- Coarse and fine coaxial focusing system with tension adjustment.
- Spare Parts
- Supplied with spare bulb, fuse, immersion oil, dust cover, and operation manual.
- Features
- Robust metal body, anti-fungal optical components, crisp image performance, user-friendly mechanical stage, LED illumination suitable for extended operation.
- View Head
- Binocular, 45 inclined, rotatable.
- Theory
- Compound microscope with high-resolution optical system suitable for research and educational applications.
- Drawtube
- Binocular, 360 rotatable, inclined at 45 for comfortable viewing.
- Sensor
- N/A (standard optical microscope without built-in imaging sensor)
- Resolution
- Dependent on eyepiece and objective combination, high optical clarity.
- Interface
- Standard eyepiece viewing, optional camera port available.
- Frame Rate
- N/A (unless camera module is attached)
- Focal Distance
- Approx. 195mm.
- Magnification
- 40x - 1000x (with standard objectives and eyepieces).
- Dimensions
- Approx. 380mm x 180mm x 220mm.
- Focus Range
- 75mm (approximate coarse focus range).
- Eyepieces
- Wide field WF 10x/18mm pair.
- Eyepiece Tube
- Binocular, 45 inclined, 360 rotatable.
- Illumination
- Built-in LED illumination with variable intensity control.
- Coarse Adjustment Range
- Approx. 30mm.
- Fine Adjustment Range
- 0.002mm per division.
- Working Stage
- Mechanical stage, 125mm x 115mm with vernier scale and stage clips.
- Still Image Capture Resolution
- N/A (depends on optional camera module used)
- Video Capture Resolution
- N/A (depends on optional camera module used)
- Image Format
- N/A (optical microscope, image format applies if using separate camera attachment).
- Interpupillary Distance
- Range: 54-74mm, adjustable.
- Objective Achromatic
- Achromatic objectives: 4x, 10x, 40x (S), 100x (oil, S).
- Condenser
- Abbe condenser, NA 1.25 with iris diaphragm and filter holder.
- Light Source
- Bright, long-life LED illumination with AC adapter.
- Body Construction
- All-metal die-cast body with anti-rust coating for durability.
- Stage Movement
- X-Y movement: 70mm (X) x 30mm (Y), with graduation scales.
- Optional Accessories
- Digital camera adapter, phase contrast kit, dark field kit, additional eyepieces.
- Packaging
- Individually packed in high-density foam and cardboard carton.
- Weight
- Approx. 6.2 kg.
- Safety Features
- Anti-fungal coated optics, overheat protection in LED circuitry.
- Power Supply
- Universal AC adapter, 100-240V, 50/60Hz.
Magnus Mx21i Binocular Microscope FREEDOM Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 5 Week
About Magnus Mx21i Binocular Microscope FREEDOM
1W LED light source (with battery back-up) High brightness, long life(30,000hrs). Battery back-up in-built NiMH Rechargeable batteriesprovide 6 to 8 hrs back-up on a full chargeDurable Design with Enhanced Protection
Constructed from an all-metal die-cast body and coated for rust resistance, the Mx21i is built to withstand years of intensive use. Its anti-fungal coated optics and overheat protection circuitry ensure longevity and consistent performance, even in demanding environments.
Precision Viewing and Comfortable Operation
The binocular head, inclined at 45 and 360 rotatable, provides ergonomic comfort for extended observation sessions. Users benefit from finely adjustable coarse and fine focusing, adjustable interpupillary distance, and a smooth X-Y mechanical stage featuring graduation scales for precise sample positioning.
Impressive Optical Performance and Flexibility
With achromatic objectives ranging from 4x to 100x (oil), wide-field eyepieces, and Abbe condenser, this microscope delivers sharp images ideal for detailed research. The integrated LED illumination is intensity-adjustable, supporting day-long activities without heat issues. Optional accessories expand its application versatility.
FAQ's of Magnus Mx21i Binocular Microscope FREEDOM:
Q: How do I set up and use the Magnus Mx21i Binocular Microscope FREEDOM?
A: First, unpack the microscope from its foam and cardboard packaging. Place it on a stable surface and plug the universal AC adapter into a power outlet (100-240V, 50/60Hz). Insert the WF 10x/18mm eyepieces into the binocular tube, and adjust the interpupillary distance for your comfort. Use the mechanical stage's X-Y movement to position your slides, select an objective lens, and focus using the coarse and fine adjustment knobs. Adjust illumination with the LED control as needed.Q: What safety and maintenance features does the microscope offer?
A: The Mx21i comes with anti-fungal coated optics to prevent microbial growth on lenses and overheat protection within the LED circuitry for safe, prolonged use. Its all-metal body resists corrosion, and the microscope is supplied with a dust cover, spare bulb, fuse, and immersion oil to maintain optimal condition.Q: When should I consider adding optional accessories, such as a camera adapter or phase contrast kit?
A: Optional accessories like the digital camera adapter, phase contrast kit, or dark field kit can be added when you require digital imaging, enhanced contrast, or advanced observation methods. These are especially useful for research, documentation, or specialized analysis in educational and laboratory settings.Q: Where can this microscope be used, and what applications is it suitable for?
A: The Magnus Mx21i is designed for research laboratories, educational institutes, clinics, and field studies. Its robust construction and precise optics make it well-suited for biological, microbiological, and material science applications.Q: What benefits does the binocular viewing system provide?
A: The binocular system, inclined at 45 and rotatable 360, allows for relaxed, comfortable viewing even during extended sessions. Adjustable interpupillary distance accommodates different users, reducing eye strain and improving the overall observation experience.Q: How do I clean and maintain the optical components?
A: Keep the microscope covered when not in use. Clean lenses gently with lens paper and suitable cleaning fluid. Avoid harsh chemicals to protect the anti-fungal coating. Remove dust regularly and handle all components carefully to ensure long-term clarity and performance.Q: What is the process for focusing and adjusting the image?
A: Begin with the lowest objective and bring the sample into rough focus using the coarse knob (approx. 30mm range), then fine-tune the sharpness with the fine adjustment knob (0.002mm per division). Adjust the illumination and condenser for best contrast and clarity before moving to higher magnifications.
