MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE

Send Inquiry

Request To Call Back

MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE

Price 68979.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE Specification

Features
Ergonomic design, energy-efficient LED illumination, anti-fungal optics, adaptable for digital imaging

View Head
Trinocular, 360 rotatable, 30 inclined

Focus System
Coaxial coarse and fine adjustment, tension adjustable

Spare Parts
Optional: Additional objectives, eyepieces, LED replacement kits

Theory
Magnus MLXi Plus Freedom Trinocular Microscope is designed for advanced research, educational, and clinical applications, offering high performance and ergonomic comfort.

Drawtube
Trinocular, 30 inclined, 360 rotatable

Interface
Trinocular port for camera attachment

Frame Rate
Dependent on attached camera

Magnification
40X to 1000X (using provided objectives and eyepieces)

Dimensions
Approx. 390 mm 200 mm 420 mm

Focus Range
Coarse and fine focus with adjustable tension

Eyepieces
WF 10X/20 mm, paired, high-eye point

Eyepiece Tube
Trinocular tube with diopter adjustment

Illumination
High-intensity LED illumination, variable intensity

Coarse Adjustment Range
25 mm

Fine Adjustment Range
0.002 mm minimum graduation

Working Stage
Mechanical stage size 140 X 140 mm with X-Y movement 75 X 50 mm

Still Image Capture Resolution
Dependent on attached camera

Video Capture Resolution
Dependent on attached camera

Image Format
Camera adaptable (dependent on attached camera)

Interpupillary Distance
48 mm to 75 mm adjustable

Objective Achromatic
Achromatic objectives: 4X, 10X, 40X (Spring), 100X Oil (Spring)

Condenser
Abbe condenser NA 1.25, with iris diaphragm and filter holder

Light Source
LED illumination, brightness adjustable

Stage Lock
Stage lock lever to prevent slide damage

Body Material
Sturdy metal frame, powder-coated finish

Packaged Weight
6.5 kg (approximate with standard accessories)

Filter Holder
Provided for easy contrast enhancement

Color
Standard white body with black stage and knobs

Voltage
100-240V, 50Hz/60Hz universal input

Camera Compatibility
Compatible with CCD and CMOS camera adapters

Stage Movement
Smooth X & Y controls with graduated vernier scales

Objective Mount
Reversed quadruple nosepiece, ball bearing mounted

Anti-Fungal Protection
All optical surfaces treated for anti-fungal protection

MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Week

About MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE

The MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE is a rare and highly recommended instrument, ideal for advanced research and clinical investigations. Featuring premier, world-class optics with anti-fungal protection, it ensures gorgeous clarity and longevity. The sturdy, powder-coated metal frame, smooth X & Y stage controls, and reversed quadruple nosepiece create a reduced-maintenance, ergonomic experience. Adaptable for digital imaging with universal voltage, this microscope offers magnifications from 40X to 1000X and is compatible with both CCD and CMOS camera adapters. A truly outstanding choice for discerning professionals.

Versatile Usage Across Advanced Applications

The MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE is renowned for its wide-ranging application in laboratories, research facilities, and educational institutions. Perfectly suited for examining slides on glass surfaces, it caters to advanced biological, clinical, and research needs. Its ergonomic design and precision controls enhance comfort during prolonged usage, making it highly effective for analyzing intricate cellular structures. Scientists, educators, and clinicians benefit immensely from its adaptable features, supporting diverse experimental requirements with reliable performance.

Flexible Payment, Efficient Delivery, and Sample Options

When procuring the MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE, various payment terms are available to suit your institution's procurement processes. Estimated delivery times may vary depending on destination and freight providers, ensuring goods transport is safe and prompt. The distributor also offers sample units for evaluation-please inquire directly for availability. All orders are securely packed, and the final delivery estimate includes product handling and transportation charges as per your location's requirements.

FAQ's of MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE:

Q: How does the stage lock lever protect specimen slides during use?

A: The stage lock lever precisely limits the movement range of the stage, ensuring the specimen slide remains secure and protected from accidental damage during observation and manipulation.

Q: What types of cameras are compatible with the MAGNUS MLXI PLUS FREEDOM TRINOCULAR MICROSCOPE?

A: This microscope is compatible with both CCD and CMOS camera adapters, making it adaptable for capturing both still and video images, depending on your research or documentation needs.

Q: When can I expect delivery of the microscope after placing an order?

A: Estimated delivery times depend on your location and the selected freight provider. Typically, the distributor will provide a timeline and details on goods transport during the order confirmation.

Q: Where is this microscope best utilized?

A: It is best used in advanced research laboratories, educational settings, and clinical facilities where detailed slide analysis and reliable optical performance are essential.

Q: What is the benefit of anti-fungal protection on optical surfaces?

A: Anti-fungal treatment on all optical surfaces guards against fungal contamination, maintaining the clarity and longevity of the microscope, especially in humid or varying environments.

Q: How can I request a sample before purchasing a larger order?

A: You can request a sample by directly contacting the distributor or supplier. Sample unit availability and estimation of delivery charges will be communicated upon your inquiry.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Binocular Microscope Category

MagStereo FM 24 (Halogen)

Price 22065.0 INR / Piece

Minimum Order Quantity : 1 Piece

Features : Digital Imaging, Halogen Illumination, Wide Field Viewing

Video Capture Resolution : 1280 x 1024 pixels

Focus System : Coarse & Fine Adjustment

Working Stage : Glass Plate and Black & White Plate

Get a Price/Quote

MAGNUS CH20i BINOCULAR FREEDOM

Price 58580.0 INR / Piece

Minimum Order Quantity : 1 Piece

Features : Integrated digital imaging, onscreen measurement, microSD support, live HDMI display, ergonomic build

Video Capture Resolution : 1920 x 1080 pixels

Focus System : Coaxial coarse & fine focusing system

Working Stage : Double layer mechanical stage, 135 mm x 125 mm, movement 75 mm x 40 mm

Get a Price/Quote

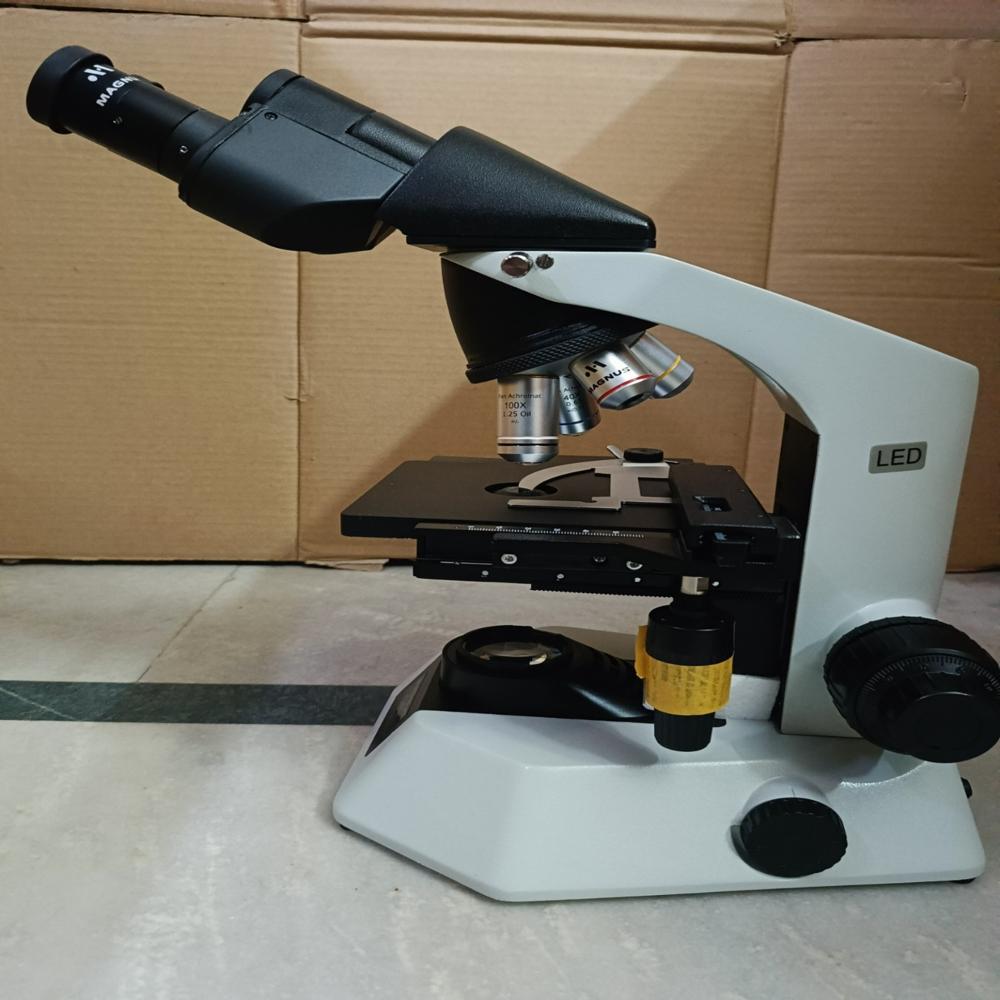

MAGNUS ADVANCE LABORATORY BINOCULAR MICROSCOPE MODEL MLXI PLUS PRO FREEDOM WITH NO AUTO LED OFF
