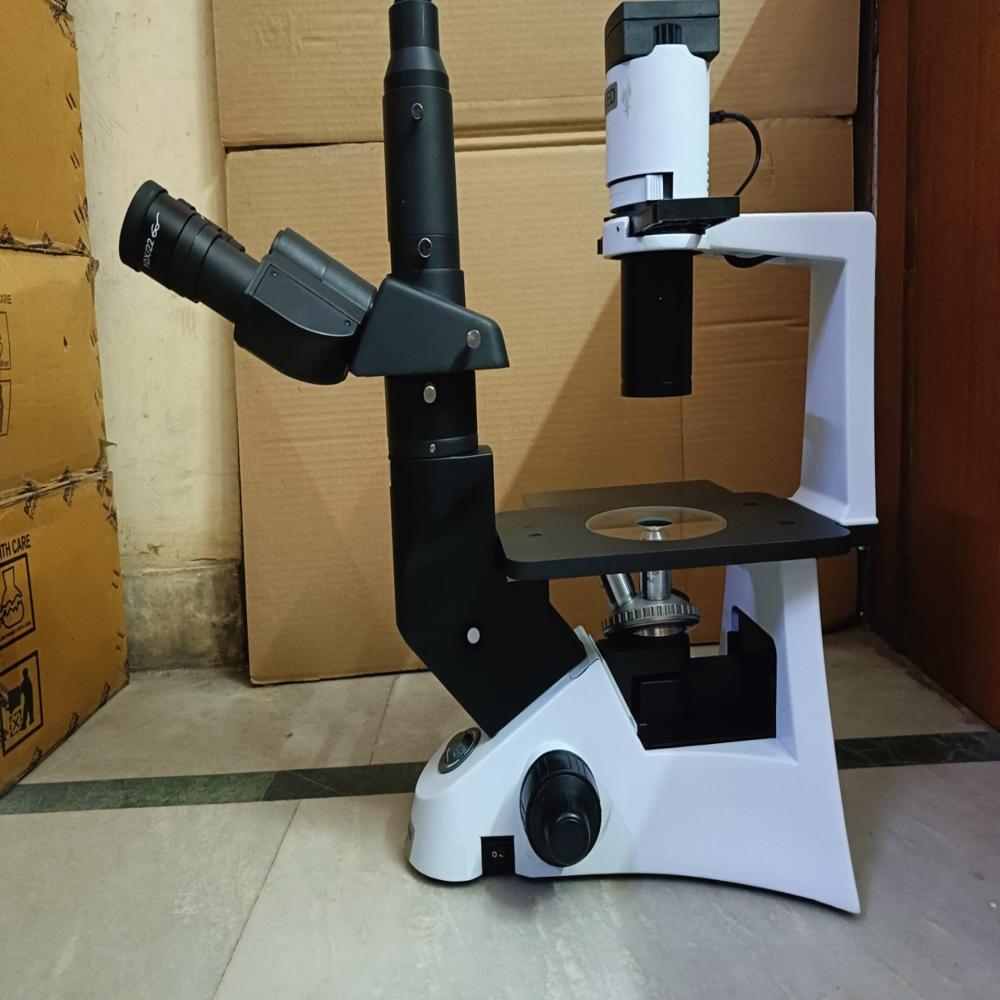

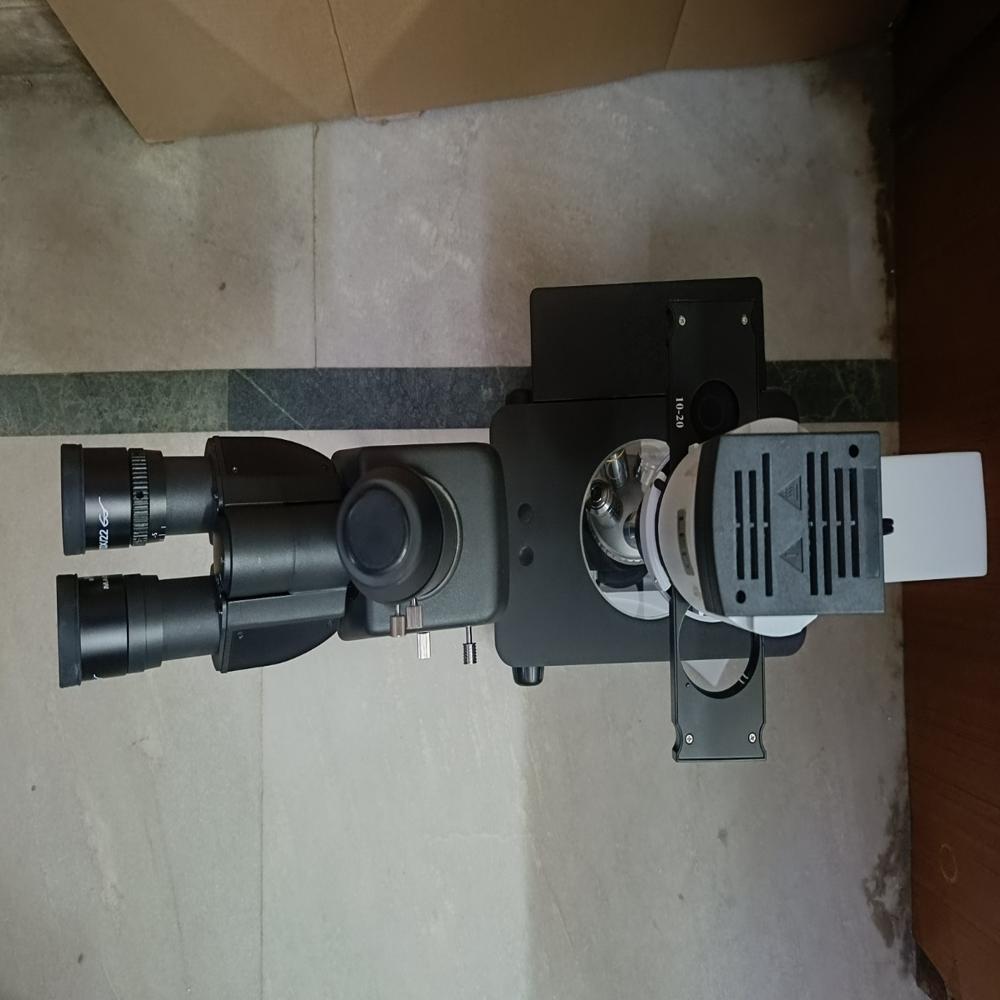

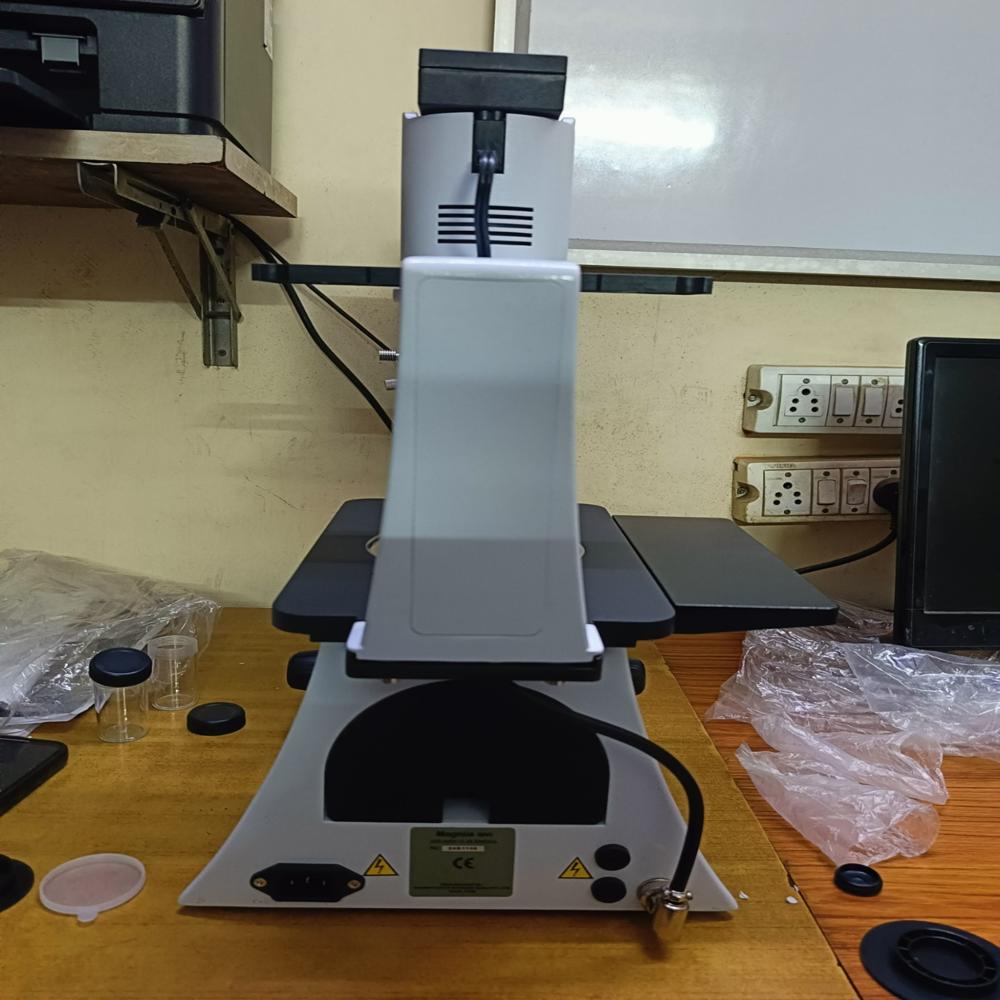

Send InquiryMAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI PLUS (HL)
Price 239000.0 INR/ Piece
MOQ : 1 Piece
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI PLUS (HL) Specification
- View Head
- Trinocular, inclined 45, rotatable 360.
- Spare Parts
- Supplied with dust cover, power cord, user manual, and fuse.
- Focus System
- Coaxial coarse & fine adjustment system.
- Features
- Stable metal frame, ergonomic handle, anti-fungus treated optics, long working distance for culture flasks and Petri dishes.
- Theory
- Microscope for inverted tissue culture observation, suitable for cell research applications.
- Drawtube
- Trinocular head for simultaneous observation and photo/video documentation.
- Sensor
- Digital imaging port compatible with various camera sensors (camera optional).
- Resolution
- Depends on attached camera (microscope optics up to 1000x resolving power).
- Interface
- Camera port - compatible with C-mount cameras; eyepiece observation.
- Frame Rate
- Depends on attached camera (typically up to 30 fps).
- Focal Distance
- 190 mm (Finite optical system).
- Magnification
- 40x to 400x standard (expandable to 1000x with optional optics).
- Dimensions
- Approx. 490 x 260 x 530 mm.
- Focus Range
- Coarse and fine adjustment; smooth focusing mechanism with long working distance for culture flask observation.
- Eyepieces
- Wide field (WF) 10x paired eyepieces with diopter adjustment.
- Eyepiece Tube
- Inclined 45, rotatable 360 trinocular tube with inter-pupillary distance adjustment.
- Illumination
- Halogen lamp 6V/30W with variable intensity control (Koehler illumination system).
- Coarse Adjustment Range
- Up to 15 mm travel (approximate).
- Fine Adjustment Range
- 0.002 mm graduation for precise focusing.

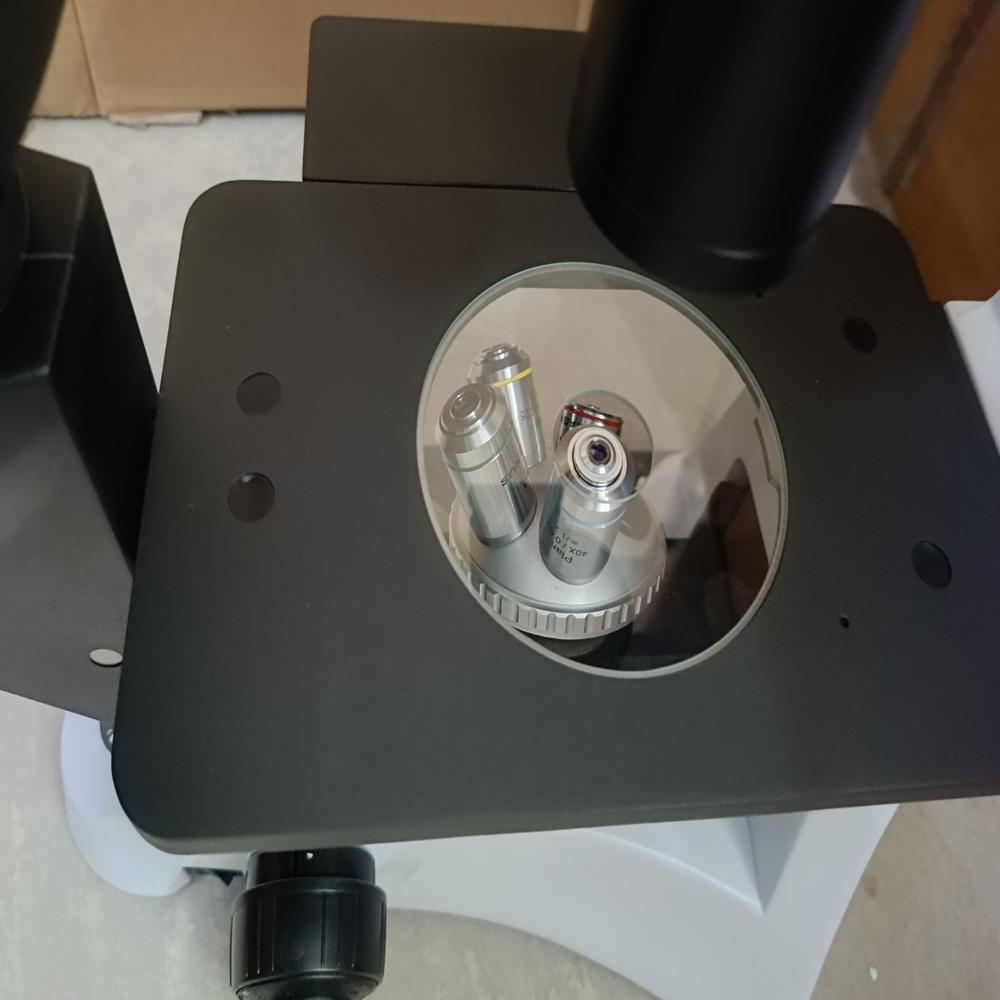

- Working Stage
- Mechanical stage with glass insert; stage dimension approximately 210 mm x 240 mm.
- Still Image Capture Resolution
- Depends on attached camera (typically 5 MP or higher).
- Video Capture Resolution
- Depends on attached camera (typically 1080p or higher).
- Image Format
- Supported by attached camera (JPEG, TIFF, PNG, etc.).
- Interpupillary Distance
- Adjustable 55 mm to 75 mm.
- Objective Achromatic
- Plan achromatic, long working distance objectives: 4x, 10x, 20x, 40x.
- Condenser
- Long working distance condenser, N.A. 0.30 with iris diaphragm.
- Light Source
- Halogen lamp 6V 30W, field diaphragm, universal voltage.
- Compatibility
- Works with phase contrast accessories (optional).
- Safety
- Provided with protective fuse and thermal cut-off.
- Body Material
- High-grade die-cast aluminum, powder coated for durability.

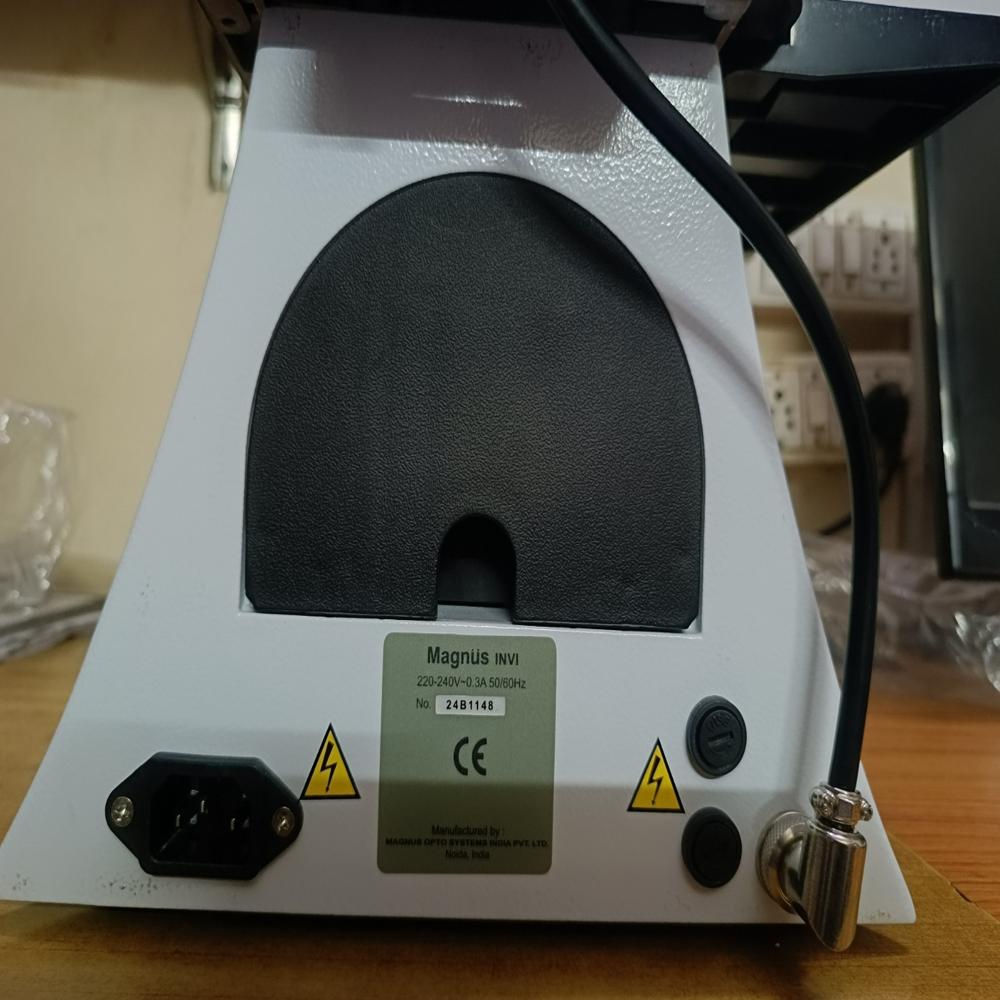

- Power Requirement
- 220-240V AC, 50/60Hz.
- Stage Movement
- X-Y mechanical movement, low-position controls for precise navigation.
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI PLUS (HL) Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 5 Week
About MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI PLUS (HL)
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI PLUS (HL)
for brightfield and phase contrast applications with infinity corrected optical system, seidentopf
trinocular tube (45 inclined, interpupillary 48mm75mm, 20:80 light split) having 6v30w halogen
light illuminator, quadruple revolving nosepiece, coaxial coarse & fine focusing knobs, plain stage (
200 x 239 mm) with insert plate, auxiliary stage, Condenser ELWD 72mm, Long working distance
Plan Infinity Objectives phase 4x/0.10, Phase 10x/0.25, Phase 20x/ 0.3, & Phase 40x/0.5 with
3 position phase slider, extra wide field eyepiece 10x (F.N.22) standard set complete.
Stable and Durable Construction
Manufactured from high-grade die-cast aluminum and powder coated for longevity, the microscope ensures a stable and vibration-free working platform. Its sturdy frame with ergonomic handles enhances user comfort and safety during prolonged usage, providing a reliable tool for cell research and tissue culture laboratories.
Exceptional Optical Performance
Equipped with wide-field 10x eyepieces, plan achromatic objectives, and a long working distance condenser, the microscope delivers clear and precise images up to 400x standard magnification, expandable to 1000x. The inclined 45 trinocular head supports comfortable, simultaneous observation and digital imaging for versatile applications.
Advanced Imaging and Documentation
With a C-mount-compatible digital port, researchers can attach a variety of cameras for high-resolution still and video image capture. The system supports formats such as JPEG, TIFF, and PNG, making documentation of experiments efficient and adaptable to laboratory needs.
FAQ's of MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI PLUS (HL):
Q: How does the microscope's mechanical stage benefit tissue culture observation?
A: The X-Y mechanical stage with low-position controls and long working distance allows smooth, precise navigation across culture flasks and Petri dishes, making it ideal for handling sensitive tissue culture samples without disrupting their environment.Q: What camera compatibility does the trinocular head offer for documentation?
A: The trinocular head includes a digital port compatible with a wide range of C-mount digital cameras, allowing users to capture images and videos in various formats. Resolution and frame rate depend on the attached camera, supporting up to 1080p video and 5 MP or higher still images.Q: Can the magnification be adjusted or expanded for different applications?
A: Yes, the standard magnification range is 40x to 400x with supplied objectives, and it can be increased up to 1000x by using optional optics, accommodating both basic and advanced cell research needs.Q: What steps are involved in setting up this microscope for phase contrast studies?
A: To perform phase contrast studies, simply attach optional phase contrast accessories compatible with this model. This enables enhanced visualization of transparent specimens without staining, which is pivotal for live cell observations.Q: When should the thermal cut-off and protective fuse features be used?
A: The thermal cut-off and fuse automatically engage for safety during electrical surges or overheating. This protects the microscope's electronics, ensuring long-term reliability and user safety during extended operation.Q: Where is this microscope best utilized?
A: This model is ideally suited for research laboratories, biotechnology institutes, and pharmaceutical settings that demand reliable inverted microscopy for cell culture, tissue analysis, and live-cell observation.
