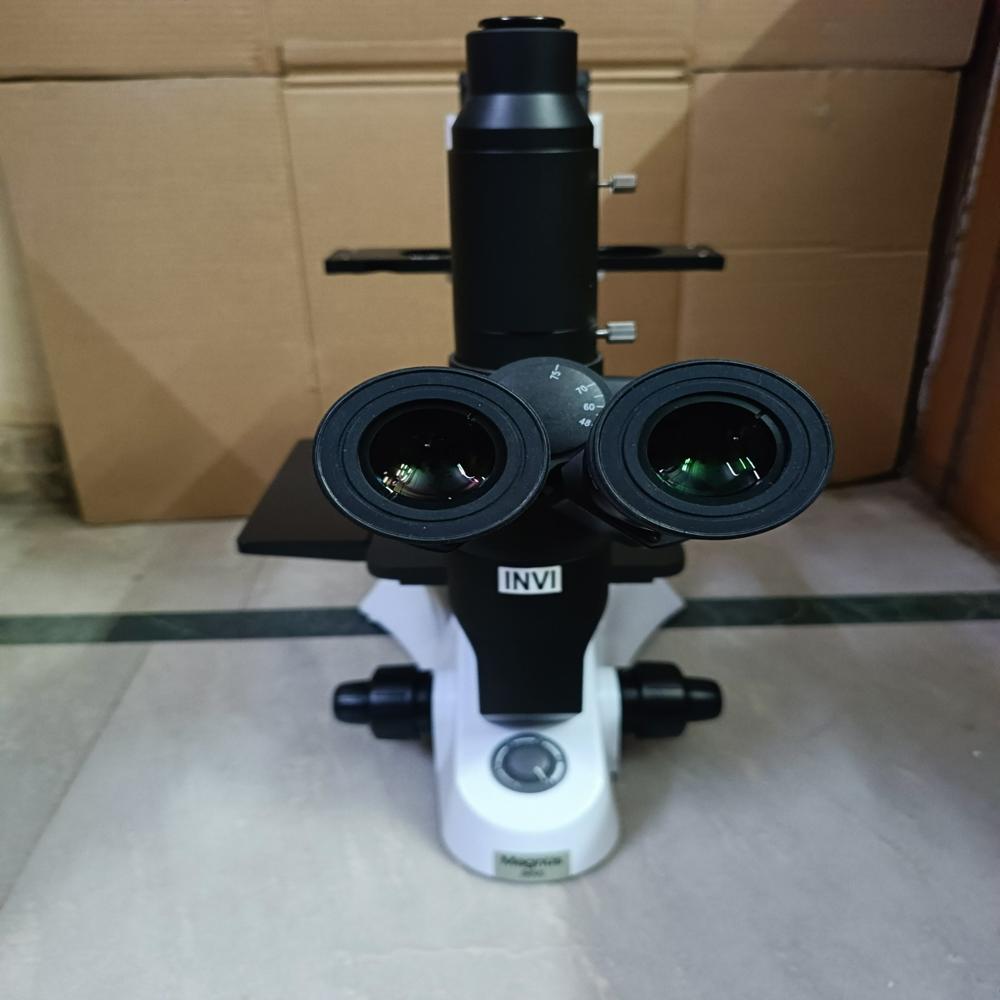

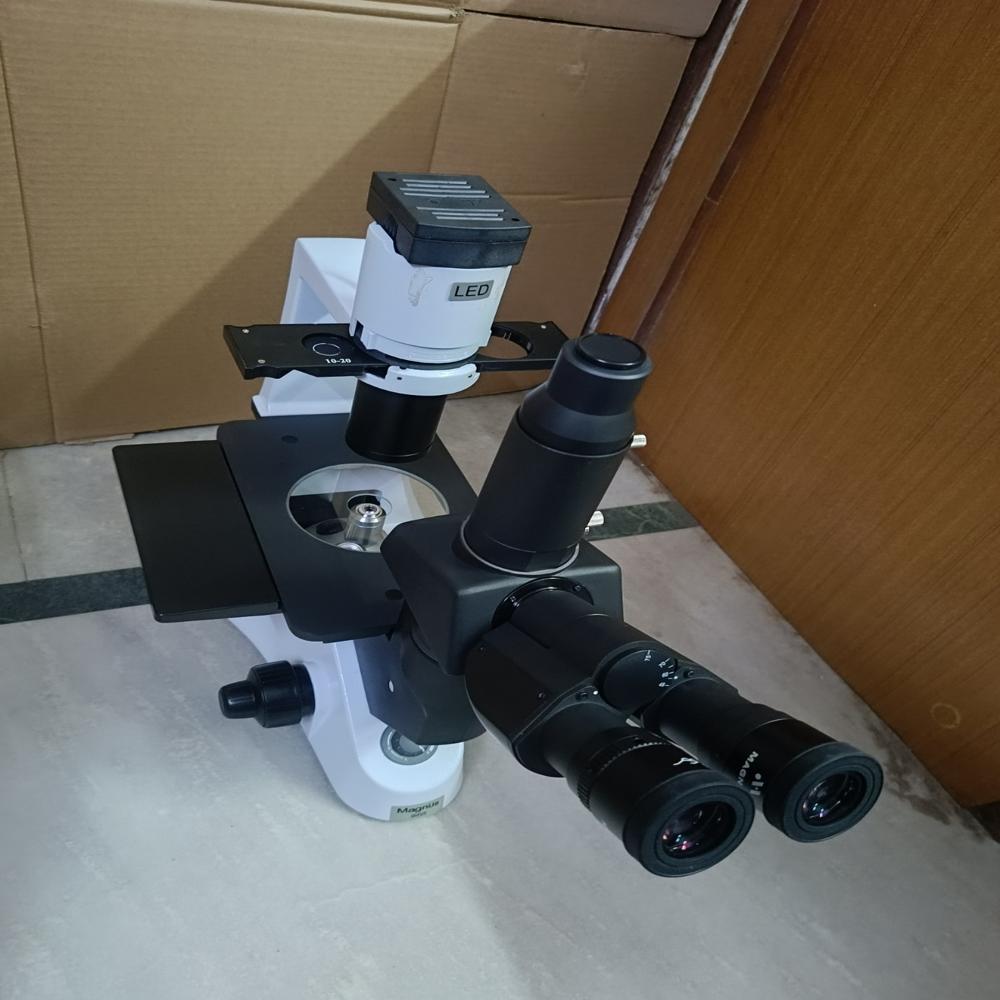

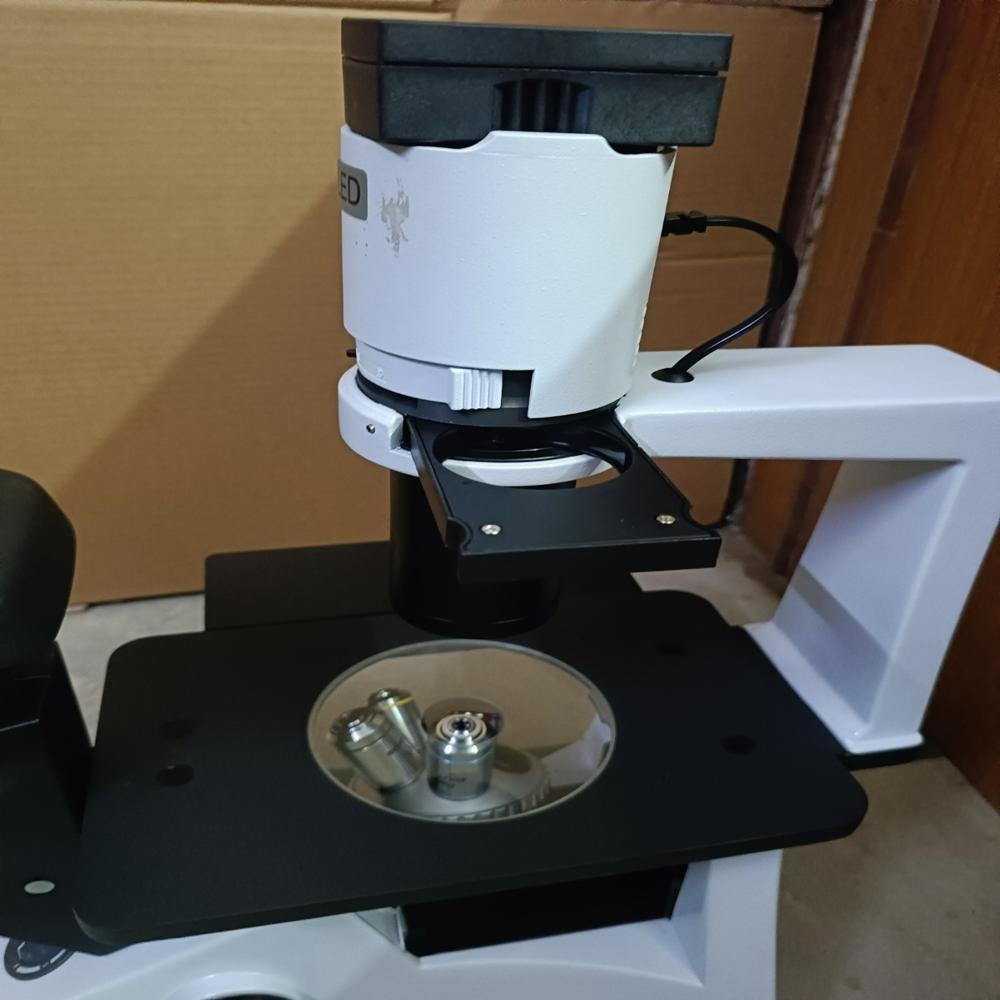

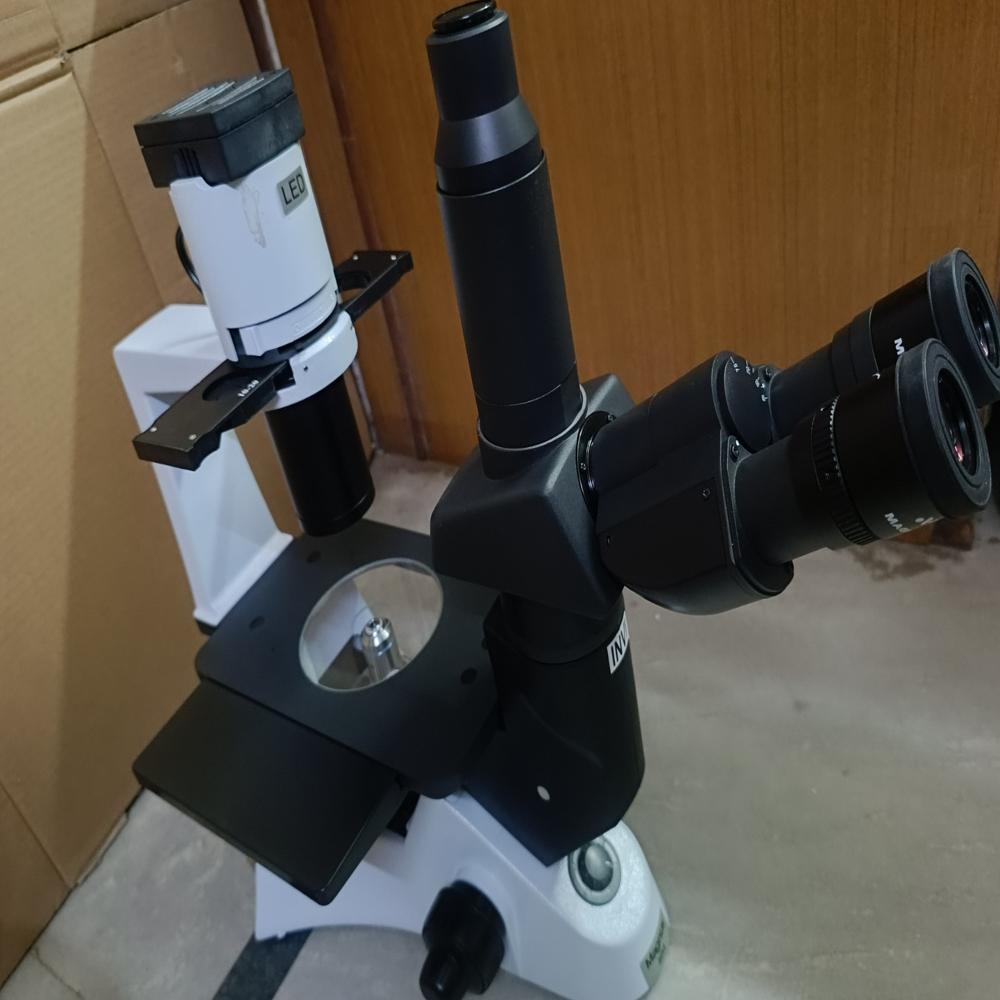

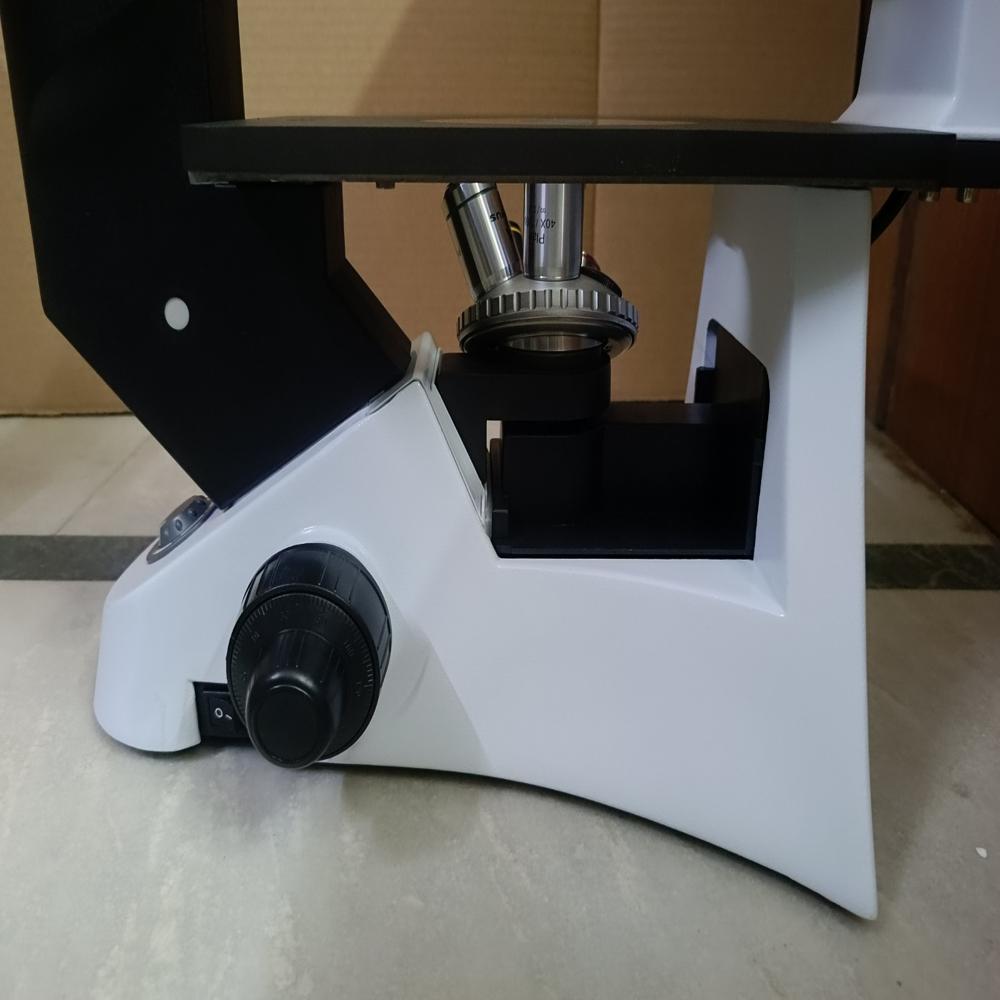

Send InquiryMAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (LED)
Price 209970.0 INR/ Set
MOQ : 1 Set
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (LED) Specification
- View Head
- Trinocular, inclined at 45
- Spare Parts
- Supplied with dust cover, fuse, spare bulb (LED), and user manual
- Focus System
- Coaxial coarse and fine focusing system
- Features
- LED illumination, modular stage design, ergonomic operation, suitable for Petri dishes/flasks, anti-fungal optics
- Theory
- Inverted tissue culture microscope for observing live cells and tissues at the bottom of culture vessels.
- Drawtube
- Trinocular (for simultaneous observation and digital imaging)
- Sensor
- Not built-in, supports external digital camera attachments
- Resolution
- Depends on attached camera, optical resolution up to 100X objective lens capability
- Interface
- Trinocular port for direct camera or imaging device attachment
- Frame Rate
- Depends on attached camera
- Focal Distance
- 45mm (standard distance for inverted objectives)
- Magnification
- 40X to 400X (with supplied objectives and eyepieces)
- Dimensions
- Approx. 460mm x 380mm x 580mm
- Focus Range
- Coarse and fine adjustment provided, range up to 10mm
- Eyepieces
- Wide field WF10X/20mm, paired (anti-fungal)
- Eyepiece Tube
- Trinocular, 45 inclined
- Illumination
- LED illumination, built-in, bright and uniform lighting
- Coarse Adjustment Range
- 15mm or more
- Fine Adjustment Range
- 0.002mm precision
- Working Stage
- Mechanical stage, size approx. 242 x 172mm, with specimen holder for flasks and Petri dishes
- Still Image Capture Resolution
- Depends on attached camera
- Video Capture Resolution
- Depends on attached camera
- Image Format
- Supports camera attachments for digital image output (JPG, PNG, TIFF depending on camera)
- Interpupillary Distance
- 50 - 75mm adjustable
- Objective Achromatic
- 4X, 10X, 20X, 40X long working distance (LWD) achromatic objectives
- Condenser
- Pre-centered long working distance condenser with slider for phase contrast (optional)
- Light Source
- High-intensity LED lamp, variable brightness
- Environmental Suitability
- Recommended for routine cell culture and tissue observations in research and clinical labs
- Color Temperature of LED
- Approx. 6500K (daylight white)
- Optical System
- Infinity-corrected optical system
- Objective Mount
- Quadruple ball bearing nosepiece
- Stage Movement
- X-Y mechanical stage with graduated movement up to 75mm x 50mm
- Stage Plate
- Interchangeable stage plates for various culture vessel sizes
- Phase Contrast Unit
- Optional, pre-fitted slot in condenser for phase rings
- Power Supply
- AC 220V/110V, 50/60Hz, universal compatibility
- Body Material
- Heavy-duty die-cast metal frame with chemical-resistant coating
- Stage Height Adjustment
- Provided by rack and pinion mechanism
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (LED) Trade Information
- Minimum Order Quantity
- 1 Set
- Delivery Time
- 5 Week
About MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (LED)
Discover the MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (LED), your top-ranking choice for routine cell culture and tissue studies. Engineered for excellence, this preeminent microscope features an infinity-corrected optical system, heroic heavy-duty die-cast frame, and fresh LED illumination with daylight white color temperature. Enjoy best price offers from trusted distributors, suppliers, and traders. Universal compatibility, precision stage movement, and ergonomic operation make it ideal for research and clinical labs. Achieve high-resolution imaging and reliable performance with interchangeable stage plates and advanced phase contrast options.
Tailored Applications & Advanced Surface Adaptability
The MAGNUS INVI (LED) microscope is preeminent for seamless live cell and tissue observation across a variety of culture vessels. Designed for research and clinical laboratories, it accommodates Petri dishes, flasks, and diverse plate sizes via interchangeable stage plates. Enhanced by anti-fungal optics and modular stage design, it excels in routine cell culture, stem cell research, and tissue engineering applications. Its ergonomic structure and LED illumination foster detailed, comfortable examinations over extended use.
Thoughtful Packaging, Market Value, and Certification Assured
Each MAGNUS INVI (LED) microscope is expertly packaged to prevent damage during transit and is quickly dispatched to ensure minimal delay. Every unit includes essential accessories such as a dust cover, spare fuse, bulb, and comprehensive user manual for optimal usage. Certified to meet rigorous laboratory standards, the distributor offers sample policies with reasonable charges reflecting true market value. Customers can trust in exemplary after-sales support and reliable delivery with complete paperwork.
Tailored Applications & Advanced Surface Adaptability
The MAGNUS INVI (LED) microscope is preeminent for seamless live cell and tissue observation across a variety of culture vessels. Designed for research and clinical laboratories, it accommodates Petri dishes, flasks, and diverse plate sizes via interchangeable stage plates. Enhanced by anti-fungal optics and modular stage design, it excels in routine cell culture, stem cell research, and tissue engineering applications. Its ergonomic structure and LED illumination foster detailed, comfortable examinations over extended use.
Thoughtful Packaging, Market Value, and Certification Assured
Each MAGNUS INVI (LED) microscope is expertly packaged to prevent damage during transit and is quickly dispatched to ensure minimal delay. Every unit includes essential accessories such as a dust cover, spare fuse, bulb, and comprehensive user manual for optimal usage. Certified to meet rigorous laboratory standards, the distributor offers sample policies with reasonable charges reflecting true market value. Customers can trust in exemplary after-sales support and reliable delivery with complete paperwork.
FAQ's of MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (LED):
Q: How does the MAGNUS INVI (LED) microscope benefit research and clinical laboratories?
A: The MAGNUS INVI (LED) microscope offers reliable, high-resolution observations of live cells and tissues, making it ideal for routine cell culture, research, and clinical diagnostics. Its infinity-corrected optics and ergonomic design support extended use without compromising quality.Q: What are the primary application areas for this inverted microscope?
A: This model is recommended for cell culture studies, tissue engineering, stem cell research, and clinical laboratory observations, with flexibility for various culture vessel sizes due to interchangeable stage plates.Q: How is the microscope packaged and what comes with it upon purchase?
A: The microscope is securely packaged to ensure safe transport. It comes with a dust cover, spare fuse, spare LED bulb, and a user manual to facilitate hassle-free setup and operation.Q: Where can I attach a digital camera for imaging and what image formats are supported?
A: A camera can be mounted directly to the trinocular port for simultaneous observation and digital imaging. Supported image formats depend on the attached camera and typically include JPG, PNG, or TIFF.Q: What is the process for adjusting the focus and stage movement?
A: Focus adjustments are performed using the coaxial coarse and fine focusing system, offering precision down to 0.002mm. The X-Y mechanical stage, guided by rack and pinion, provides smooth, accurate specimen movement up to 75mm x 50mm.Q: Are there any special features to enhance operational longevity and cleanliness?
A: Yes, the microscope frame is coated with a chemical-resistant finish, and the optics are anti-fungal, ensuring resilience and longevity even in demanding laboratory environments.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Inverted Microscope Category
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI PLUS (HL)
Price 239000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Features : Stable metal frame, ergonomic handle, antifungus treated optics, long working distance for culture flasks and Petri dishes.
Interpupillary Distance : Adjustable 55 mm to 75 mm.
Focus Range : Coarse and fine adjustment; smooth focusing mechanism with long working distance for culture flask observation.
Focus System : Coaxial coarse & fine adjustment system.
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (HL)
Price 204330.0 INR / Piece
Minimum Order Quantity : 1 Piece
Features : Long working distance objectives, antifungus coated optics, suitable for Petri dishes and culture flasks, phase contrast optional.
Interpupillary Distance : Adjustable from 48mm to 75mm.
Focus Range : Coarse and fine focus adjustment with tension control; total travel approx. 10mm.
Focus System : Coaxial coarse and fine adjustment with tension control.

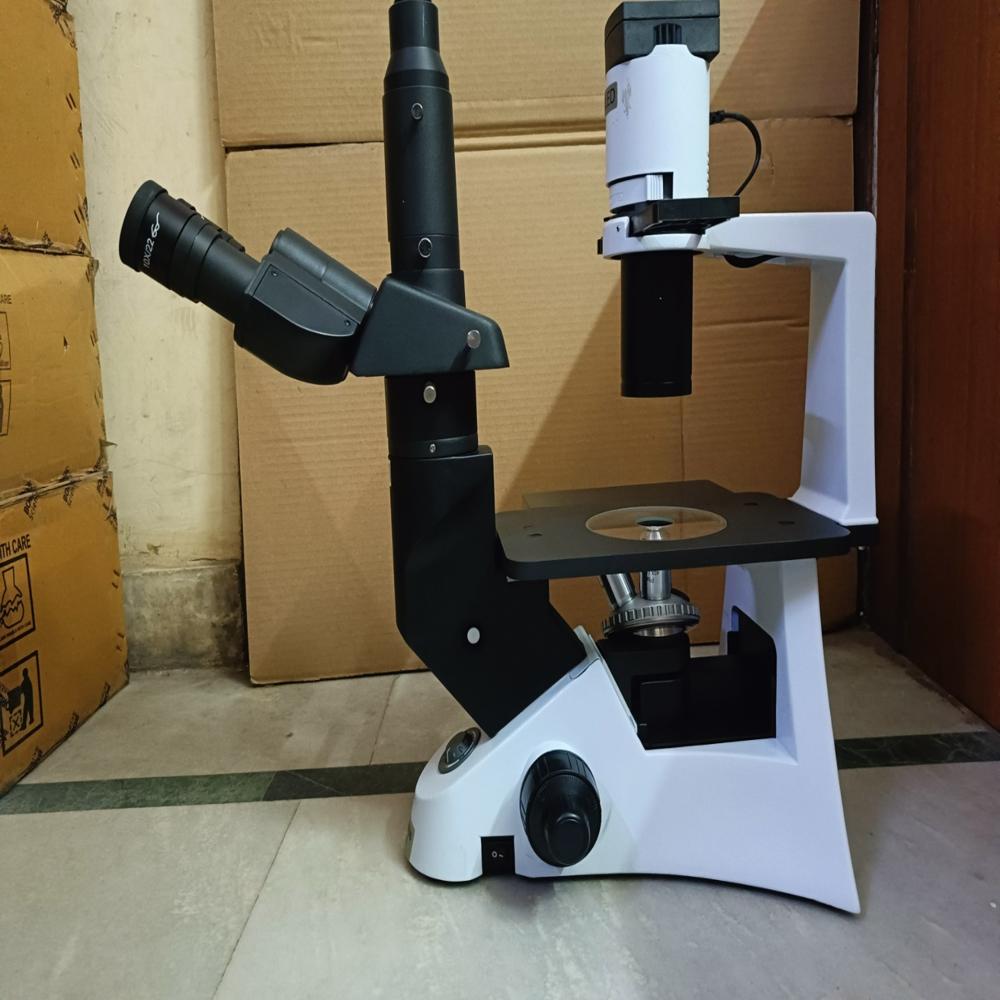

MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (HL) WITH ACCESSORIES:
