Send InquiryMAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (HL) WITH ACCESSORIES:
Price 279705.0 INR/ Piece
MOQ : 1 Piece
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (HL) WITH ACCESSORIES: Specification
- View Head
- Trinocular, 360 rotatable, split for camera interface.
- Spare Parts
- Supplied with fuse, spare halogen lamp, immersion oil, and dust cover.
- Features
- Anti-fungal optics, ergonomic design, suitable for live cell and tissue culture work.
- Focus System
- Coarse & fine coaxial focusing mechanism with tension adjustment.
- Theory
- Inverted microscope suitable for tissue culture and live cell observation in Petri dishes, flasks, and multi-well plates.
- Drawtube
- Trinocular head with 360 rotation and split ratio for photo/video documentation.
- Sensor
- Camera compatibility via photo port (sensor not included).
- Resolution
- Supports high-resolution digital imaging attachments.
- Interface
- C-mount adapter provided for digital camera integration.
- Frame Rate
- Camera dependent, up to 30 fps (with compatible imaging device).
- Focal Distance
- Adjustable based on objective lens used, typically 45 mm for standard objectives.
- Magnification
- Standard magnification ranges from 40X to 400X (with supplied objectives and eyepieces).
- Dimensions
- Approx. 540 mm (H) x 280 mm (W) x 390 mm (D).
- Focus Range
- Total focusing range approximately 10 mm, with fine adjustments as low as 2 m.
- Eyepieces
- Paired wide field 10X (FN 22 mm), with diopter adjustment.
- Eyepiece Tube
- Trinocular inclined at 45 for comfortable viewing.
- Illumination
- Built-in halogen lamp with adjustable intensity knob.
- Coarse Adjustment Range
- 15 mm mechanical range.
- Fine Adjustment Range
- 0.002 mm per graduation for precision focusing.
- Working Stage
- Rectangular mechanical stage with X-Y movement and built-in Petri dish holders.
- Still Image Capture Resolution
- Depends on camera attached, typical up to 5MP or higher.
- Video Capture Resolution
- Depends on camera attached; supports HD recording with suitable camera.
- Image Format
- Camera dependent (supports JPEG, TIFF, BMP via external imaging device).
- Interpupillary Distance
- Adjustable from 55 mm to 75 mm.
- Objective Achromatic
- Plan Achromatic objectives: 4X, 10X, 20X, 40X (Long Working Distance - LWD).
- Condenser
- Pre-centered phase/bright field condenser with slider, NA 0.30, LWD.
- Light Source
- 6V/30W halogen lamp, pre-centered, field diaphragm.
- Body
- Robust, anti-fungal coated, metallic construction for durability.
- Stage Movement
- Coaxial X-Y mechanical movement with resettable position controls.
- Condenser Adjustment
- Pre-centered, height-adjustable condenser system.

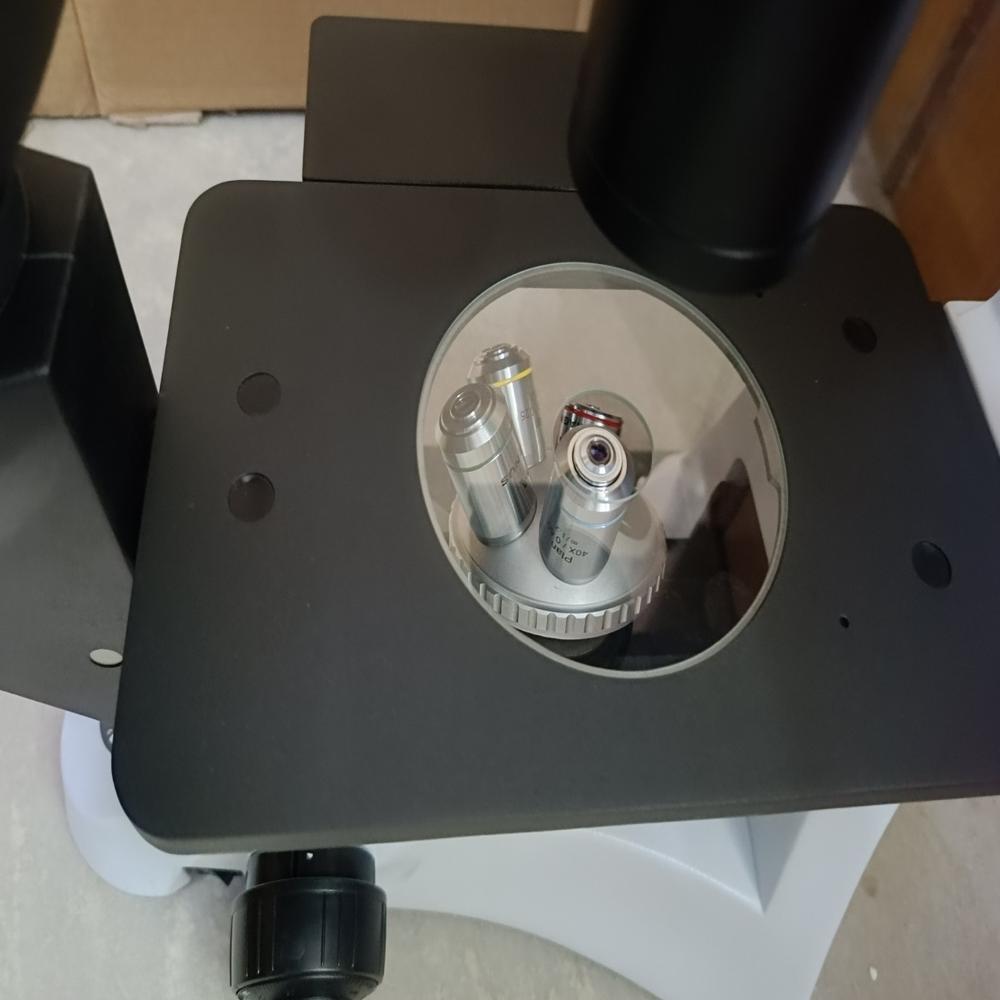

- Objective Nosepiece
- Backward quadruple nosepiece with smooth rotation.
- Safety Features
- Thermal cutoff and over-current protection in illumination system.
- Power Supply
- 220V AC, 50/60Hz standard (other voltages available on request).
- Stage Glass Plate
- Transparent glass plate for easy observation of bottom of dishes and flasks.
- Accessories Included
- Petri dish holder, multi-well plate holder, dust cover, immersion oil bottle, instruction manual.
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (HL) WITH ACCESSORIES: Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 5 Week
About MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (HL) WITH ACCESSORIES:
MAGNUS INVERTED TISSUE CULTURE TRINOCULAR MICROSCOPE MODEL INVI (HL) WITH
ACCESSORIES:
- with long working distance Plan Infinity Phase Contrast objective 40x/ 0.6 with annular plate,
- Attachable Mechanical Stage X -Y Coaxial Control, moving range 120 X 78 mm, Petri dish holder (
38 mm dia.) , slide glass holder & Terasaki Holder ( 38 mm dia.)
