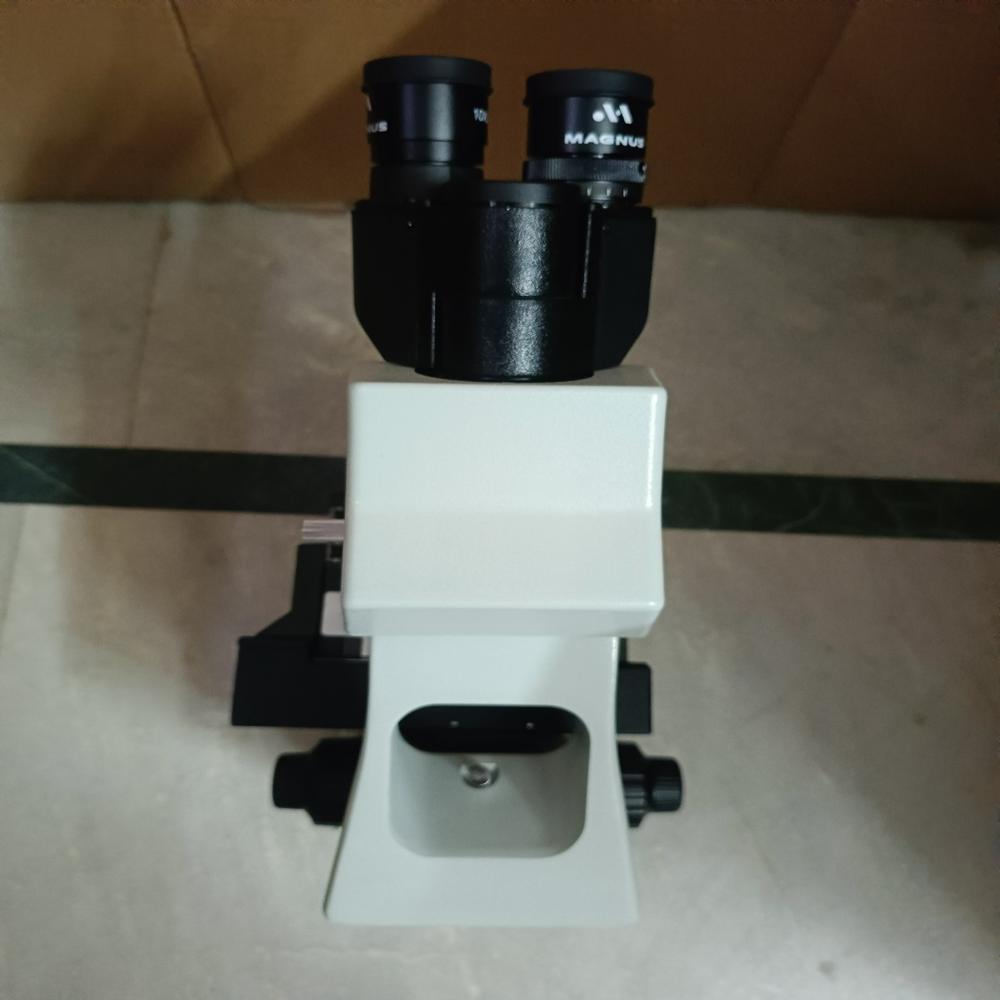

Magnus MX21i Tr FREEDOM Trinocular Microscope

Name: Magnus MX21i Tr FREEDOM Trinocular Microscope
Brand: M/S Uvsar India
Price: 84950.0 INR
Availability: InStock

Price 84950.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Magnus MX21i Tr FREEDOM Trinocular Microscope Specification

View Head
Trinocular, Siedentopf type, 360 rotatable

Spare Parts
Supplied with dust cover, immersion oil, extra fuse, power cord, and users manual

Focus System
Coaxial coarse and fine focusing system

Features
Ergonomic design, LED long life illumination, anti-fungal optics

Theory
Bright-field, Observation with digital imaging

Drawtube
Trinocular head, 30 inclined, 360 rotatable

Focal Distance
45 mm (Tube length approx.)

Magnification
40x to 1000x (using standard objectives and eyepieces)

Dimensions
Approx. 400 mm (H) x 230 mm (W) x 270 mm (D)

Focus Range
Coarse and fine focus adjustment, total range 20 mm

Eyepieces
Wide field WF 10x/20 mm with rubber guard

Eyepiece Tube
Siedentopf type, 30 inclined

Illumination
LED illumination with adjustable intensity

Coarse Adjustment Range
Approx. 20 mm

Fine Adjustment Range
Minimum 0.002 mm graduation

Working Stage
Double layer mechanical stage, size 140 x 135 mm, movement range 75 mm x 50 mm

Interpupillary Distance
48 - 75 mm, adjustable

Objective Achromatic
Achromatic 4x, 10x, 40x (spring loaded), 100x oil (spring loaded)

Condenser
Abbe condenser, N.A. 1.25 with iris diaphragm and filter holder

Light Source
Built-in LED lamp, 3W, variable intensity

Objective Length
Short barrel type

Diopter Adjustment
Provided on left eyepiece

Filter
Blue filter standard, slots for optional filters

Weight
Approx. 6.5 kg

Stage Size
140 x 135 mm

Power Supply
External power adapter included

Anti-fungal Treatment
All optics anti-fungal treated

Stage Movement
75 mm (X) x 50 mm (Y)

Voltage
110V - 240V AC, 50/60 Hz

Nosepiece
Quadruple revolving nosepiece, reverse type

About Magnus MX21i Tr FREEDOM Trinocular Microscope

Unlock new possibilities in microscopy with the Magnus MX21i Tr FREEDOM Trinocular Microscope. Designed for the enlightened researcher, this world-class instrument offers a triumphant blend of ergonomic innovation, precision, and versatility. The finely tuned Siedentopf trinocular head provides comfortable, 360 rotatable viewing, while the quad nosepiece and short barrel objectives deliver superior clarity from 40x to 1000x magnification. Features such as anti-fungal treated optics, LED adjustable illumination, and an advanced mechanical stage ensure reliable, long-lasting performance. Pick yours today and elevate your lab discoveries to a new level of excellence.

Advantage & Usage of Magnus MX21i Tr FREEDOM Trinocular Microscope

The Magnus MX21i Tr FREEDOM is ideal for both advanced research and general laboratory use. Its ergonomic design, wide field WF eyepieces, and precision focusing make it perfect for detailed sample observation and digital imaging. Whether you're examining biological samples or performing routine analysis, the microscope supports intensive usage with its robust construction and anti-fungal optics. This instrument is suited for professional labs and educational institutions seeking accuracy and comfort.

Sample Policy, Packaging, and Certifications for Magnus MX21i Tr FREEDOM

Magnus ensures safe goods transport with secure, high-quality packaging for every microscope. Each unit is supplied with essential accessories, including a dust cover, immersion oil, extra fuse, and power cord, as part of the sale price. Sample policy and exchange options can be discussed at purchase. Our product meets international certification standards, attesting to its safety and reliability in laboratory environments. The packaging guarantees product integrity during transit and delivery.

FAQ's of Magnus MX21i Tr FREEDOM Trinocular Microscope:

Q: How does the Magnus MX21i Tr FREEDOM benefit laboratory professionals?

A: The microscope delivers precise results with achromatic objectives and superior LED illumination, while its ergonomic design and anti-fungal treatment ensure comfortable, long-lasting daily use.

Q: What types of samples can be observed with this microscope?

A: The MX21i Tr FREEDOM is suitable for a broad range of biological, research, and educational samples, supporting general and advanced microscopy applications.

Q: What is the process for adjusting magnification and focus on this model?

A: Magnification is controlled via the quadruple revolving nosepiece, switching between 4x, 10x, 40x, and 100x objectives. Coarse and fine coaxial focus adjustments allow for sharp and detailed imaging.

Q: Where can I use the Magnus MX21i Tr FREEDOM Trinocular Microscope?

A: This model is well-suited for professional laboratories, academic institutions, and clinical settings that demand reliability and high-performance imaging.

Q: When is an exchange possible if there is an issue with the product?

A: Exchange policies are available upon purchase. If any defect or issue arises upon delivery, contact your distributor or supplier promptly for assistance.
