MAGNUS ADVANCE LABORATORY TRINOCULAR MICROSCOPE MODEL MLXi Tr Plus PRO Freedom WITH AUTO LED OFF

Price 76730.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAGNUS ADVANCE LABORATORY TRINOCULAR MICROSCOPE MODEL MLXi Tr Plus PRO Freedom WITH AUTO LED OFF Specification

Focus System
Coaxial coarse and fine adjustment, tension adjustable.

View Head

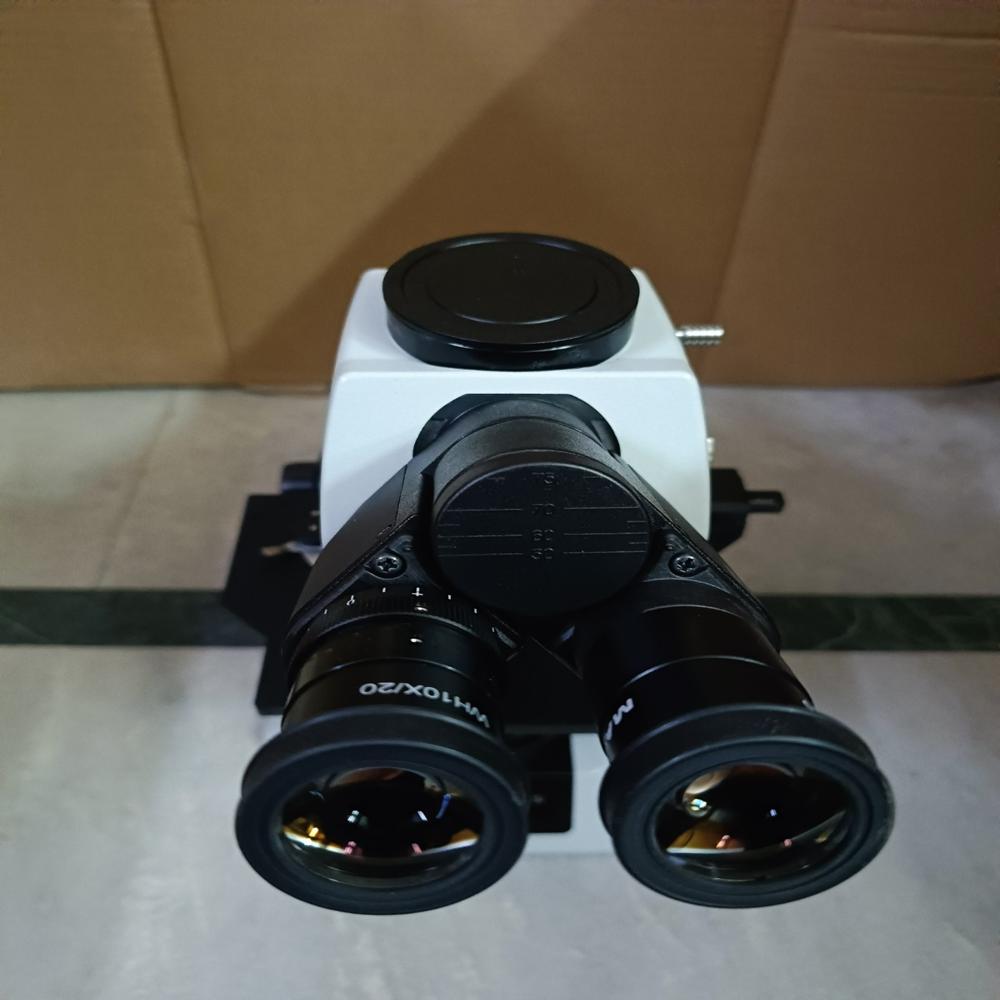

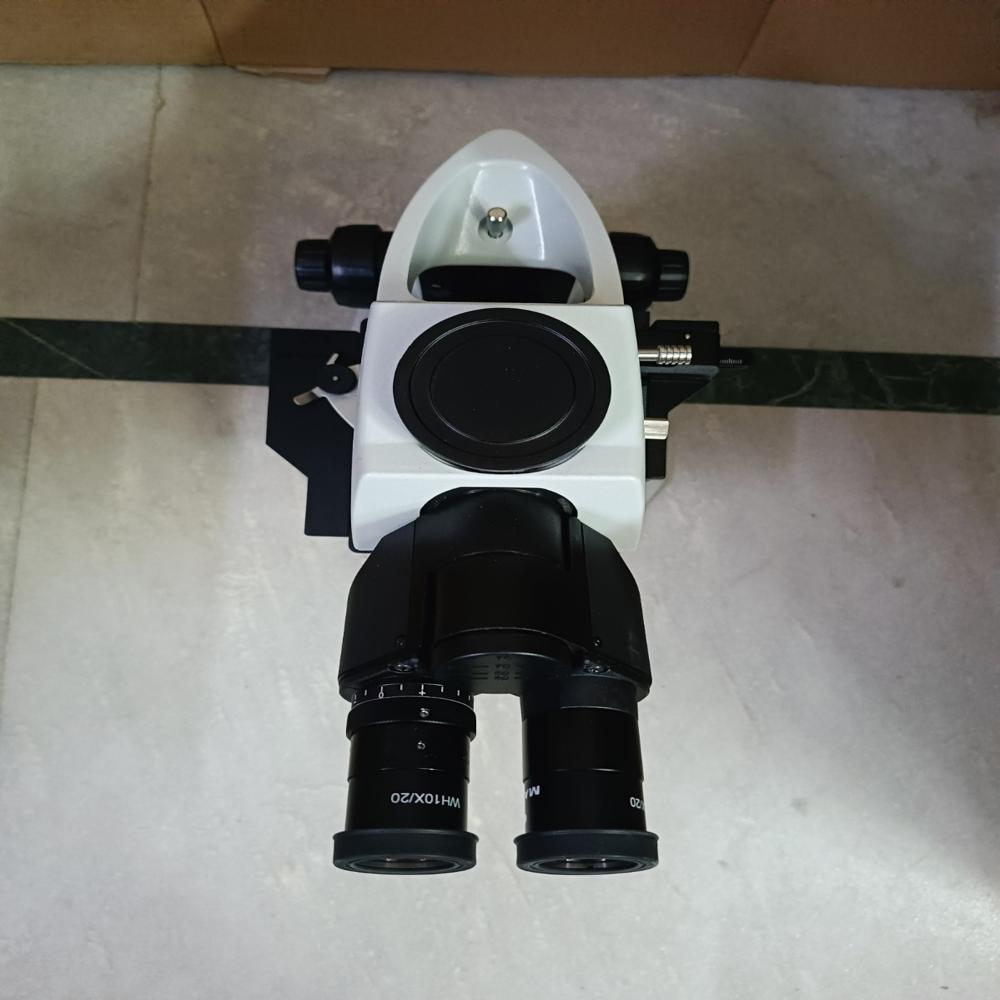

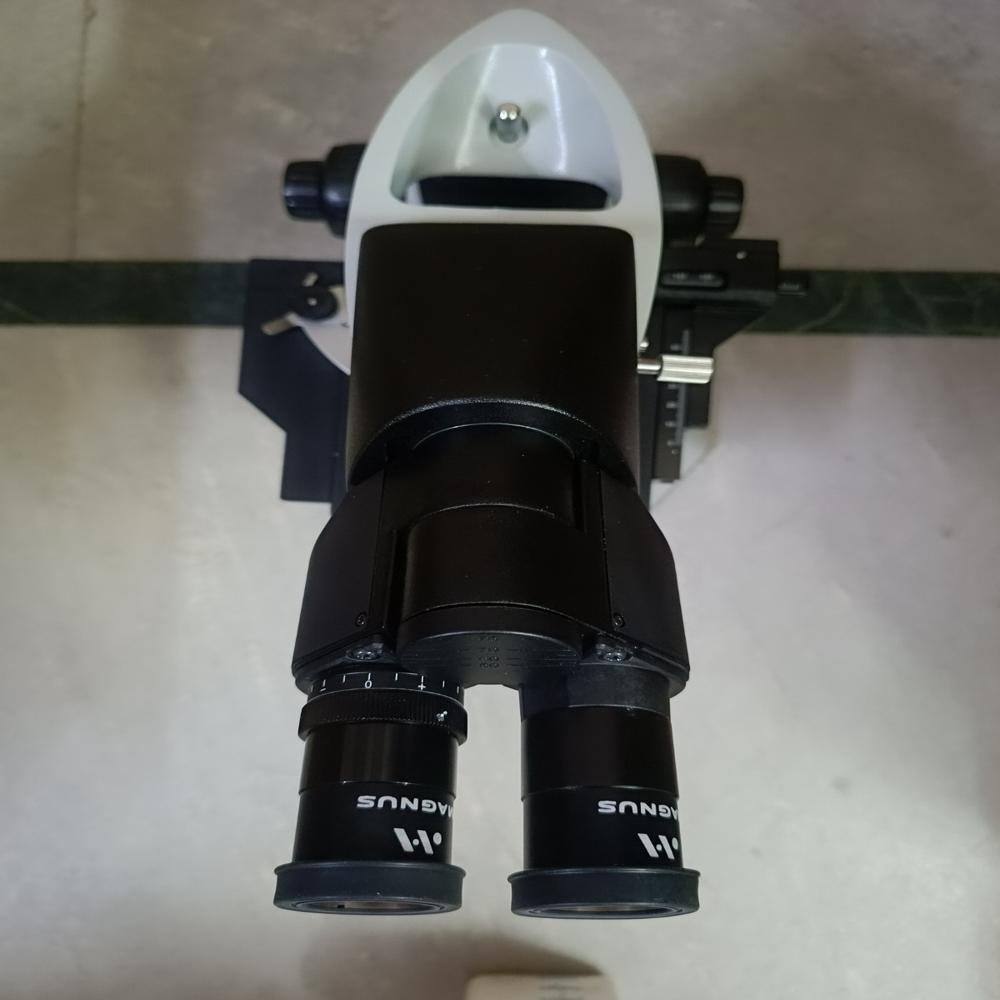

Trinocular, 30 inclined, 360 rotatable.

Features
Auto LED off function, anti-fungal optics, robust metal body for stability, integrated carrying handle.

Spare Parts
Supplied with spare bulb, fuse, and dust cover.

Theory
Advanced Laboratory Trinocular Microscope suitable for detailed professional analysis and laboratory research.

Drawtube
Trinocular 360 rotatable head with 30 inclined viewing, allowing comfortable prolonged observation and easy camera attachment.

Sensor
Supports digital imaging through optional camera adapter (camera not included).

Resolution
High optical resolution with plan achromatic objectives; digital resolution depends on attached camera.

Interface
Trinocular port for image/video documentation; mechanical stage with coaxial controls.

Frame Rate
Depends on attached digital camera (not included).

Focal Distance
Adjustable via coarse and fine focusing mechanism; designed for precise sample focus at various objective lengths.

Magnification
40x to 1000x (using 4x, 10x, 40x, 100x objectives and standard 10x eyepieces).

Dimensions
Approx. 420mm (height) x 200mm (width) x 350mm (depth).

Focus Range
Coarse adjustment up to 20mm; fine adjustment graduations of 0.002mm.

Eyepieces
Wide Field 10x/20mm paired eyepieces with rubber eye guards, anti-fungal coatings.

Eyepiece Tube
Trinocular tube, 30 inclined, 360 rotatable with diopter adjustment.

Illumination
High-brightness LED illumination with intensity adjustment and auto LED off function for energy saving.

Coarse Adjustment Range
20mm movement via low-position coaxial coarse focus knob.

Fine Adjustment Range
0.002mm precision; fine focus coaxially mounted.

Working Stage
Double-layer mechanical stage, 140 x 135mm with 75 x 50mm XY movement and vernier scale for precise slide navigation.

Still Image Capture Resolution
Depends on camera used.

Video Capture Resolution
Depends on camera used.

Image Format
Supports digital camera adapters for standard image and video formats (via camera).

Interpupillary Distance
Adjustable from 48mm to 75mm.

Objective Achromatic
DIN Plan Achromatic 4x, 10x, 40x (spring loaded), 100x (oil, spring loaded).

Condenser
Abbe condenser, N.A. 1.25 with iris diaphragm and filter holder.

Light Source
Built-in LED illumination with variable intensity and auto-off feature.

Stage Size
140 x 135mm with 75 x 50mm XY travel range.

Model
MLXi Tr Plus PRO Freedom with AUTO LED OFF

Diopter Adjustment
Provided on one eyepiece for vision correction.

Accessory Port
Trinocular port allows installation of C-mount or SLR camera adapters.

Body Material
Sturdy, die-cast aluminum alloy base with anti-vibration feet.

Power Consumption
Low power consumption due to efficient LED system.

Stage Movement
X-Y low drive mechanical stage for smooth and precise movement during sample scanning.

Finish
Smooth, chemical-resistant enamel coating for durability.

Voltage
Universal input, 100-240V AC, 50/60Hz.

MAGNUS ADVANCE LABORATORY TRINOCULAR MICROSCOPE MODEL MLXi Tr Plus PRO Freedom WITH AUTO LED OFF Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Week

About MAGNUS ADVANCE LABORATORY TRINOCULAR MICROSCOPE MODEL MLXi Tr Plus PRO Freedom WITH AUTO LED OFF

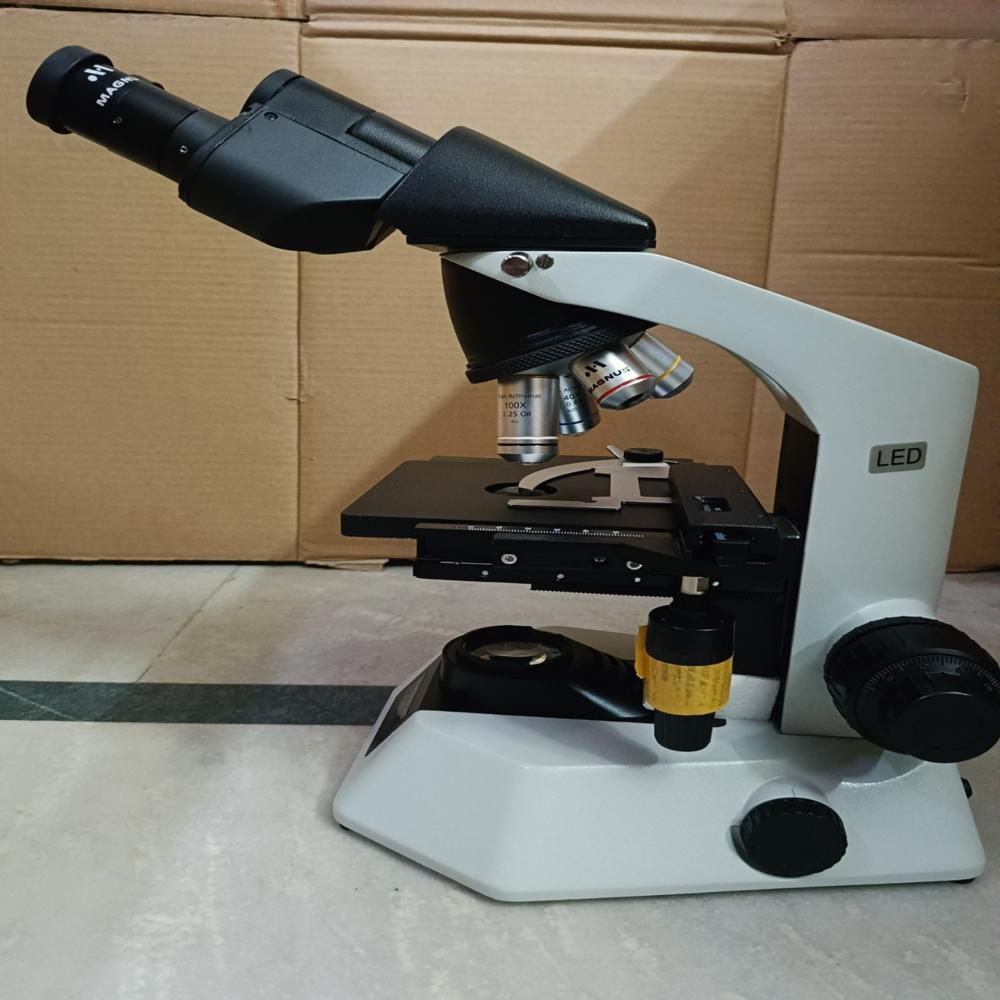

MODEL MLXi Tr Plus PROFreedom complete with LED illumination with battery back, ( with Auto LED Off feature) universalSMPS power supply for mains supply 100V240V, quintuple ball bearing inward nosepiece, coaxialcoarse and fine focusing control, high resolution Infinity corrected Super Plan AchromaticObjectives 4x, 10x, 20x, 40x (spring), 100x oil (spring), 360 degree rotatable inclined Siedentopftrinocular observation tube with eyepoint height adjustment , fungus resistant coated optics fortropical conditions, widefield paired eyepiece WH10x (F.N.22) with one eypeiece having dioptersetting, right hand control co-axial low drive rackless mechanical stage with single slide holder,rack & pinion drive focusable Abbe condenser 0.9/ 1.25 N.A with iris diaphragm & cord holder.

High-Precision Mechanical Stage

The MLXi Tr Plus PRO Freedom microscope features a double-layered, low-drive mechanical stage with a spacious 140 x 135mm surface and 75 x 50mm X-Y travel range. This design ensures smooth and finely controlled specimen movement, vital for scanning samples in detail or documenting regions of interest with accuracy. The vernier scale further augments slide navigation, making each movement both repeatable and precise.

Advanced Illumination with Auto LED Off

Utilizing an efficient, high-brightness LED system, this microscope provides vibrant, adjustable lighting while conserving energy. The integrated auto LED off function ensures power is saved by turning off illumination when not in use, reducing overall power consumption and heat, which enhances the durability and safety of laboratory operations.

Trinocular Viewing and Digital Imaging Ready

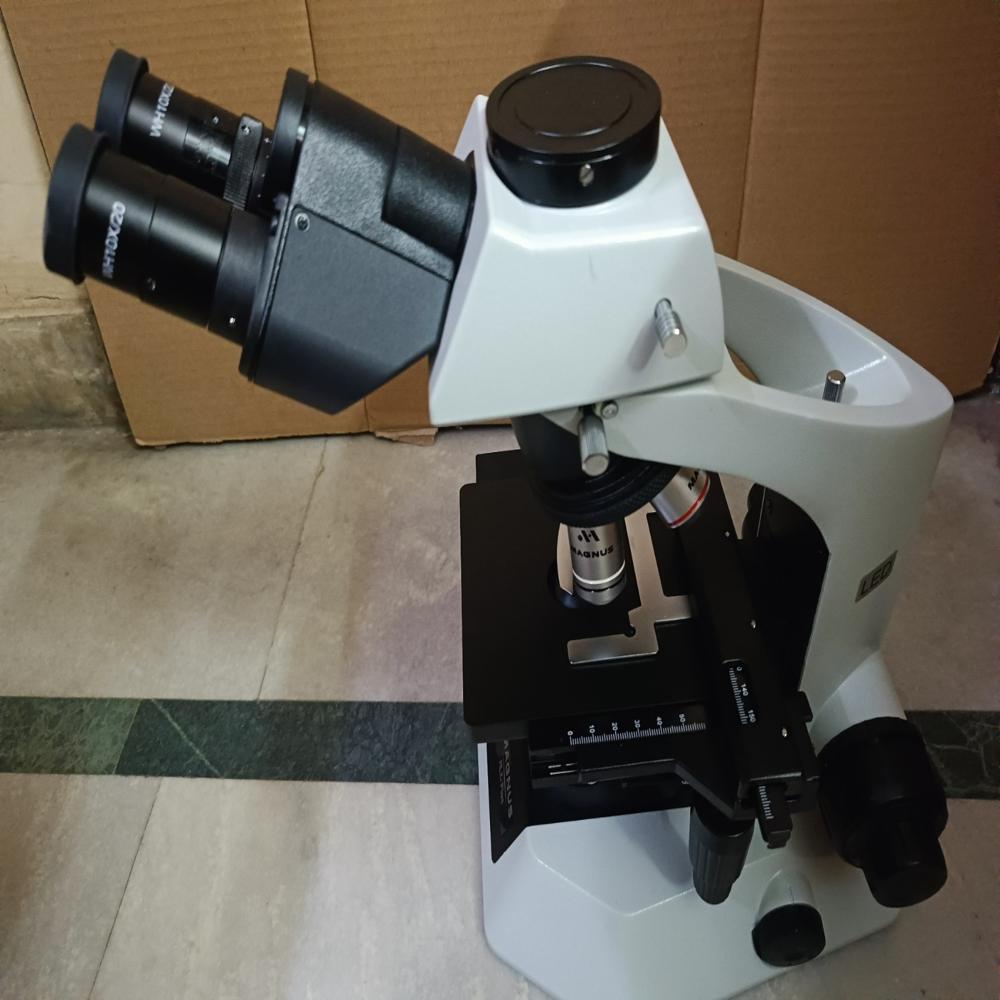

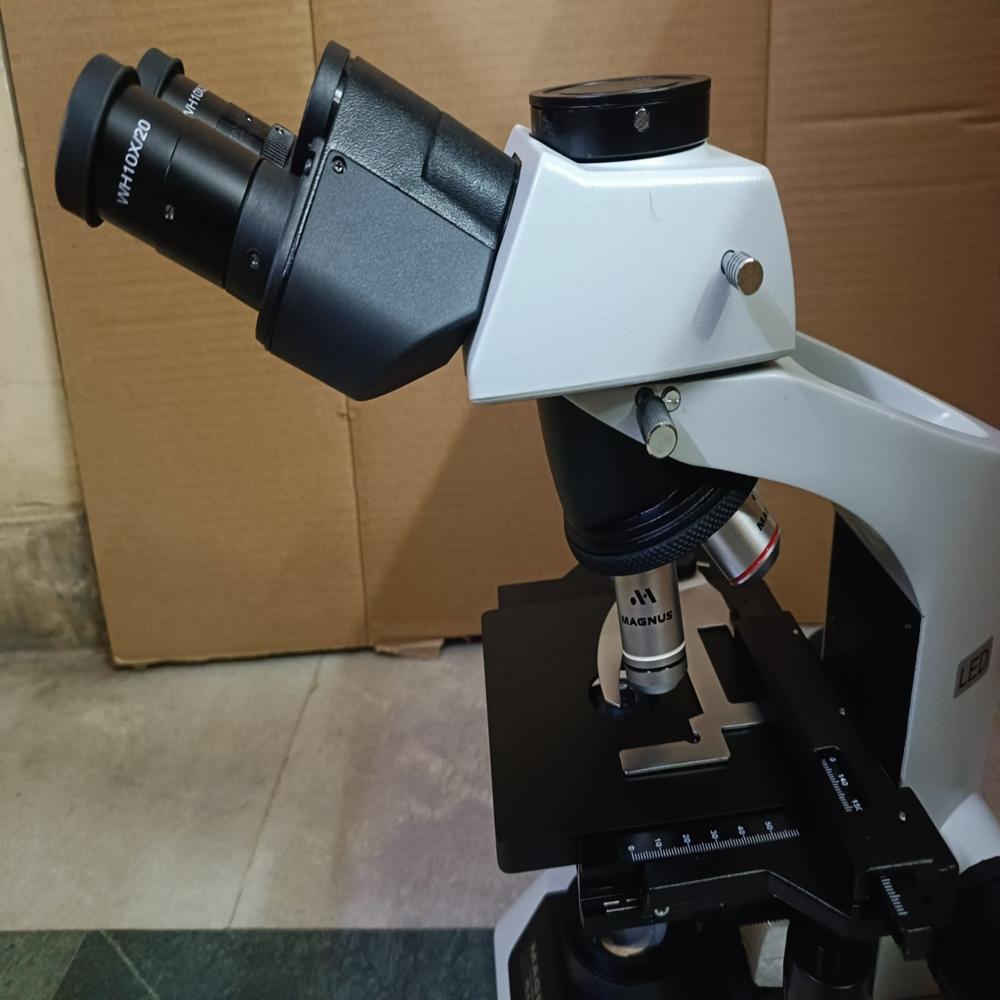

Designed as a trinocular unit, the microscope offers a comfortable 30 inclined viewing head that rotates 360 for flexible use. The trinocular port allows for easy integration with C-mount or SLR camera adapters, facilitating the capture of high-quality still images and videos when paired with a compatible digital camera. This feature streamlines documentation and sharing of findings.

FAQ's of MAGNUS ADVANCE LABORATORY TRINOCULAR MICROSCOPE MODEL MLXi Tr Plus PRO Freedom WITH AUTO LED OFF:

Q: How do I adjust the focus on the MLXi Tr Plus PRO Freedom microscope?

A: Focus adjustment is achieved using the coaxial coarse and fine focus knobs, conveniently placed for easy operation. The coarse knob allows up to 20mm of movement for quick focusing, while the fine adjustment provides precision control with 0.002mm graduations, ensuring perfect sample clarity at all magnification levels.

Q: What benefits does the auto LED off function offer in daily laboratory use?

A: The auto LED off function automatically switches off the illumination after a period of inactivity, reducing energy consumption and extending the lifespan of the LED light source. This feature also helps prevent accidental overheating and increases overall safety and cost-efficiency in laboratory environments.

Q: When should I use the trinocular port, and what does it support?

A: The trinocular port is ideal for scenarios requiring image or video documentation, such as presentations, research, or archiving sample observations. It supports C-mount and SLR camera adapters, enabling seamless attachment of digital cameras to capture and store high-resolution images or videos of specimens (camera not included).

Q: Where can I adjust for vision differences between my eyes?

A: A diopter adjustment is provided on one of the eyepieces. This allows users to compensate for vision variances between their eyes, delivering a sharp, comfortable viewing experience especially during extended observation sessions.

Q: What process should I follow to move the stage smoothly for sample scanning?

A: Use the low-drive mechanical stage controls to precisely navigate your slides. The stage size (140 x 135mm) and X-Y travel range (75 x 50mm) are engineered for effortless and exact movement. The vernier scale helps track position and ensures sample areas can be reliably revisited.

Q: How does the microscope ensure long-term durability and stability?

A: The body is crafted from a sturdy, die-cast aluminum alloy with anti-vibration feet and a chemical-resistant enamel coating. These materials and finishes protect the instrument from daily wear, lab chemicals, and minimize disruption from vibrations, ensuring long-term accuracy and resilience.

Q: What are the optical benefits of the plan achromatic objectives and anti-fungal coatings?

A: The DIN Plan Achromatic 4x, 10x, 40x (spring loaded), and 100x oil objectives provide flat, high-resolution images across the entire field of view. The anti-fungal coatings on optics prevent fungal growth, preserving image clarity and extending the life of the eyepieces and objectives in humid conditions.
