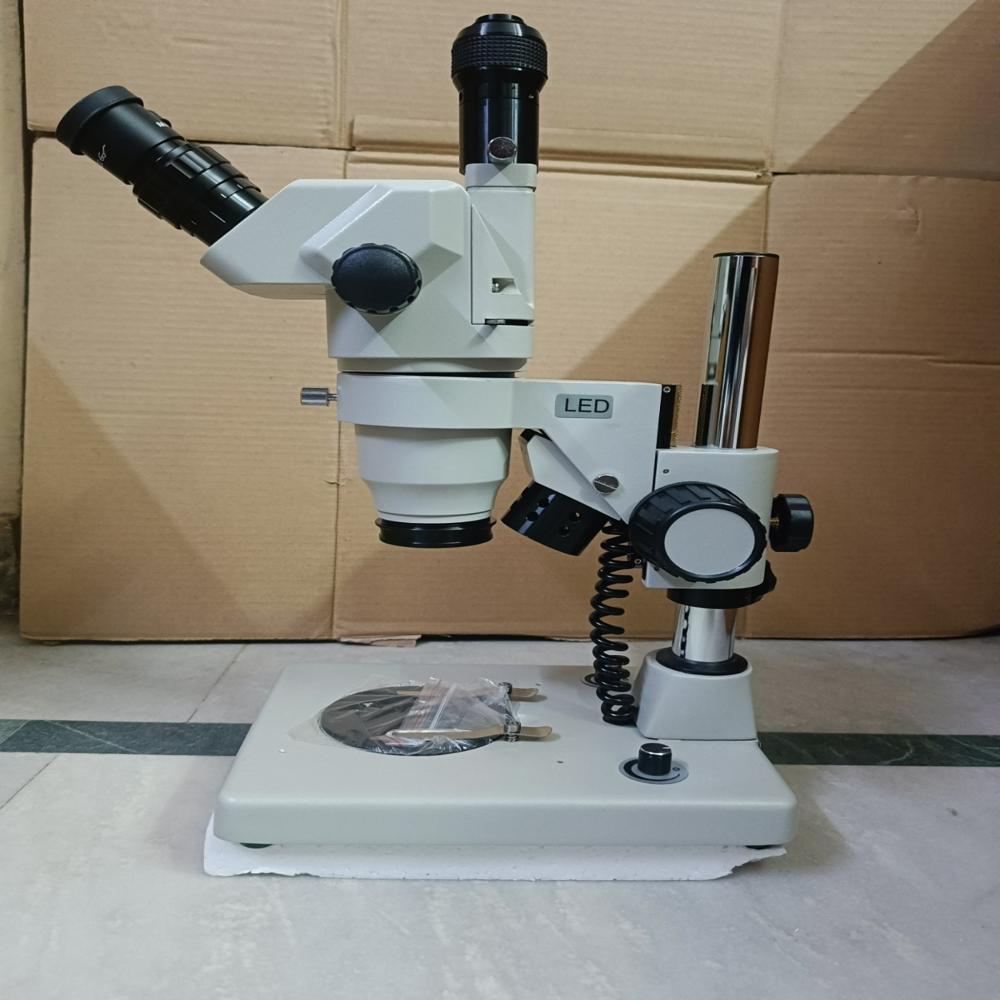

MSZ-TR LED Trinocular Microscope Magnus Stereozoom

Name: MSZ-TR LED Trinocular Microscope Magnus Stereozoom
Brand: M/S Uvsar India
Price: 117970.0 INR
Availability: InStock

Price 117970.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MSZ-TR LED Trinocular Microscope Magnus Stereozoom Specification

Focus System

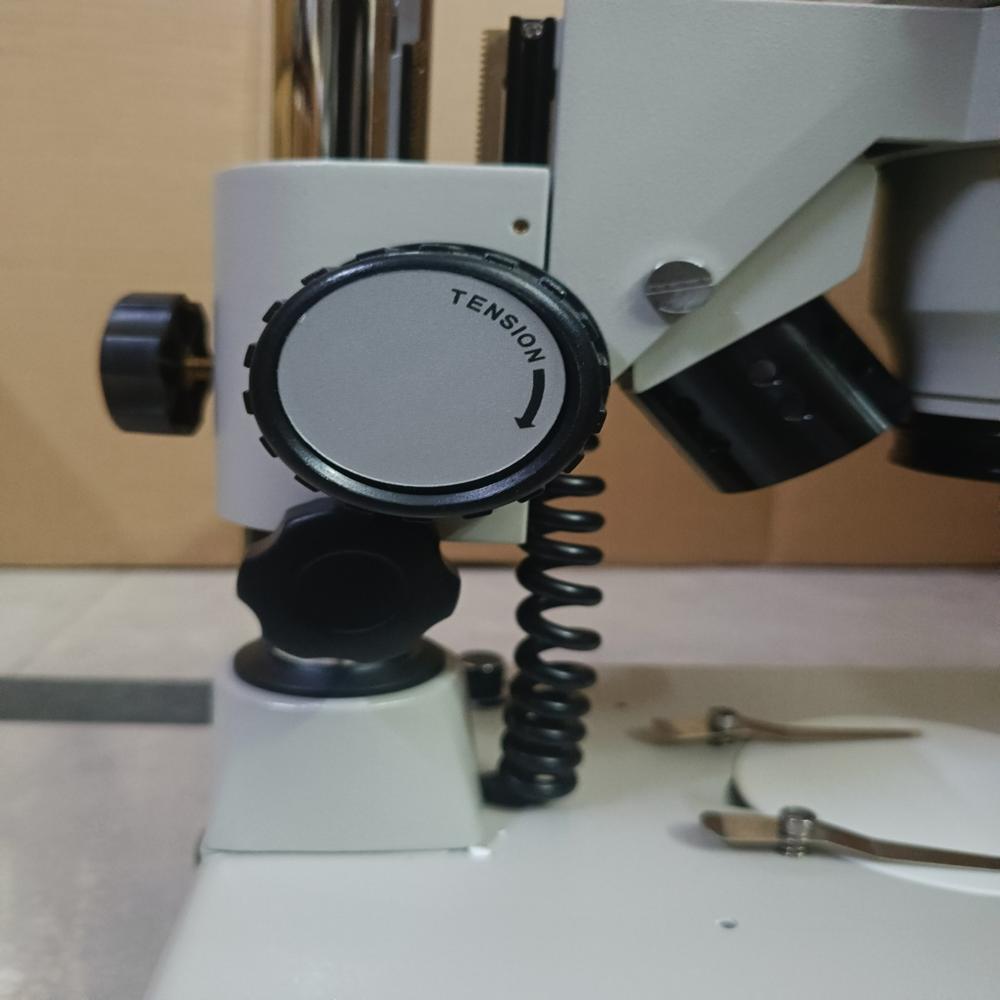

Coarse focusing with adjustable tension control

Spare Parts
Supplied with dust cover, spare fuse, and extra LED modules

Features
LED Illumination, ergonomic design, long working distance, 360 rotatable head, rugged construction

View Head

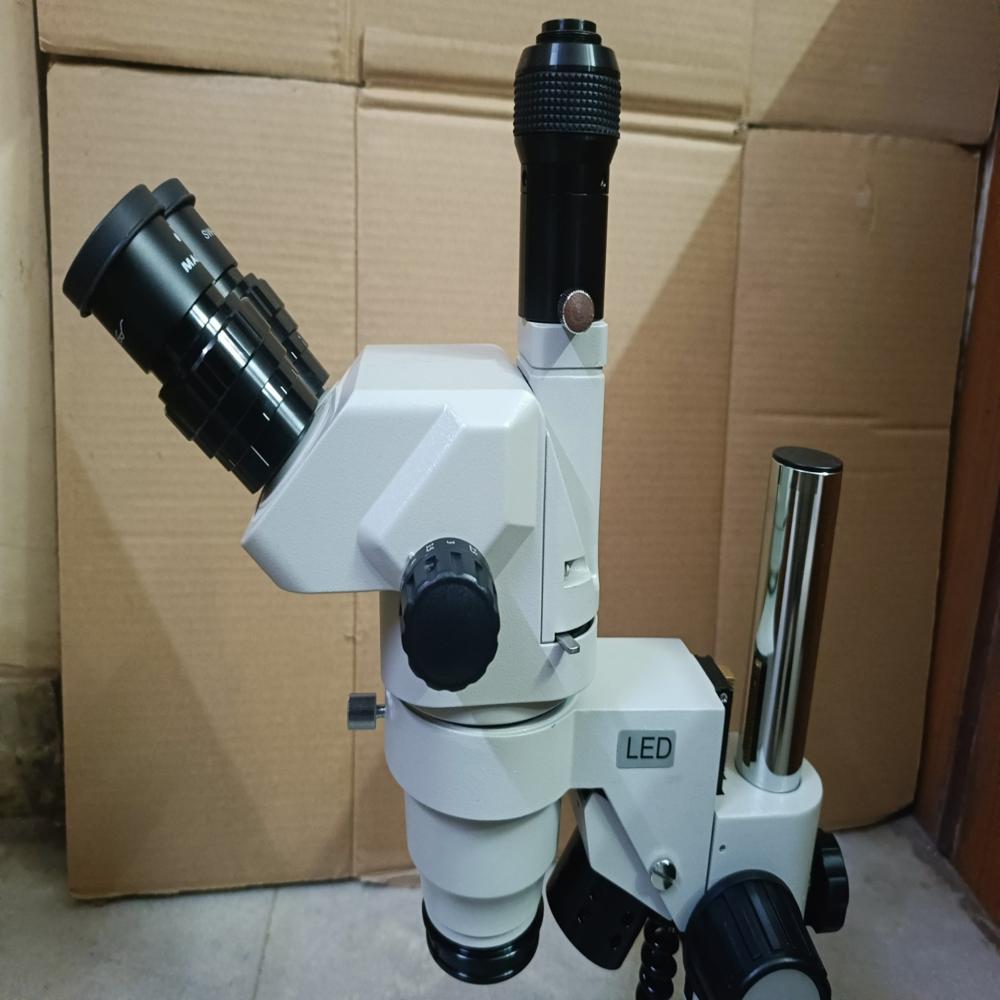

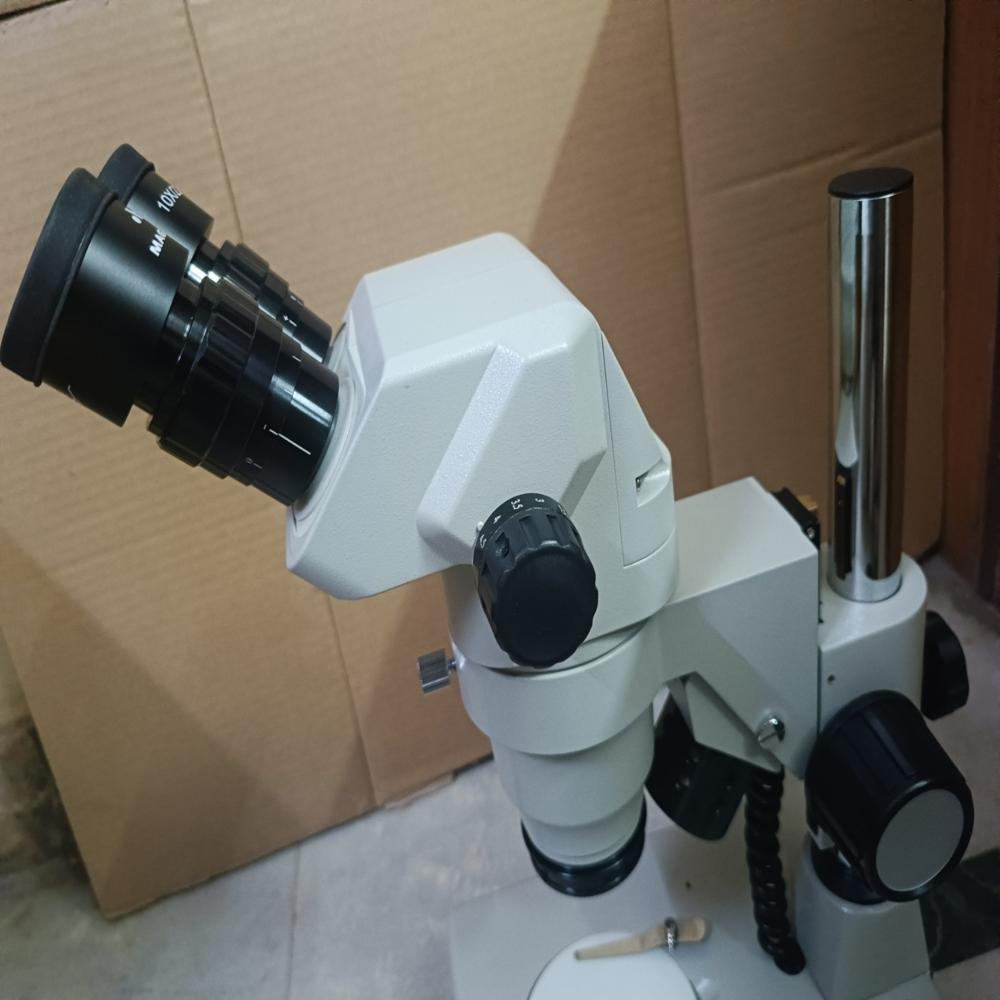

Trinocular, 360 rotatable, inclined 45

Theory
Stereozoom Optical System for three-dimensional viewing.

Drawtube
Trinocular

Sensor
Not Applicable (Manual Viewing)

Interface
Trinocular Port for Camera Attachment

Focal Distance
100 mm (Standard Working Distance)

Magnification
Zoom Range 7x to 45x, extendable with auxiliary lens and eyepiece options

Dimensions
Approx. 260 x 200 x 340 mm (L x W x H)

Focus Range
Adjustable via focus knob, approx. 50 mm (coarse focus travel)

Eyepieces
10x Widefield Eyepieces with rubber eye guards (optional 15x and 20x available)

Eyepiece Tube
Inclined at 45, Interpupillary distance adjustable 55 mm to 75 mm

Illumination
Top and Bottom LED Illumination, intensity adjustable, cool daylight color temperature

Coarse Adjustment Range
50 mm, via rack and pinion mechanism

Fine Adjustment Range
Not specified for this model

Working Stage
Large Frosted Glass Stage Plate & Black/White Contrast Plate; 95 mm diameter

Still Image Capture Resolution
Not applicable (Depends on camera used with trinocular port)

Video Capture Resolution
Not applicable (Depends on camera used with trinocular port)

Image Format
Not applicable (visual output; supports camera attachment via trinocular port)

Interpupillary Distance
55-75 mm adjustable

Objective Achromatic
0.7x to 4.5x Zoom Objective (Stereo Achromatic Optics)

Condenser
Not applicable (Stereo Microscope)

Light Source
Dual LED (Incident & Transmitted), long-life LEDs, adjustable intensity

Power Supply
AC 220/110V, 50/60 Hz; built-in LED circuit with external power adapter

Operating Conditions
Ideal for temperatures 5C to 40C, relative humidity below 85%

Head Rotation
360 rotatable for convenient multi-user observation

Eyepiece Support
Accepts anti-fungal, anti-reflective coated eyepieces

Weight
Approx. 7.5 kg (including base and head)

Auxiliary Lens Compatibility
Supports 0.5x and 2x Additional Lenses (optional)

Stage Clips
Provided for specimen holding

Body Construction
Metal alloy stable base and arm with anti-rust finish

Application
Industrial, biological research, gemology, PCB Inspection, and routine observation

MSZ-TR LED Trinocular Microscope Magnus Stereozoom Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
6 Week

About MSZ-TR LED Trinocular Microscope Magnus Stereozoom

Magnus Zoom Stereo Trinocular Microscope Model MSZ-TR (LED) same as 'MSZ-TR' but with LEDlight source instead of standard light source.117970MAGNUS STEREOZOOM MICROSCOPE (NEW MODEL

It has a large visual field & high diopter. It can be used extensively for medicalapplications, Inspection of gems, electronic components & precision machinery components

Precision Optics with Enhanced Flexibility

This microscope employs stereo achromatic optics with a range of 0.7x to 4.5x, providing crisp, three-dimensional images across applications such as industry, biology, and gemology. Auxiliary lens compatibility allows users to expand magnification further, while widefield eyepieces offer extensive, user-friendly viewing options.

Ergonomic, Durable, and User-Oriented Design

Built from high-grade metal alloy with an anti-rust finish, the stable base and arm ensure durability. The 360 rotatable trinocular head, adjustable interpupillary distance, and inclined eyepiece tube support comfort during prolonged observations, making it suitable for multi-user environments and extended sessions.

Advanced Illumination and Imaging Capabilities

Equipped with top and bottom LED illumination, the microscope provides adjustable, cool daylight lighting for both incident and transmitted observations. The trinocular port readily accepts cameras, supporting digital image and video capture for further documentation and analysis (camera not included).

FAQ's of MSZ-TR LED Trinocular Microscope Magnus Stereozoom:

Q: How do I adjust the magnification on the MSZ-TR LED Trinocular Microscope?

A: You can adjust the magnification by turning the zoom control knob, which provides a range from 7x to 45x using the standard optics. This range can be extended by attaching optional auxiliary lenses (0.5x or 2x) or different eyepiece magnifications, allowing finer or broader views of your specimens.

Q: What tasks is this microscope best suited for?

A: The MSZ-TR is ideal for industrial inspection, biological research, gemstone evaluation, printed circuit board (PCB) examination, and routine sample observations. Its three-dimensional optical system and broad zoom range make it versatile for various professional and educational settings.

Q: How do I attach a camera to the trinocular port, and what image quality can I expect?

A: To use the camera function, attach a compatible camera (not included) to the trinocular port on the head. The image and video resolution will depend on your chosen camera. The microscope itself provides clear optical output, while the digital quality is determined by the camera specifications.

Q: Where should I use this microscope for optimal performance?

A: For the best results, operate the MSZ-TR Microscope in environments with temperatures between 5C and 40C and relative humidity below 85%. These conditions help maintain image clarity and ensure the longevity of components.

Q: What is the process for adjusting the illumination?

A: The microscope features top and bottom LED illumination systems. You can easily adjust the intensity using dedicated controls for each LED, allowing you to balance transmitted and incident light to achieve optimal contrast and visibility on various samples.

Q: What benefits does the stereozoom optical system provide?

A: The stereozoom system delivers sharp, three-dimensional views with continuous zoom capability. This allows you to examine the surface structure of specimens in depth, making it easier to conduct detailed inspections and manipulate samples during observation.
