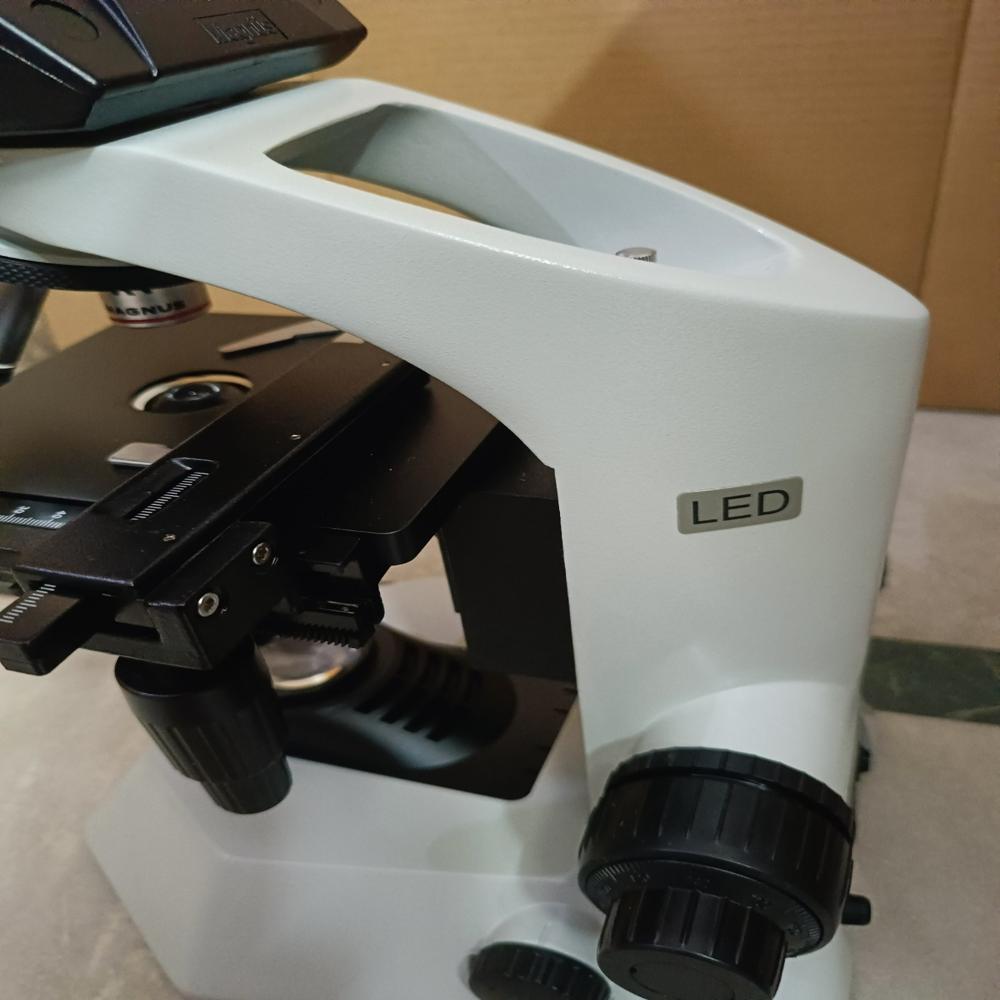

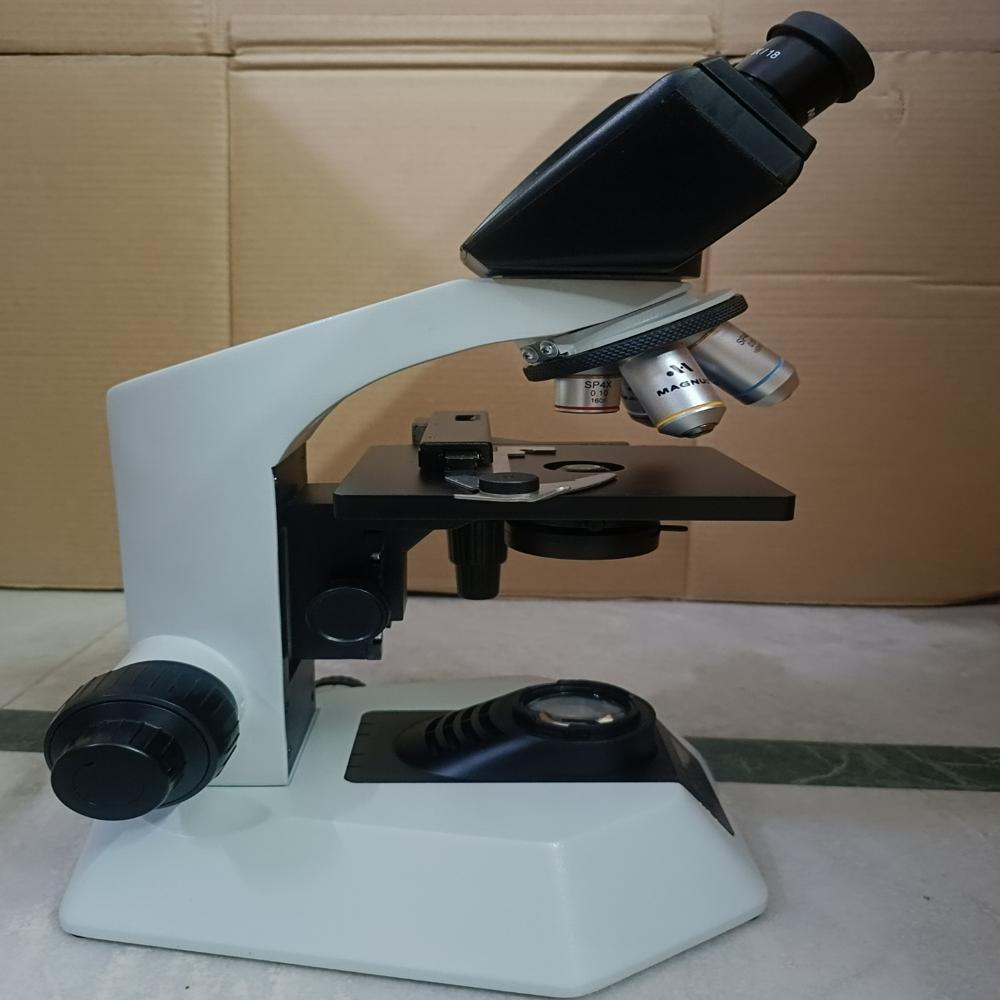

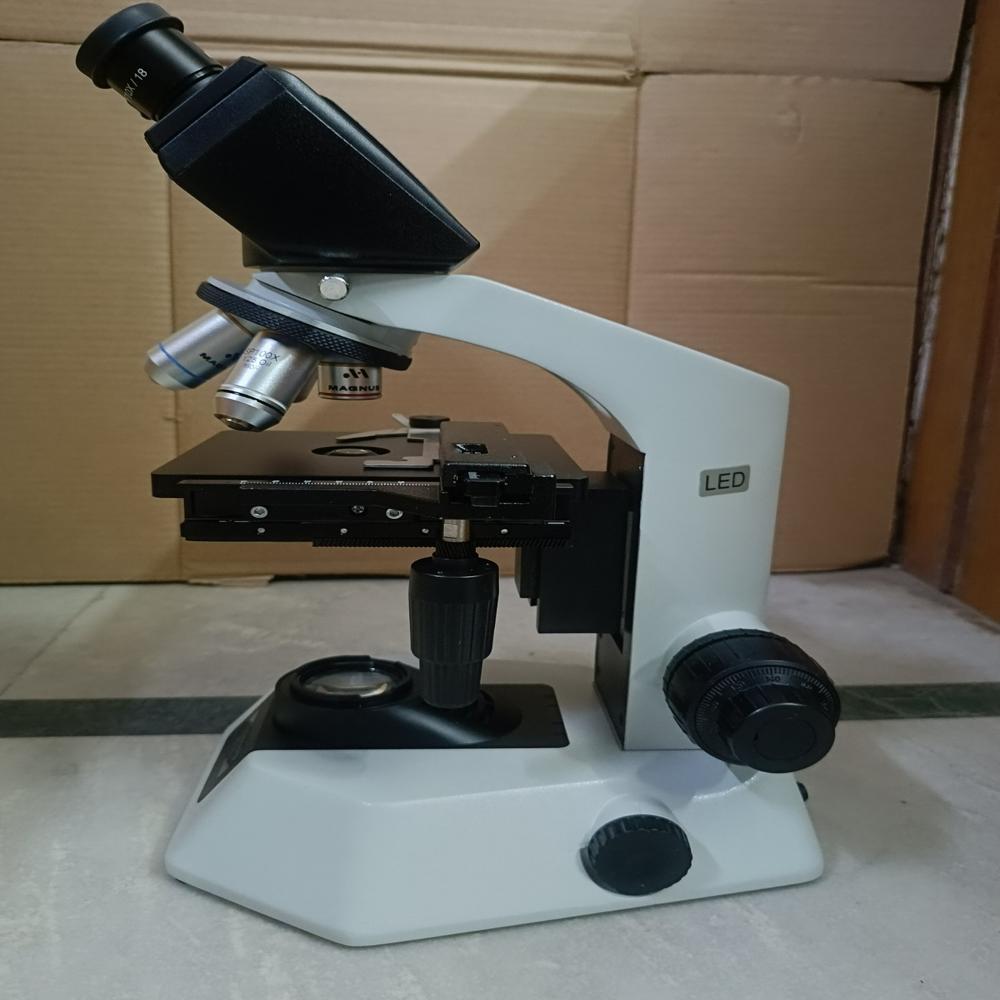

MODEL MLX-M Plus LED

Name: MODEL MLX-M Plus LED
Brand: M/S Uvsar India
Price: 40405.0 INR
Availability: InStock

Price 40405.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MODEL MLX-M Plus LED Specification

Spare Parts
Lamp, fuse, power adapter included

Features
Digital imaging, real-time viewing, high contrast optical system

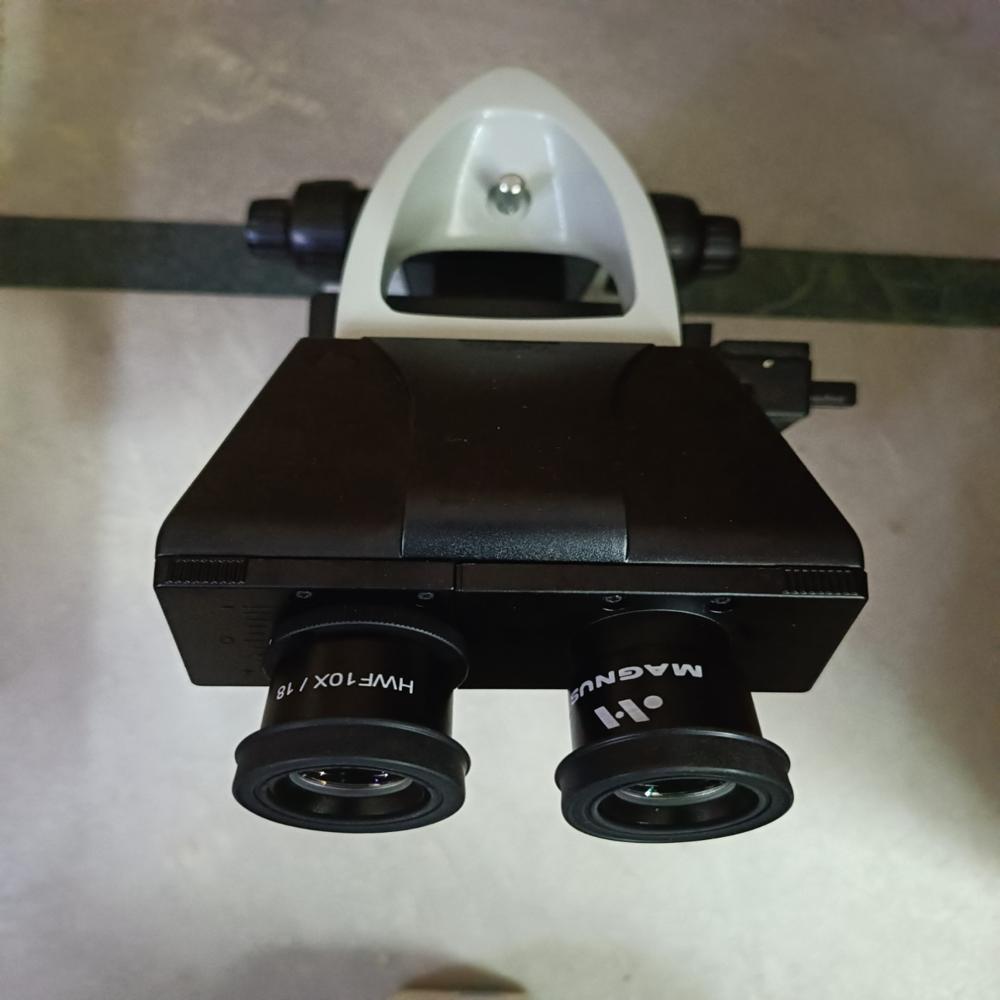

View Head
Monocular / Trinocular, rotatable 360

Focus System
Coarse and fine coaxial focusing

Theory
Monocular Compound Microscopy

Drawtube
Trinocular or Monocular

Sensor
Built-in digital camera 2MP / 5MP available

Resolution
1920 x 1080 Pixel (Full HD)

Interface
USB 2.0 / HDMI

Frame Rate
30 FPS

Focal Distance
45 mm

Magnification
40x to 1000x

Dimensions
330 x 200 x 400 mm

Focus Range
Low and Fine Adjustment

Eyepieces
Wide Field WF10x/18mm

Eyepiece Tube
Inclined at 45

Illumination
High-brightness white LED with adjustable intensity

Coarse Adjustment Range
15 mm

Fine Adjustment Range
0.002 mm precision

Working Stage
Double layer mechanical stage 125 x 115 mm with low positioned coaxial controls

Still Image Capture Resolution
2MP / 5MP, depending on camera model

Video Capture Resolution
Full HD 1920 x 1080

Image Format
JPEG / BMP

Interpupillary Distance
55 mm - 75 mm (on trinocular version)

Objective Achromatic
4x, 10x, 40x (S), 100x (S, Oil)

Condenser
NA 1.25 Abbe condenser, iris diaphragm

Light Source
LED 3W, adjustable

Humidity Tolerance
85% RH (non-condensing)

Storage Temperature
-20C to 55C

Operating Temperature
5C to 40C

Camera Software
Image analysis, measurement, and editing software included

Power Supply
100-240V AC, 50/60Hz Adapter

Operating System Compatibility
Windows 7/8/10 and above

Anti-fungal Coatings
Optics fully anti-fungal treated

Stage Movement
76 x 36 mm (X-Y travel)

Stage Clip
Double slide holder

Net Weight
Approximately 6 kg

Body Material
Heavy-duty die cast aluminum

MODEL MLX-M Plus LED Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Days

About MODEL MLX-M Plus LED

MAGNUS INCLINED MONOCULAR MICROSCOPE

MODEL MLX-M Plus LED same as "MLX-M Plus" but with LED illumination.

360 degree rotatable inclined monocular observation tube with widefield eyepiece

10x (F.N.18) complete set

High-Performance Optical System

Equipped with achromatic objectives (4x, 10x, 40x, 100x oil), the MLX-M Plus LED delivers clear, high-contrast imaging across its 40x to 1000x magnification range. The fully anti-fungal treated optics ensure reliability in diverse environments, while a wide-field WF10x/18mm eyepiece broadens your field of vision for detailed examination.

Integrated Digital Imaging and Analysis

With a built-in digital camera (2MP or 5MP) and supplied analytical software, users can capture still images or record videos in full HD (1920x1080). The software supports robust image analysis, measurements, and editing, making data sharing and reporting seamless. USB 2.0 and HDMI interfaces simplify connectivity for real-time viewing and documentation.

Robust Design for Demanding Use

Constructed from heavy-duty die cast aluminum, the MLX-M Plus LED can withstand rigorous laboratory use. Its precise mechanical stage (125 x 115 mm), adjustable double slide holder, and user-friendly coaxial controls ensure stable handling and accurate specimen positioning. The microscope is designed for durability, easy maintenance, and user comfort.

FAQ's of MODEL MLX-M Plus LED:

Q: How do I connect the MLX-M Plus LED microscope to my computer?

A: You can connect the microscope to your computer using the included USB 2.0 or HDMI interface. The digital camera is compatible with Windows 7/8/10 and above, and the supplied software facilitates real-time image capture and advanced analysis.

Q: What is the benefit of the anti-fungal coating on the optics?

A: The fully anti-fungal treated optics protect the microscope lenses and components from developing fungal growth, ensuring long-lasting clarity and reliable performance even in humid environments.

Q: What magnification range does the MLX-M Plus LED provide?

A: This microscope supports a magnification range from 40x up to 1000x, achieved using its achromatic objectives (4x, 10x, 40x, and 100x oil immersion) and wide field eyepieces.

Q: When should I use the oil immersion objective on this microscope?

A: The 100x (S, Oil) objective is ideal for viewing ultra-fine details in specimens requiring high magnification and resolution. Use immersion oil as directed to ensure proper imaging when using this objective lens.

Q: What is included in the package for maintenance?

A: The MLX-M Plus LED microscope comes with spare parts such as a lamp, fuse, and power adapter, allowing for easy replacement and uninterrupted operation.

Q: How is the stage movement controlled during operation?

A: The microscope features a double-layer mechanical stage with low-positioned coaxial controls, allowing precise and smooth X-Y travel (76 x 36 mm) for easy adjustment and positioning of slides during observation.

Q: Where can this microscope be safely used or stored?

A: The MLX-M Plus LED is designed to operate safely in environments with temperatures between 5C and 40C, and up to 85% relative humidity (non-condensing). For storage, keep the microscope in temperatures between -20C and 55C to maintain optimal condition.
