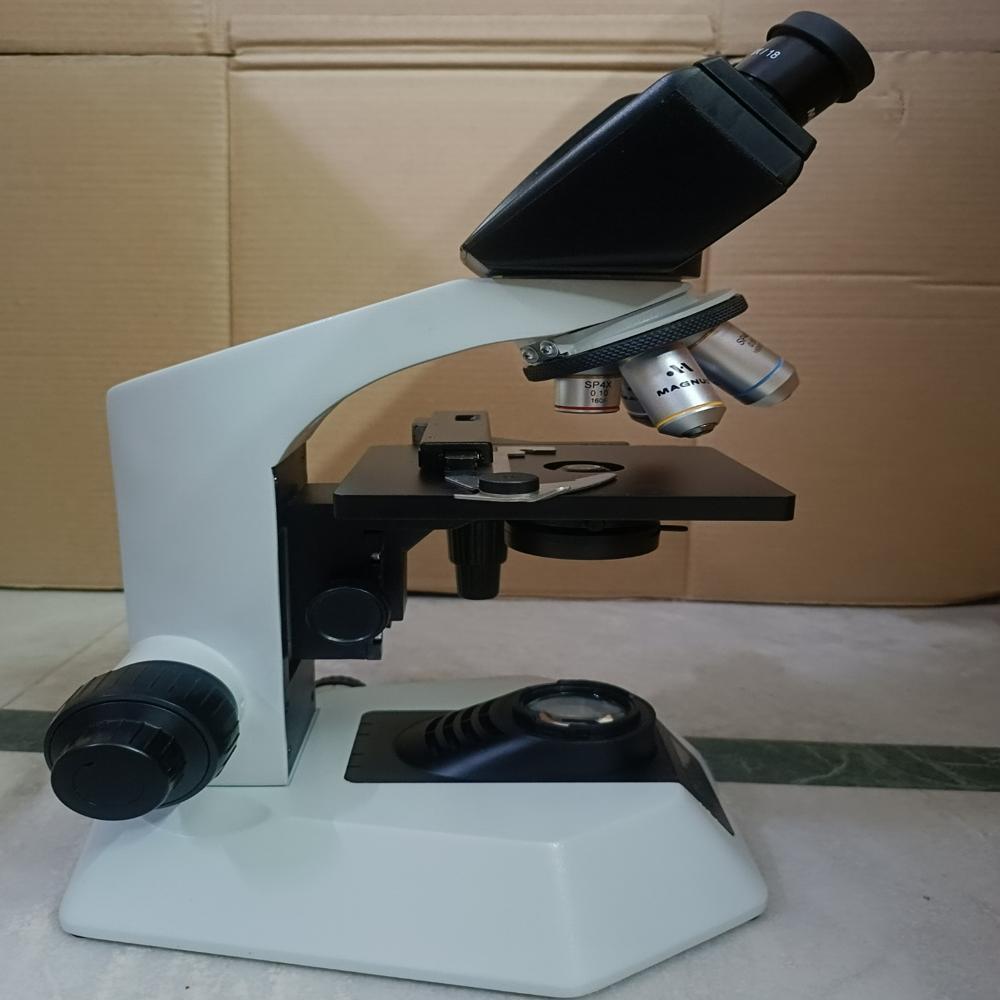

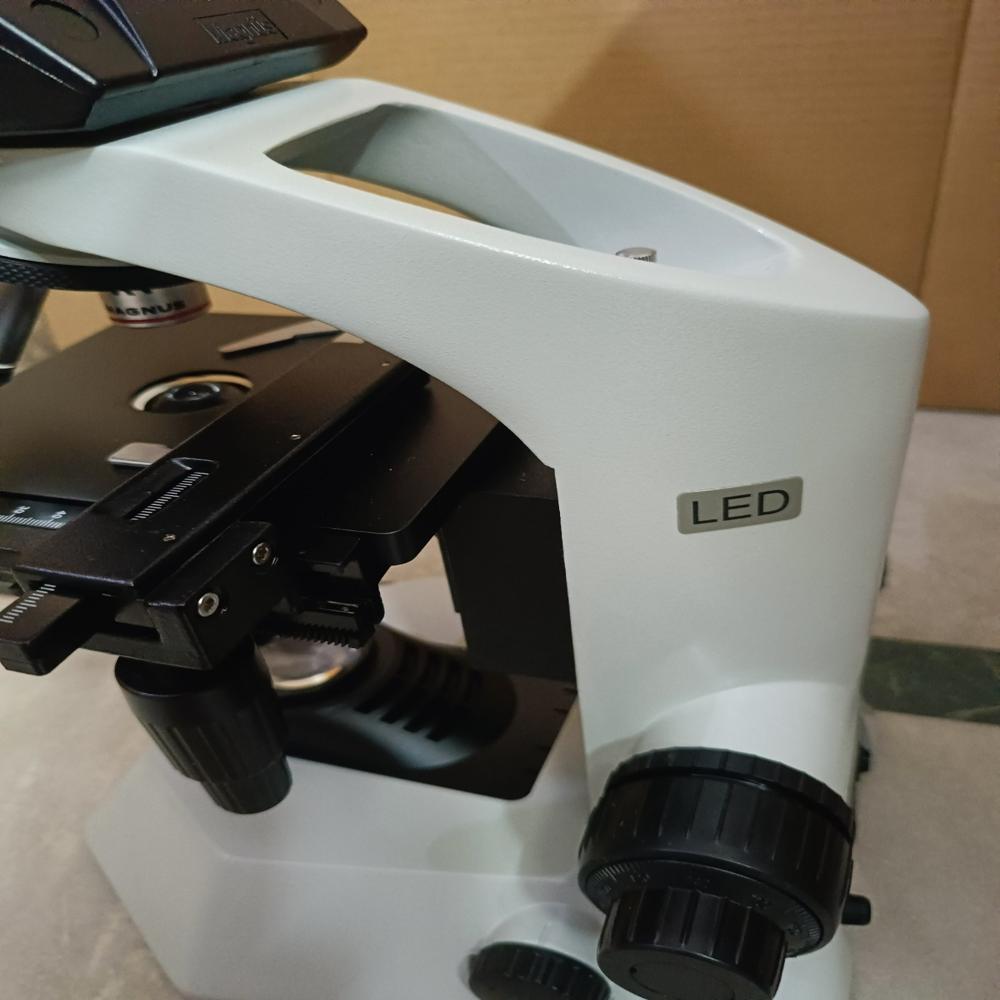

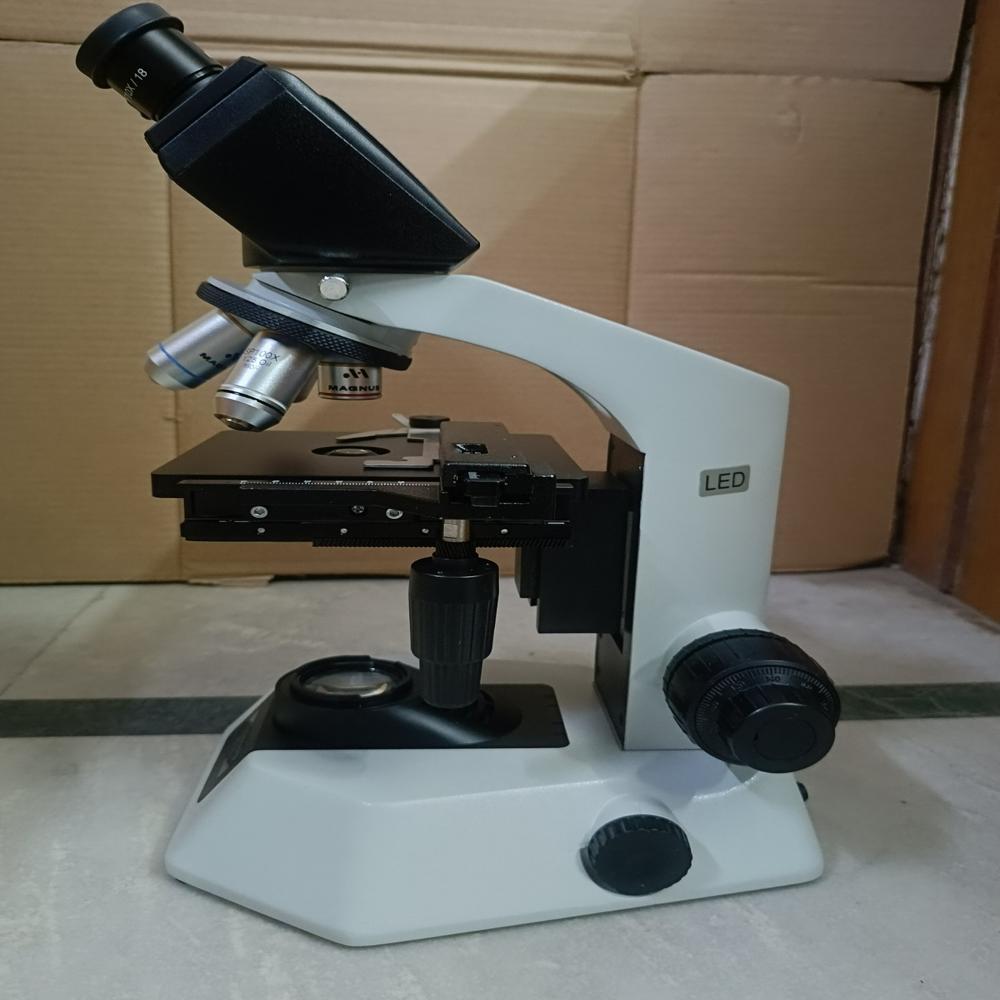

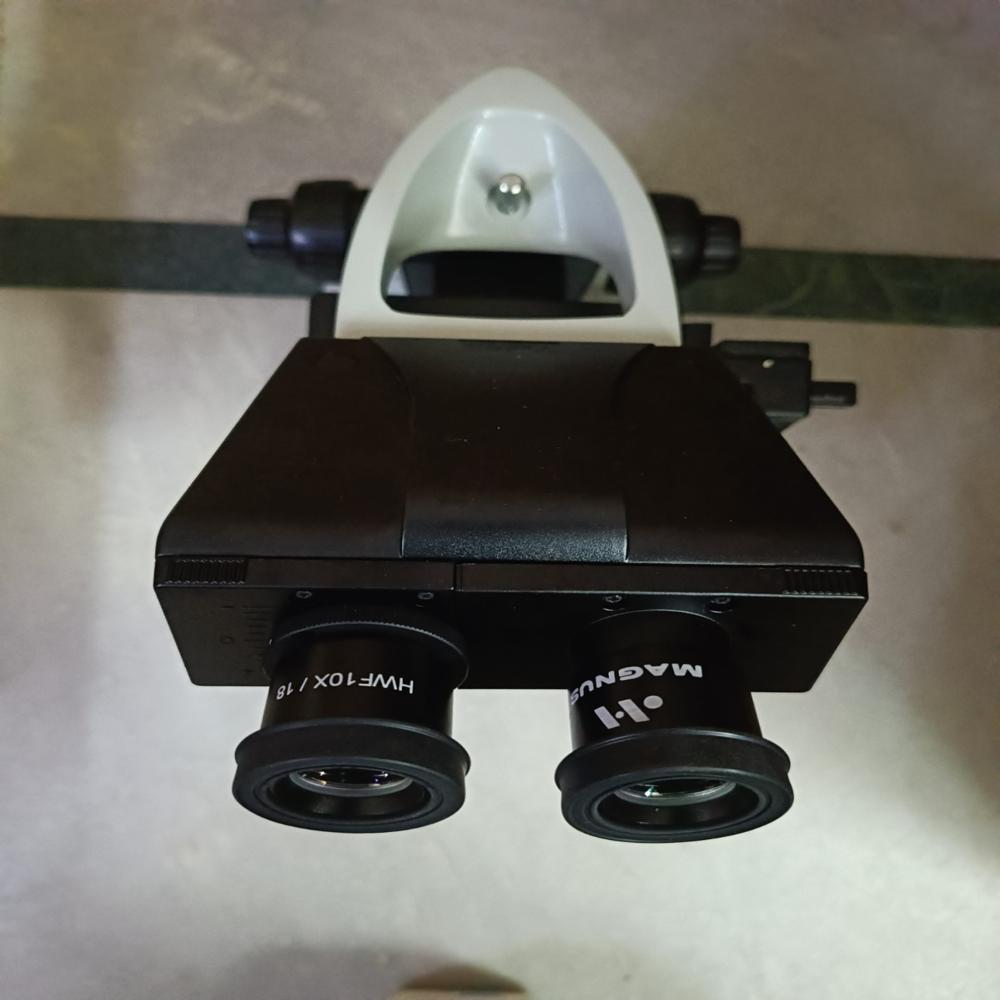

MODEL MLX-M Plus

Name: MODEL MLX-M Plus
Brand: M/S Uvsar India
Price: 36360.0 INR
Availability: InStock

Price 36360.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MODEL MLX-M Plus Specification

View Head
Monocular, 45 inclined, rotatable

Spare Parts
Stage clips, power adapter, dust cover

Focus System
Coaxial coarse & fine focus

Features
User-friendly operation, energy efficient, precision optics, USB connectivity

Theory
Monocular Laboratory Microscope with integrated camera

Drawtube
Monocular, 45 inclined, 360 rotatable

Sensor
CMOS high resolution digital sensor

Resolution
Camera: 2.0 MP

Interface
USB 2.0, Plug and Play

Frame Rate
30 fps at 640x480

Focal Distance
160 mm mechanical tube length

Magnification
40X to 1000X

Dimensions
220 x 150 x 340 mm

Focus Range
Coarse and fine focusing system

Eyepieces
WF10X, WF16X

Eyepiece Tube
Monocular, 45 inclination, 360 rotation

Illumination
LED lamp with adjustable brightness

Coarse Adjustment Range
20 mm

Fine Adjustment Range
0.002 mm minimum graduation

Working Stage
120 x 120 mm with double slide holder

Still Image Capture Resolution
1600 x 1200 pixels

Video Capture Resolution
640 x 480 pixels

Image Format
JPG, BMP

Interpupillary Distance
N/A (monocular)

Objective Achromatic
4X, 10X, 40X (SL), 100X (SL, oil immersion)

Condenser
NA1.25 Abbe condenser, vertical movement, with iris diaphragm

Light Source
3W LED lamp, rechargeable, with variable light intensity

Body Material
Sturdy metal body with anti-rust coating

Power Supply
Rechargeable battery and AC adapter

Color
White and black finish

Stage Movement
Mechanical stage with X-Y movement (70 x 30 mm travel)

Digital Camera Software
Included software for image and video capture, Windows compatible

Objective Turret
Backward quadruple nosepiece

MODEL MLX-M Plus Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Week

About MODEL MLX-M Plus

MODEL MLX-M Plus standard set complete with co-axial coarse and fine focus drive with focus

stop, built-in 6V20W halogen light illumination with regulated intensity control, movable condenser

drive, Abbe Condenser 1.25 NA with Aperture iris diaphragm, Right hand control coaxial Mechanical

Stage with coaxial X & Y drive including slider holder, paracentric quadruple ball bearing nosepiece,

high resolution long barrel Semi Plan Achromatic objectives 4x, 10x, 40x (spring) and 100x (spring,

oil immersion), 360 degree rotatable inclined monocular observation tube with widefield eyepiece

10x (F.N.18) complete set

Precision Optics and Versatile Imaging

Equipped with achromatic objectives (4X, 10X, 40X SL, 100X SL oil), the MLX-M Plus delivers stunning resolution across a broad magnification range. Its integrated CMOS camera allows efficient image and video capture, supporting both JPG and BMP formats. Process your visual data easily with the included Windows-compatible software.

User-Friendly and Durable Design

Constructed with a sturdy metal frame and anti-rust coating, this monocular microscope ensures longevity and reliability. Coarse and fine focusing, 45 inclined and 360 rotatable drawtube, and mechanical stage with X-Y controls, make it highly accessible for users of all levels.

Flexible Power and Illumination Options

Power your workflow efficiently using the rechargeable battery or AC adapter. The adjustable 3W LED lamp offers variable brightness, supporting prolonged observation sessions and diverse lighting conditions in both field and lab.

FAQ's of MODEL MLX-M Plus:

Q: How do I connect the digital camera to my computer for image or video capture?

A: Simply connect the microscope via the included USB 2.0 interface to your Windows computer. Use the supplied software for easy plug-and-play image and video capturing. No extra drivers or setup are required.

Q: What benefits does the anti-rust coated metal body offer?

A: The sturdy metal body with an anti-rust coating increases the microscope's durability and prolongs its lifespan, making it suitable for demanding laboratory or educational environments where moisture and handling are routine.

Q: When should I use the oil immersion objective for best results?

A: Utilize the 100X (SL, oil immersion) objective when you need to observe specimens at the highest magnification and resolution. Always use immersion oil with this lens to achieve sharp, clear images at 1000X magnification.

Q: Where can I adjust the LED illumination brightness?

A: The brightness of the built-in 3W LED lamp can be easily controlled using the variable intensity dial located on the microscope base. This allows you to match lighting to your specimen's needs.

Q: What is the recommended process for capturing still images and videos?

A: After connecting to your Windows PC via USB, launch the included software. Select the desired resolution (still images at 1600 x 1200 pixels, videos at 640 x 480 pixels) and capture your observations directly within the software interface.

Q: How does the coaxial coarse and fine focus system enhance usage?

A: The coaxial coarse and fine focus controls allow smooth, precise adjustments, helping you quickly locate your specimen with the coarse knob and then fine-tune for sharp focus using the fine knob. This dual adjustment system is essential for observing details at higher magnifications.

Q: What spare parts are included and how can they be used?

A: The package includes stage clips, a power adapter, and a dust cover. Stage clips secure slides during observation, the power adapter ensures continuous power supply, and the dust cover protects the microscope from contaminants when not in use.
