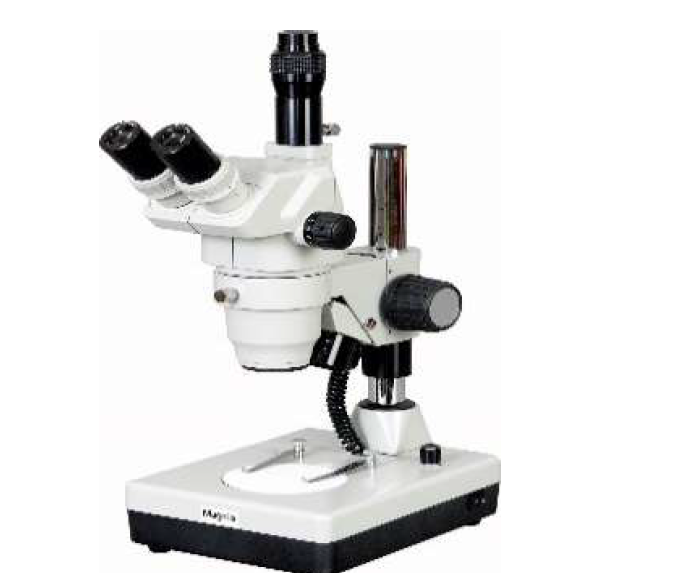

Send InquiryMAGNUS ZOOM STEREO TRINOCULAR MICROSCOPE MODEL TMSZ PLUS
Price 125000.0 INR/ Piece
MOQ : 1 Piece
MAGNUS ZOOM STEREO TRINOCULAR MICROSCOPE MODEL TMSZ PLUS Specification
- Spare Parts
- Dust cover, Power cord, Stage plate
- Features
- Sharp three-dimensional images, Wide zoom range, Long working distance, Trinocular head for camera attachment
- View Head
- Trinocular, 45 inclined, rotatable 360
- Focus System
- Rack and Pinion with Tension Adjustment
- Theory
- Zoom Stereo Trinocular Microscope
- Drawtube
- Trinocular
- Focal Distance
- 100 mm
- Magnification
- 7x to 45x (Zoom Ratio 6.4:1)
- Focus Range
- 90 mm
- Eyepieces
- Wide Field 10x/20 mm (Paired)
- Eyepiece Tube
- Trinocular, 45 inclined
- Illumination
- Incident and transmitted LED, adjustable intensity
- Coarse Adjustment Range
- 90 mm
- Working Stage
- Rectangular, 185 x 145 mm with Frosted Glass Plate & Stage Clips
- Interpupillary Distance
- 54 mm to 76 mm adjustable
- Objective Achromatic
- Zooming objectives 0.7x - 4.5x
- Light Source
- LED Incident & LED Transmitted
- Head Rotation
- 360 rotatable for convenient viewing
- Auxiliary Objectives Compatibility
- Accepts optional 0.5x, 2x auxiliary lenses
- Camera Port
- Trinocular port for digital camera
- Anti-fungal Coating
- Present on optical elements
- Body Material
- Robust metal construction
- Diopter Adjustment
- Present on both eyepieces
- Power Supply
- AC 100V~240V, 50/60Hz
- LED Life
- Approx. 50,000 hours
- Stage Plate
- Frosted glass plate and black/white contrast plate supplied
- Weight
- Approx. 6.5 kg
MAGNUS ZOOM STEREO TRINOCULAR MICROSCOPE MODEL TMSZ PLUS Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 5 Week
About MAGNUS ZOOM STEREO TRINOCULAR MICROSCOPE MODEL TMSZ PLUS
MAGNUS ZOOM STEREO TRINOCULAR MICROSCOPE
MODEL TMSZ PLUS having greenough optical system, 45 degree inclined trinocular observation
tube, having Zoom Ratio 1:6.7, Objective Zoom Range 0.75x-5x (Magnification Range :7.5x - 50x
with 10x eyepiece), Paired Widefield Eyepieces 10x/23mm, working distance 110mm, with in-built
Light Stand (Incident : 3W LED & Transmitted 3W LED), black & white plate & frosted glass plate
included in Standard set.
Versatile Viewing with Rotatable Trinocular Head
Enjoy uninterrupted observations with the 360-degree rotatable trinocular head, allowing convenient sharing and multiple viewing angles. The 45 inclined design ensures comfortable posture during extended use. The trinocular port makes it effortless to attach a digital camera for documentation or image analysis.
Superior Optical Performance and Wide Magnification Range
Featuring achromatic zoom objectives (0.7x-4.5x) and wide field 10x/20 mm eyepieces, this microscope offers a smooth zoom ratio of 6.4:1 with magnifications from 7x to 45x. Both eyepieces have diopter adjustment, and interpupillary distance is fully adjustable (54-76mm), accommodating a wide range of users.
Long-lasting Illumination, Robust Construction
Dual LED light sources provide adjustable incident (top) and transmitted (bottom) illumination, ideal for both opaque and transparent specimens. The LEDs last approximately 50,000 hours. A rugged metal body ensures stability, while anti-fungal coatings protect optical components for long-term reliability.
FAQ's of MAGNUS ZOOM STEREO TRINOCULAR MICROSCOPE MODEL TMSZ PLUS:
Q: How do I attach a digital camera to the MAGNUS ZOOM STEREO TRINOCULAR MICROSCOPE TMSZ PLUS?
A: The microscope features a dedicated trinocular port, allowing straightforward digital camera integration. Simply secure your compatible camera to the port for real-time image capture and documentation.Q: What benefits does the 360-degree rotatable head provide?
A: The 360 rotatable head offers convenient viewing from any position, facilitating shared use or demonstrations. This flexibility is particularly useful in collaborative environments or training settings.Q: When should I use the frosted glass plate versus the black/white contrast plate on the stage?
A: The frosted glass plate is best for transmitted light observation of transparent samples, while the black/white plate enhances contrast for opaque specimens when using incident illumination.Q: Where can I use this microscope in terms of power compatibility?
A: The TMSZ PLUS operates on a wide AC power range (100V-240V, 50/60Hz), making it suitable for use in laboratories, classrooms, and industrial spaces around the world.Q: How does the anti-fungal coating benefit the optical elements?
A: The anti-fungal treatment protects lenses and optics from fungal growth, ensuring clear, high-quality images and prolonging the instrument's performance, even in humid environments.Q: What is the process to adjust the magnification on this microscope?
A: To adjust magnification, rotate the zoom knob to shift smoothly between 7x and 45x. For further flexibility, optional auxiliary objectives (0.5x or 2x) can be added to widen or narrow the magnification range as needed.
